Fiber-Optic CablesNF Series Heat resistant type
Heat-resistant Fiber-Optic Cables available for various ambient temperatures
- A wide lineup supporting temperatures up to 350°C
- Free cut types available NF-TH06 will be discontinued by March 2025. NF-TH11 will be discontinued by March 2025.
Non-protruding cables
Because the cables of NF25-DH and NF25-TH heat resistant nut type Fiber-Optic Cables do not protrude even when mounted to the conveyer side, no extra space is needed. Also, they eliminate worries regarding cable breakage caused by snagging on tools during work.

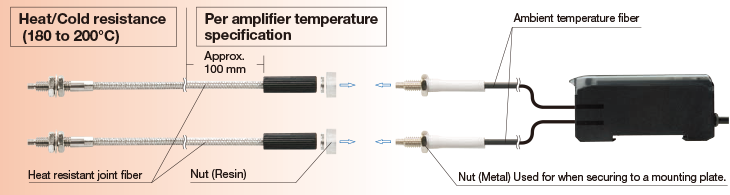

New concept joint type
By using joints for the free cut ordinary temperature fiber and heat resistant fiber, it is easy to attach/remove the fibers, and makes it possible to adjust the fiber length.

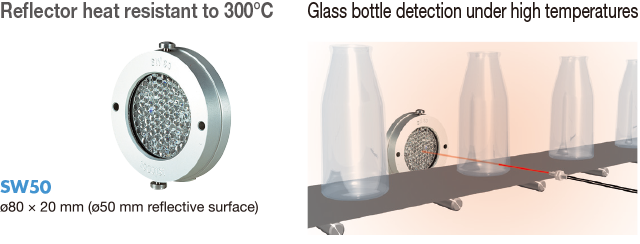

Heat resistant reflector
-
Possible to detect as retro-reflective type if the SW50 heat resistant reflector is used for the heat resistant diffuse type Fiber-Optic Cables.
Demonstrates its strength in transparent object detection under high temperatures. -

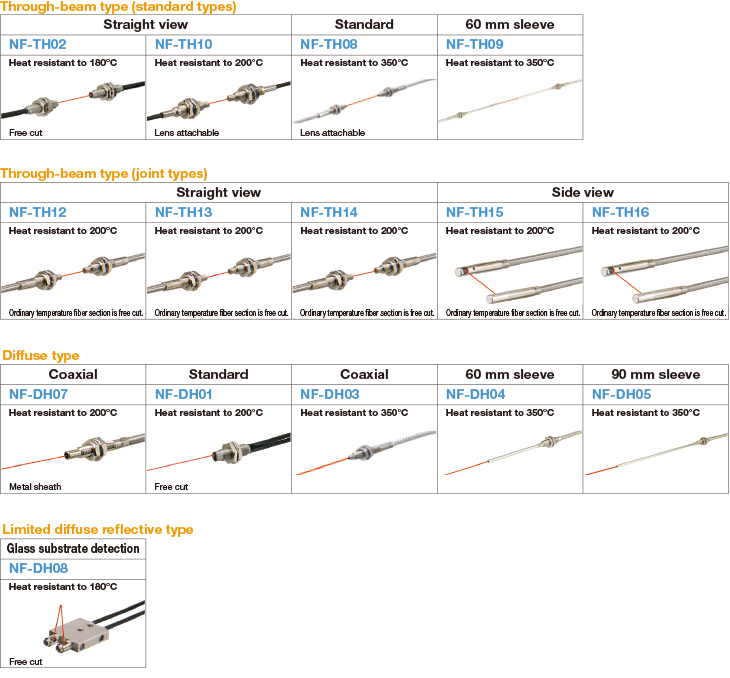

Various selection
Through-beam types are available in standard and new joint types.
The lineup of heat-resistant Fiber-Optic Cables also includes diffuse types usable in a variety of situations, and limited diffuse reflective types for glass substrate detection.
