Fiber UnitEASY MOUNTING Series

DOWNLOAD

Square type with mounting hole that can be installed easily

  • An adjustable mounting type that switches between Head ON/Side ON switchable type is also available
  • Head ON, Side ON and Flat ON types are available.
  • Bending radius of R1 mm or R4 mm
EASY MOUNTING Series

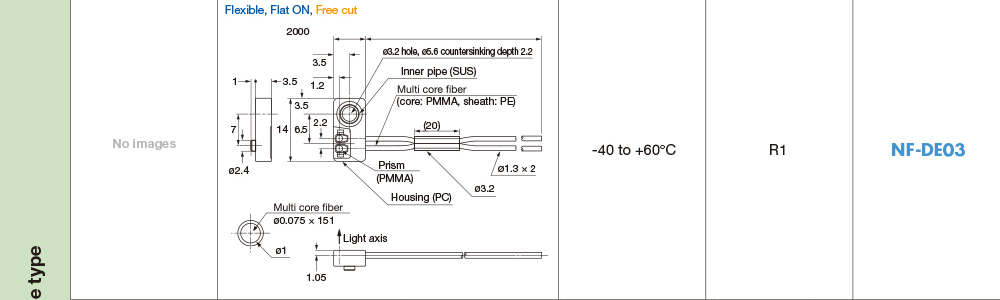

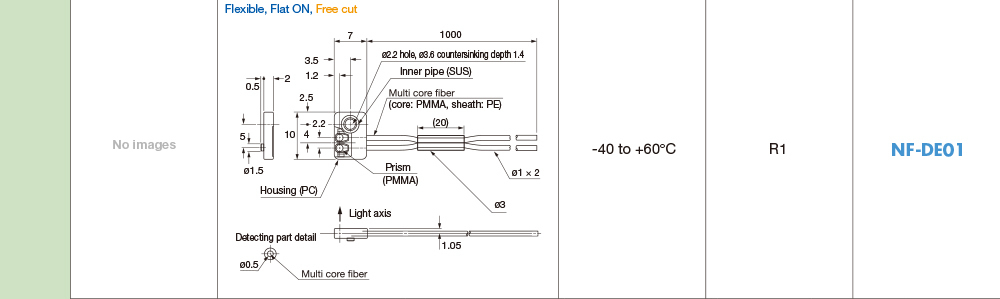

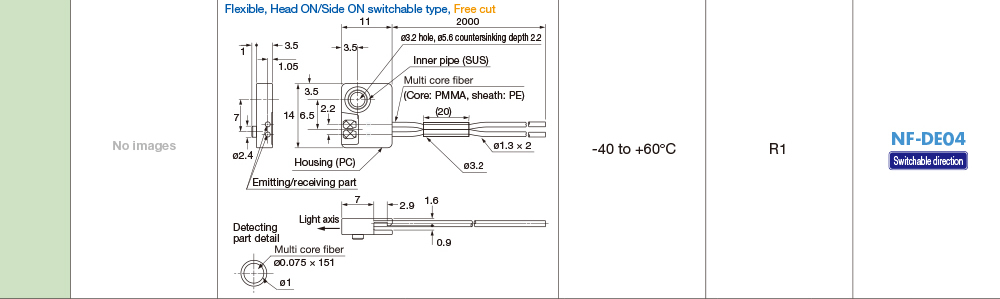

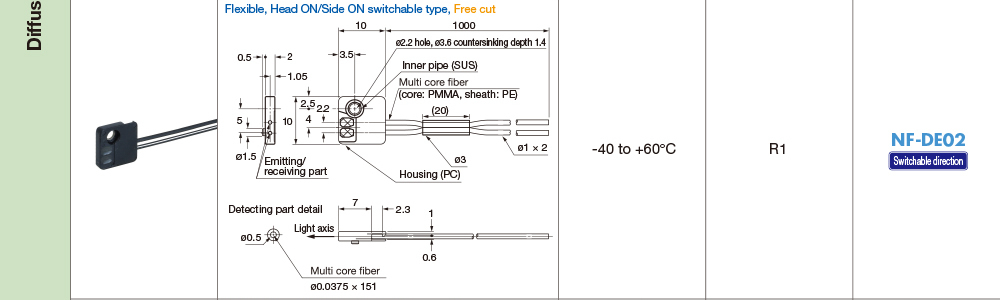

Easy mounting fiber units (diffuse type)

Download of Sensing Distance List.

●The sensing distances for the diffuse type fiber units are values on 500 ☓ 500 mm white paper.
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
