Models

Type	Model	Shape of fiber head [mm]	Optical axis direction	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]
Flat Glass substrate detection Presence detection	NF-DC38		Flat view	2 m Free-cut	R10	-40 ... +60
	NF-DC07		Flat view	2 m Free-cut	R10	-40 ... +60

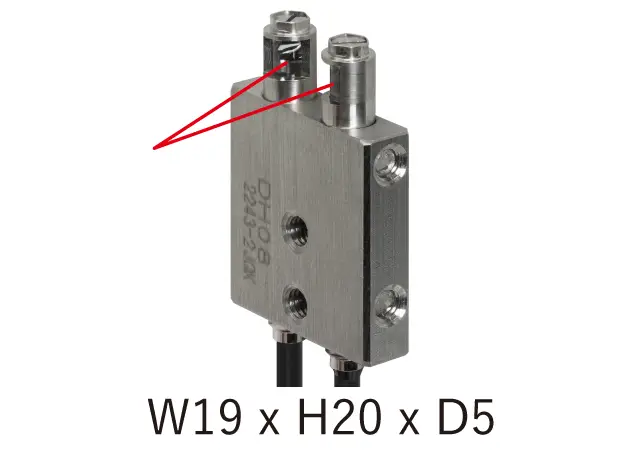

	NF-DH08		Flat view	2 m Free-cut	R25	-60 ... +180*1
Flat Glass substrate detection Wafer mapping	NF-DC03		Straight view	4 m Free-cut	R25	-40 ... +60
Flat	NF-DC39		Flat view	2 m Free-cut	R10	-40 ... +60
Flat Ultra-small	NF-DC08		Flat view	1 m Free-cut	R1	-20 ... +60
Square	NF-DC09		Straight view	2 m Free-cut	R10	-40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
*1. Light intensity retention rate of 85% or higher after 1,000 hours of continuous use.
