Specifications
| Part No. | 51631 |
|---|---|

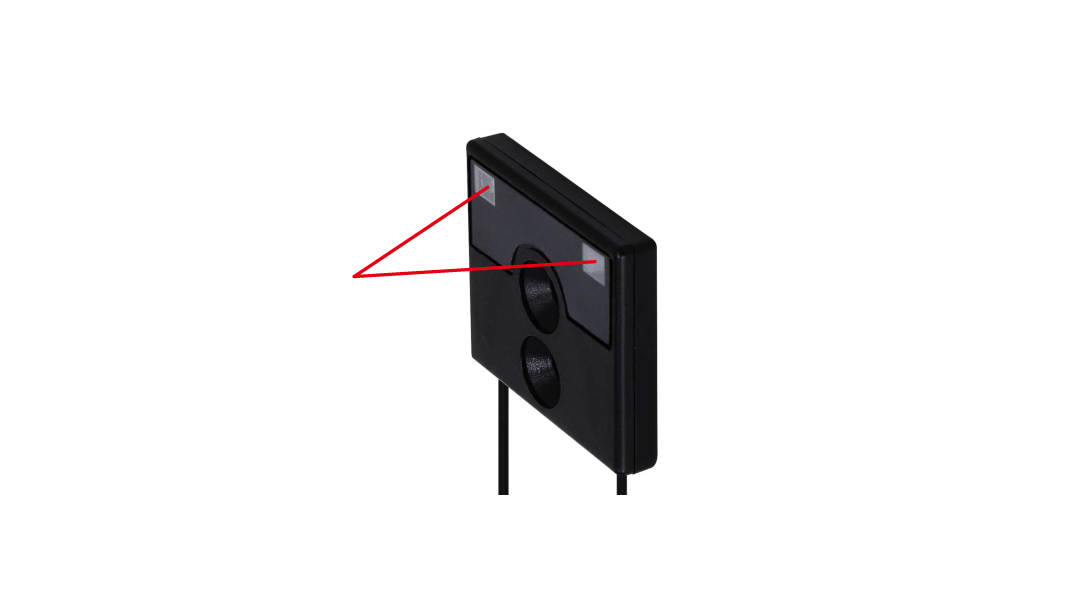

| Model | NF-DC07 |
| Category | Limited diffuse-reflective type |
| Type |
Flat Glass substrate detection Presence detection |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Flat view |
| Shape of fiber head | W24 x H21 x D4 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 5 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3.4 ... 25.9 (8 ms) 3.4 ... 22.0 (2 ms) 3.6 ... 18.8 (1 ms) 3.6 ... 17.9 (500 μs) 3.7 ... 17.1 (250 μs) 4.1 ... 15.9 (70 μs) 5.4 ... 13.9 (16 μs/22 μs) |
|
3.4 ... 25.9 (4 ms) 3.6 ... 18.8 (1 ms) 3.7 ... 17.1 (250 μs) 5.3 ... 15.6 (50 μs) |
● The values on 500 x 500 mm white paper

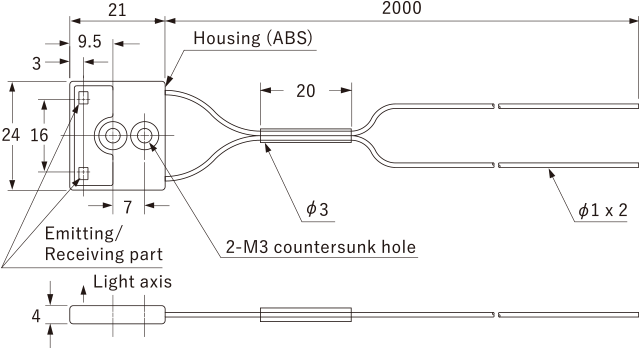

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
