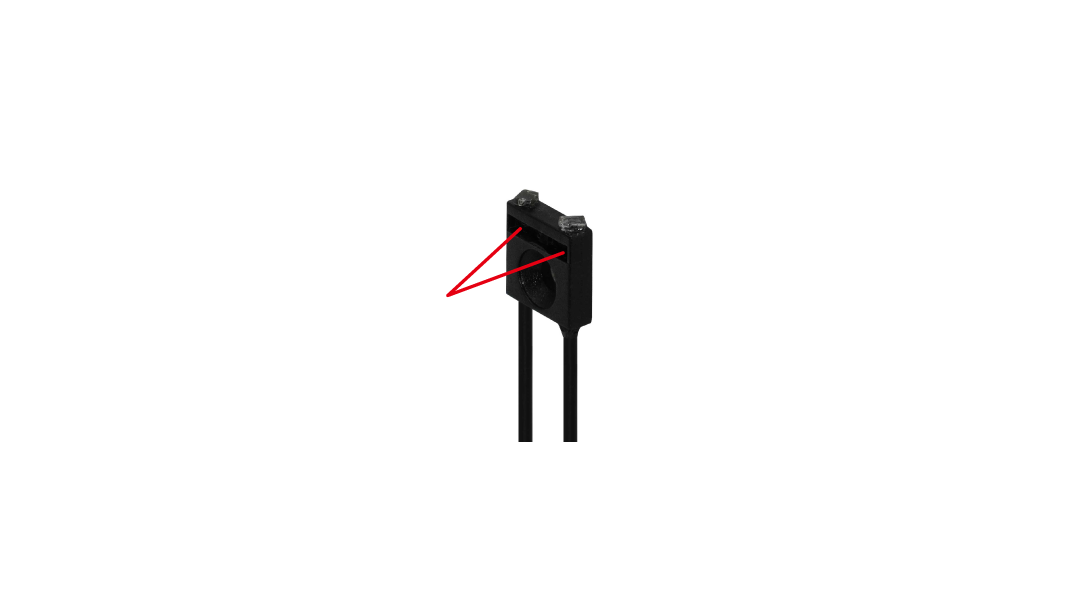

Specifications
| Part No. | 51632 |
|---|---|
| Model | NF-DC08 |
| Category | Limited diffuse-reflective type |
| Type |
Flat Ultra-small |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Flat view |
| Shape of fiber head | W7.2 x H7 x D2 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 1 mm |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-20 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 2 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
0 ... 15.8 (8 ms) 0 ... 12.6 (2 ms) 0 ... 10.8 (1 ms) 0 ... 10.1 (500 μs) 0 ... 9.5 (250 μs) 0 ... 8.2 (70 μs) 0.9 ... 5.6 (16 μs/22 μs) |
|
0 ... 15.8 (4 ms) 0 ... 10.8 (1 ms) 0 ... 9.5 (250 μs) 0.9 ... 7.3 (50 μs) |
● The values on 500 x 500 mm white paper

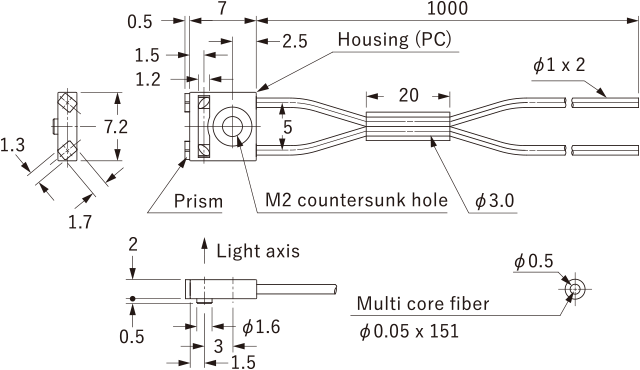

Dimensions
Unit: mm
Mounting Method
-

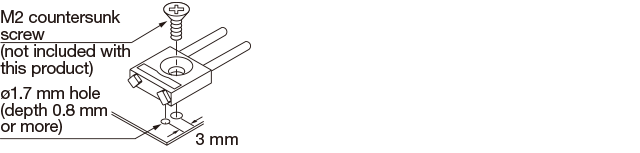

- Use an M2 countersunk screw (not included with this product). The positioning boss insertion holes on the bottom surface need to be ø1.7 mm and at least 0.8 mm deep.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
Correct Use
