Specifications
| Part No. | 17009 |
|---|---|

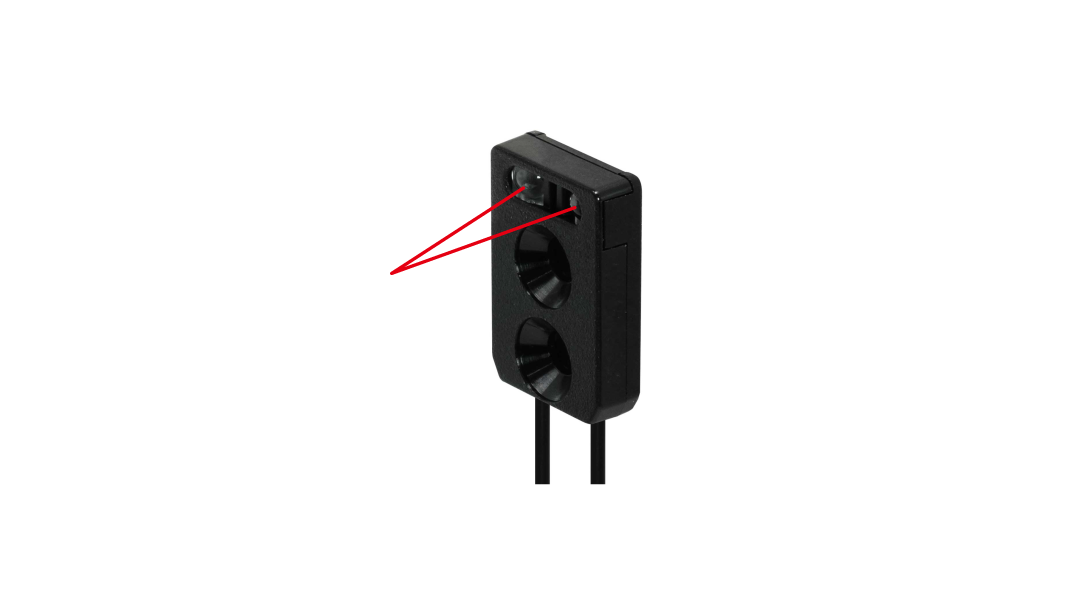

| Model | NF-DC38 |
| Category | Limited diffuse-reflective type |
| Type |
Flat Glass substrate detection Presence detection |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Flat view |
| Shape of fiber head | W12 x H18 x D4 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
0 ... 67 (8 ms) 0 ... 60 (2 ms) 0 ... 42 (1 ms) 0 ... 36 (500 μs) 0 ... 31 (250 μs) 0 ... 22 (70 μs) 2.4 ... 10 (16 μs/22 μs) |
|
0 ... 59 (4 ms) 0 ... 35 (1 ms) 0 ... 26 (250 μs) 0 ... 12 (50 μs) |
● The values on 500 x 500 mm white paper

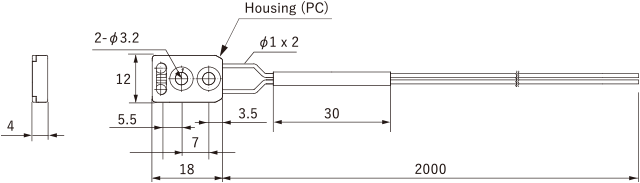

Dimensions
Unit: mm
