Specifications
| Part No. | 17010 |
|---|---|
| Model | NF-DC39 |
| Category | Limited diffuse-reflective type |
| Type | Flat |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Flat view |
| Shape of fiber head | W12 x H18 x D4.3 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
0 ... 20.4 (8 ms) 0 ... 16.6 (2 ms) 0 ... 12.5 (1 ms) 0 ... 11.5 (500 μs) 0 ... 10.6 (250 μs) 0 ... 8.0 (70 μs) 0 ... 4.5 (16 μs/22 μs) |
|
0 ... 20.4 (4 ms) 0 ... 12.5 (1 ms) 0 ... 10.6 (250 μs) 0 ... 7.9 (50 μs) |
● The values on 500 x 500 mm white paper

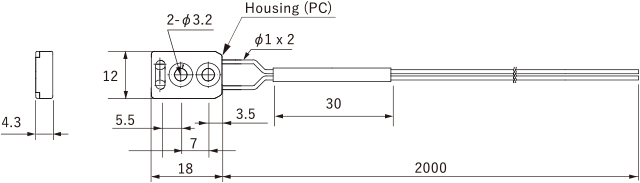

Dimensions
Unit: mm
Correct Use
