Specifications
| Part No. | 51648 |
|---|---|
| Model | NF-DH08 |
| Category | Limited diffuse-reflective type Heat resistant type |
| Type | Flat Glass substrate detection Presence detection |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Flat view |
| Shape of fiber head | W19 x H20 x D5 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature | -60 ... +180°C*1 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 40 g |
| Included items | Fiber cutter |
- *1.Light intensity retention rate of 85% or higher after 1,000 continuous use.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
 |
0 ... 75 (8 ms) 0 ... 75 (2 ms) 0 ... 68 (1 ms) 0 ... 66 (500 μs) 0 ... 64 (250 μs) 0 ... 55 (70 μs) 0 ... 21 (16 μs/22 μs) |
 |
0 ... 75 (4 ms) 0 ... 68 (1 ms) 0 ... 64 (250 μs) 0 ... 33 (50 μs) |
● The values on 500 x 500 mm white paper

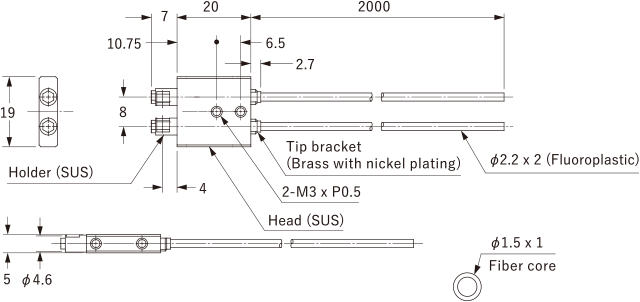

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
