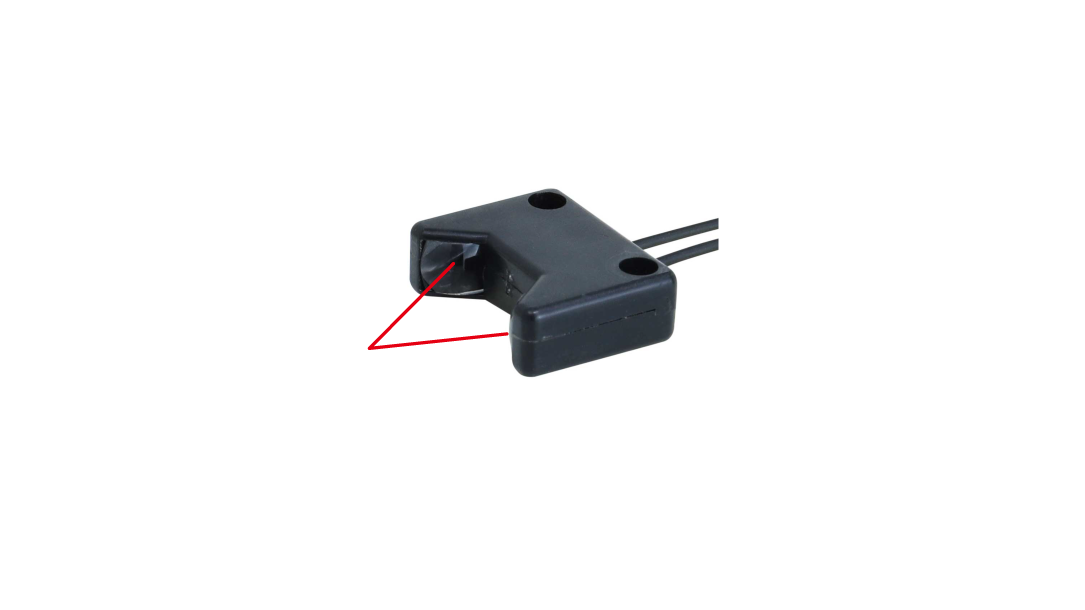

Specifications
| Part No. | 51633 |
|---|---|
| Model | NF-DC09 |
| Category | Limited diffuse-reflective type |
| Type | Square |
| Detection method | Limited diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head | W18 x H6 x D14 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 50 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2, M2.6 Sems screw x 2, M2.6 Hex nut x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
0 ... 35 (8 ms) 0 ... 29 (2 ms) 0 ... 25 (1 ms) 0 ... 24 (500 μs) 0 ... 22 (250 μs) 0 ... 18 (70 μs) 4.9 ... 11 (16 μs/22 μs) |
|
0 ... 29 (4 ms) 0 ... 23 (1 ms) 0 ... 18 (250 μs) 2.6 ... 12.4 (50 μs) |
● The values on 500 x 500 mm white paper

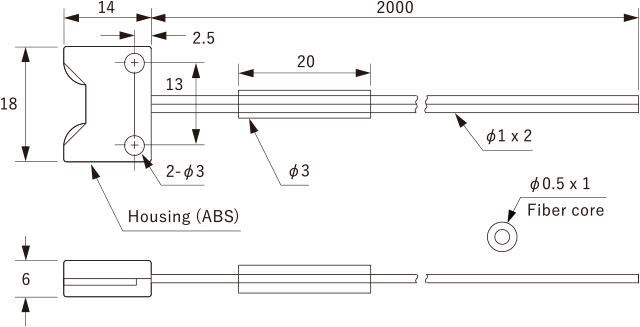

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
