Models

Type	Model	Shape of fiber head [mm]	Optical axis direction	Optical axis diameter [mm]	Fiber length	Min. bending radius [mm]	Ambien temperature [℃]
Flat	NF-TR11		Straight view	ø1.0	2 m Free-cut	R1	-40 ... +60
	NF-TR12		Side view	ø1.0	2 m Free-cut	R1	-40 ... ＋60
	NF-TE01		Flat view	ø0.5	1 m Free-cut	R1	-40 ... +60
	NF-TE03		Flat view	ø1.0	2 m Free-cut	R1	-40 ... +60

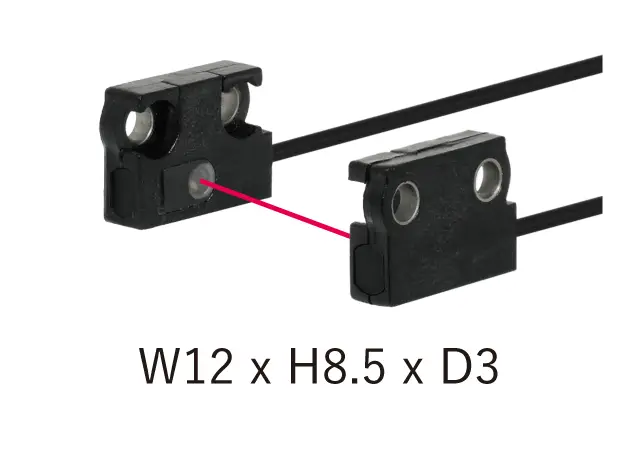

	NF-TR13		Flat view	ø1.0	2 m Free-cut	R1	-40 ... +60
	NF-TE02		Straight view/ Side view switchable type	ø0.5	1 m Free-cut	R1	-40 ... +60
	NF-TE04		Straight view/ Side view switchable type	ø1.0	2 m Free-cut	R1	-40 ... +60

●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
●The optical axis diameter is an approximate value.

Type	Model	Shape of fiber head [mm]	Optical axis direction	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]
Flat	NF-DE01		Flat view	1 m Free-cut	R1	-40 ... +60
	NF-DE03		Flat view	2 m Free-cut	R1	-40 ... +60
	NF-DE02		Straight view/ Side view switchable type	1 m Free-cut	R1	-40 ... +60
	NF-DE04		Straight view/ Side view switchable type	2 m Free-cut	R1	-40 ... +60
Square Long range detection	NF-DR09		Straight view	2 m Free-cut	R1	-40 ... +60

●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
