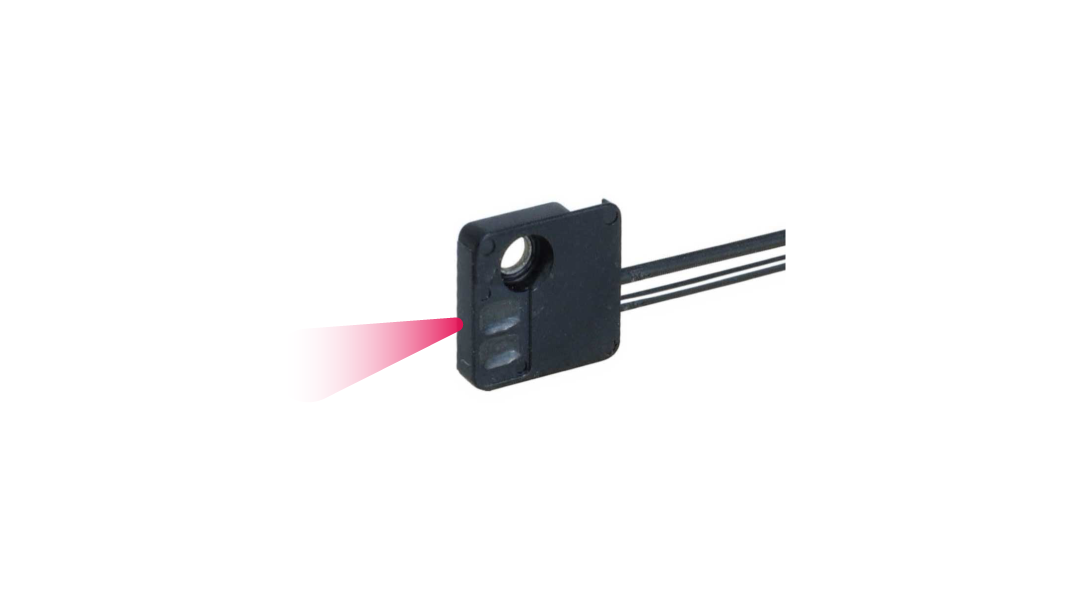

Specifications
| Part No. | 51635 |
|---|---|
| Model | NF-DE02 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type | Flat |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view/Side view switchable type |
| Shape of fiber head | W2 x H10 x D10 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 1 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 2 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2, M2 Screw x 4, Nut x 4, Plain washer x 4, Spring washer x 4 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
410 (8 ms) 270 (2 ms) 200 (1 ms) 175 (500 μs) 150 (250 μs) 105 (70 μs) 30 (16 μs/22 μs) |
|
460 (4 ms) 225 (1 ms) 150 (250 μs) 45 (50 μs) |
● The values on 500 x 500 mm white paper

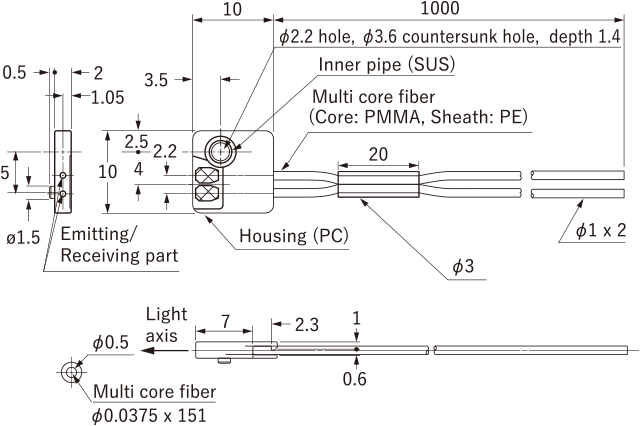

Dimensions
Unit: mm
Mounting Method
Fibers with positioning bosses
-

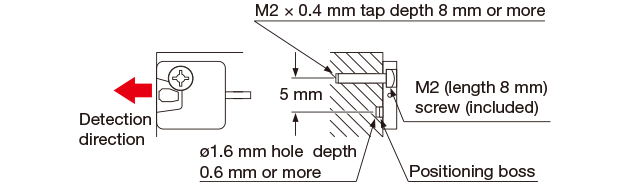

If cutting a tap into the mounting surface
-

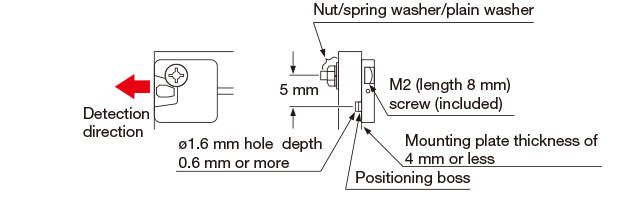

If using the included screw/nut
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
