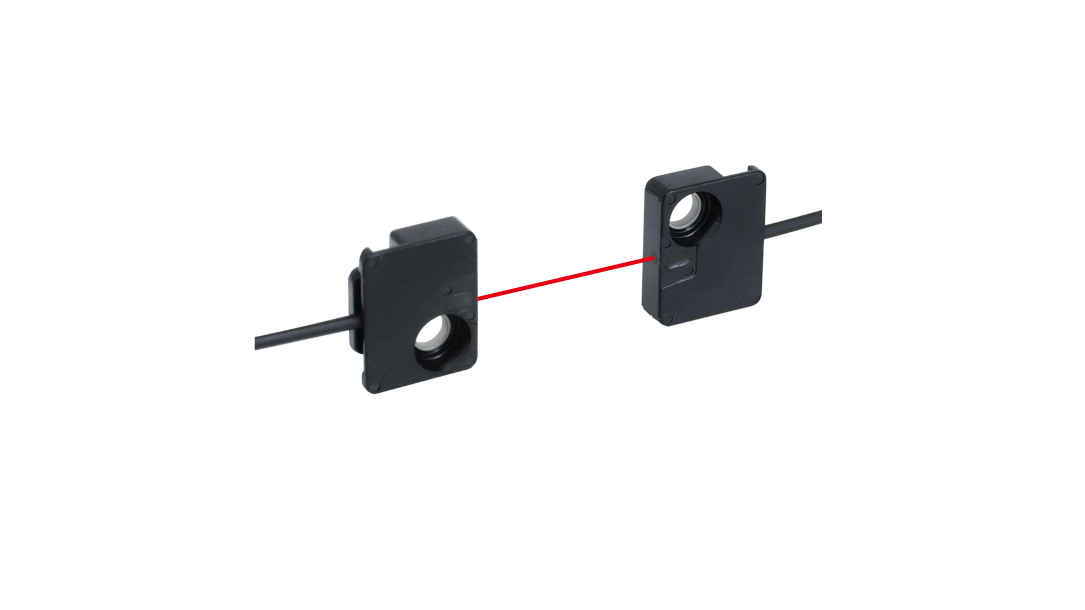

Specifications
| Part No. | 51677 |
|---|---|
| Model | NF-TE04 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type | Flat |
| Detection method | Through-beam type |
| Optical axis direction | Straight view/Side view switchable type |
| Shape of fiber head | W3.5 x H14 x D11 mm |
| Sleeve | - |
| Optical axis diameter | ø1.0 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 8 g |
| Included items | Fiber cutter, ø1.3 mm Fiber adapter x 2 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,240 (8 ms) 2,235 (2 ms) 1,605 (1 ms) 1,435 (500 μs) 1,170 (250 μs) 745 (70 μs) 255 (16 μs/22 μs) |
|
3,080 (4 ms) 1,605 (1 ms) 1,170 (250 μs) 415 (50 μs) |

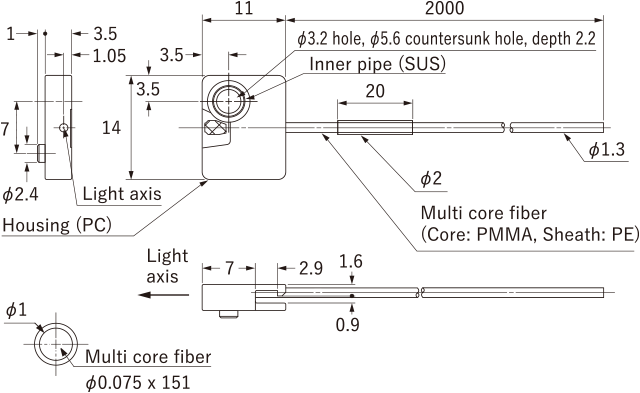

Dimensions
Unit: mm
Mounting Method
Fibers with positioning bosses
-
Note: Through-beam type fibers have the same shape. When mounting, pay attention to the positions of the mounting screw hole and positioning boss hole.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.3 mm |
 |
20189 | BF-WLL160-1.3 |
