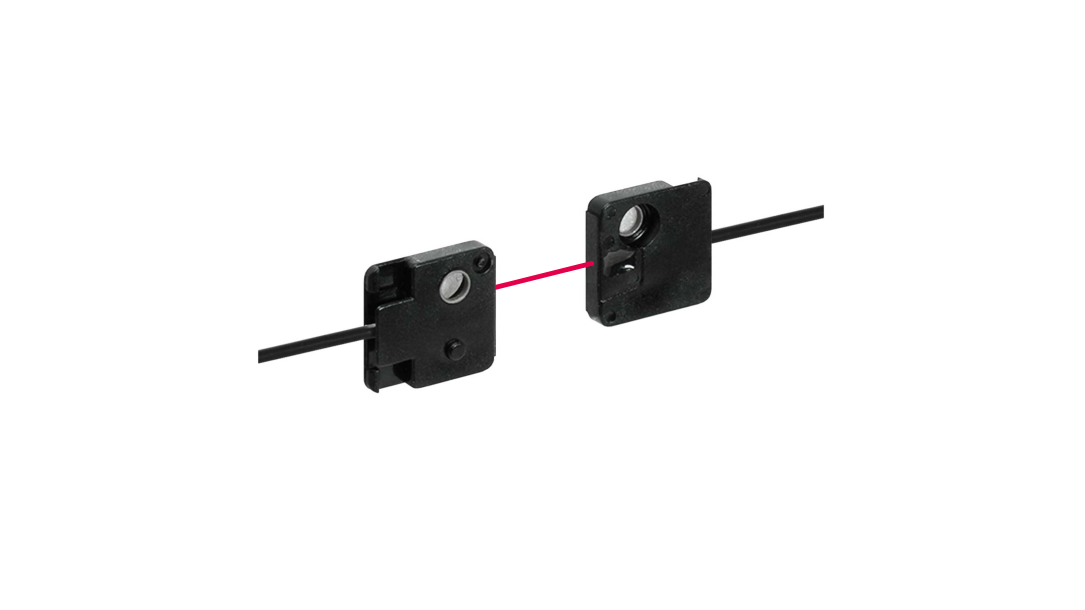

Specifications
| Part No. | 51675 |
|---|---|
| Model | NF-TE02 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type | Flat |
| Detection method | Through-beam type |
| Optical axis direction | Straight view/Side view switchable type |
| Shape of fiber head | W2 x H10 x D10 mm |
| Sleeve | - |
| Optical axis diameter | ø0.5 mm |
| Fiber length | 1 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 2 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2, M2 Screw, Nut x 4, Plain washer x 4, Spring washer x 4 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,530 (8 ms) 1,100 (2 ms) 825 (1 ms) 700 (500 μs) 600 (250 μs) 370 (70 μs) 125 (16 μs/22 μs) |
|
1,530 (4 ms) 825 (1 ms) 600 (250 μs) 215 (50 μs) |

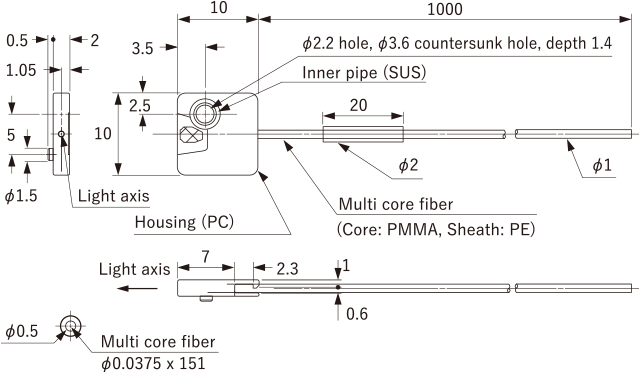

Dimensions
Unit: mm
Mounting Method
Fibers with positioning bosses
-

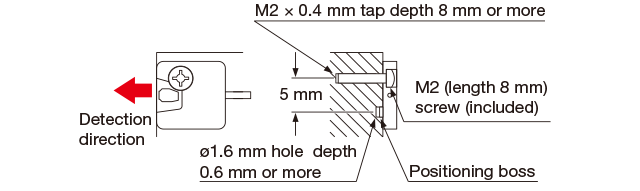

If cutting a tap into the mounting surface
-

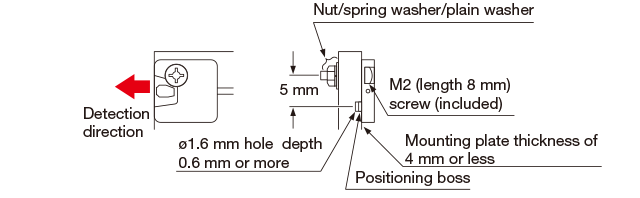

If using the included screw/nut
Note: Through-beam type fibers have the same shape. When mounting, pay attention to the positions of the mounting screw hole and positioning boss hole.
