Specifications
| Part No. | 51707 |
|---|---|
| Model | NF-TR13 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type | Flat |
| Detection method | Through-beam type |
| Optical axis direction | Flat view |
| Shape of fiber head | W12 x H8.5 x D3 mm |
| Sleeve | - |
| Optical axis diameter | ø1.0 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 7 g |
| Included items | Fiber cutter, ø1.3 mm Fiber adapter x 2, M2 Pan head screw x 4, Nut x 4, Plain washer x 4, Spring washer x 4 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,265 (500 μs) 2,710 (250 μs) 1,775 (70 μs) 595 (16 μs/22 μs) |
|
3,600 (4 ms) 3,600 (1 ms) 2,710 (250 μs) 975 (50 μs) |

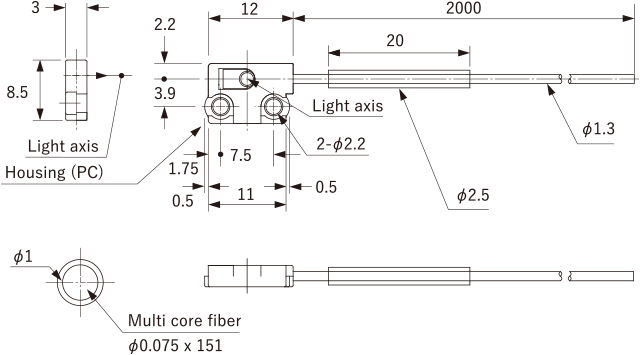

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.3 mm |
 |
20189 | BF-WLL160-1.3 |
