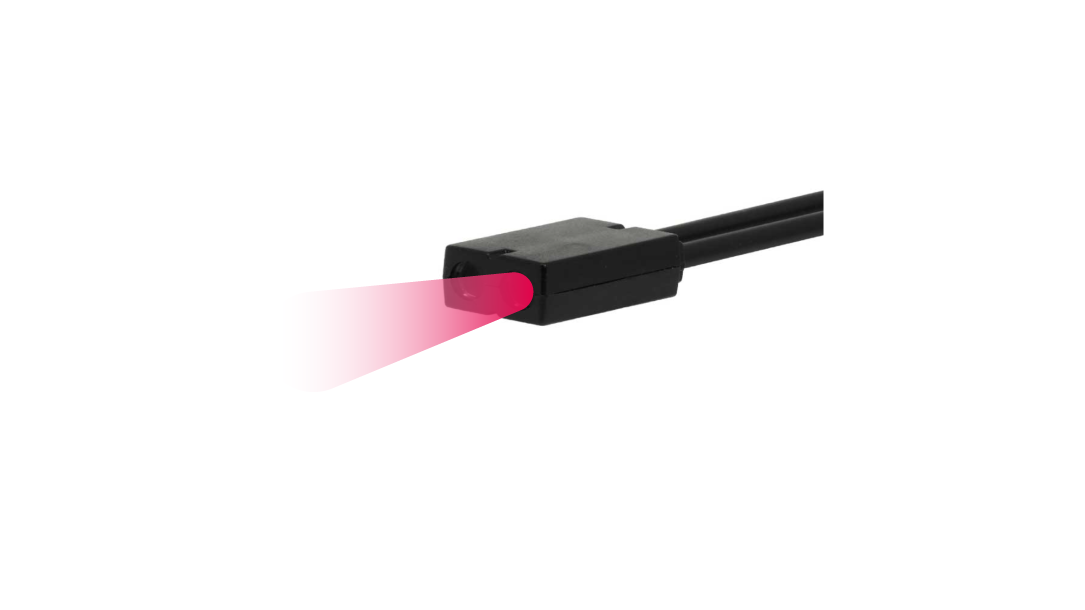

Specifications
| Part No. | 51658 |
|---|---|
| Model | NF-DR09 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type |
Square Long range detection |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head | W9.5 x H5.2 x D15mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 20 g |
| Included items | Fiber cutter, Mounting bracket |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,170 (8 ms) 2,300 (2 ms) 1,740 (1 ms) 1,665 (500 μs) 1,200 (250 μs) 760 (70 μs) 250 (16 μs/22 μs) |
|
2,480 (4 ms) 1,715 (1 ms) 1,180 (250 μs) 390 (50 μs) |
● The values on 500 x 500 mm white paper

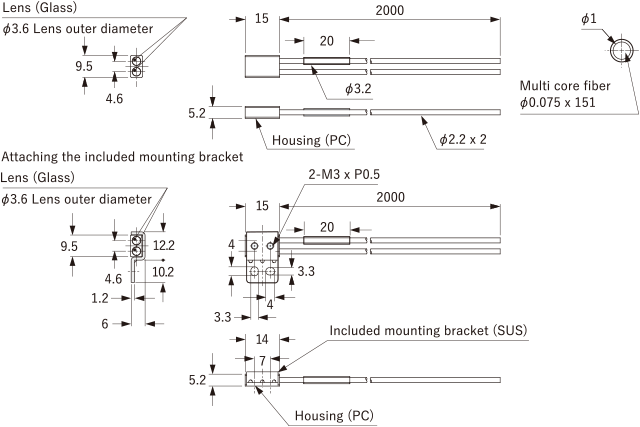

Dimensions
Unit: mm
Mounting Method
Fibers with positioning bosses
-

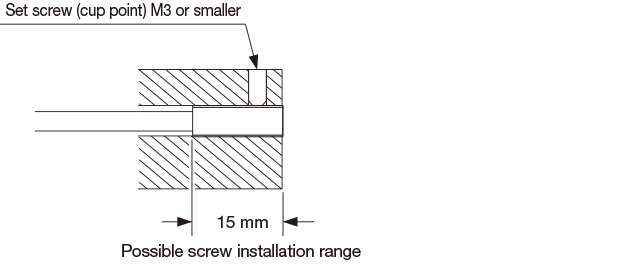

If not using the included mounting bracket
- Using a set screw (cup point of M3 or smaller), mount within 15 mm of head portion bracket edge.
-

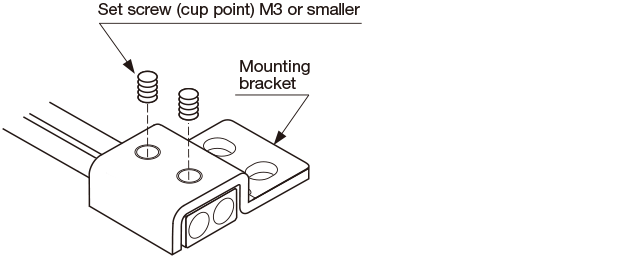

If using the included mounting bracket
- The head portion can be secured even without use of a set screw.
- If using a set screw, secure using a set screw with an M3 cup point.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
