Specifications
| Part No. | 51637 |
|---|---|
| Model | NF-DE04 |
| Category |
Flat/Square type Flexible type (R1 mm, R2 mm) |
| Type | Flat |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view/Side view switchable type |
| Shape of fiber head | W14 x H11 x D3.5 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 8 g |
| Included items | Fiber cutter, ø1.3 mm Fiber adapter x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
980 (8 ms) 700 (2 ms) 555 (1 ms) 515 (500 μs) 440 (250 μs) 275 (70 μs) 95 (16 μs/22 μs) |
|
980 (4 ms) 555 (1 ms) 440 (250 μs) 145 (50 μs) |
● The values on 500 x 500 mm white paper

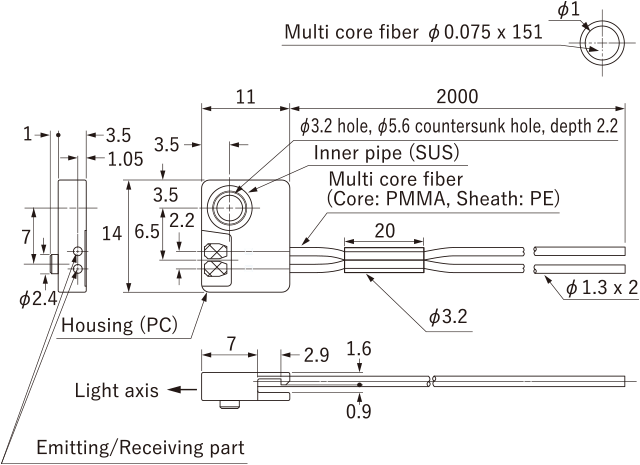

Dimensions
Unit: mm

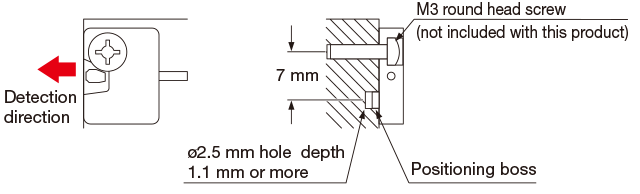

Mounting Method
Fibers with positioning bosses
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |

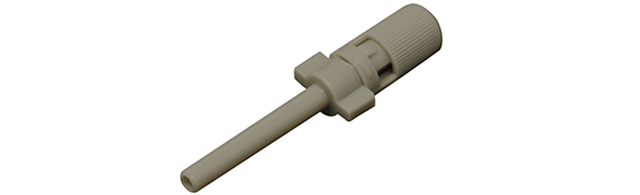

| Fiber adapter ø1.3 mm |
 |
20189 | BF-WLL160-1.3 |
