Specifications
Technical Data
| Model | TI-S30 | |
|---|---|---|
| Measurement range*1 | −40 ... +500°C | |
| Display range*1 | -50 ... +510°C | |
| Field of view | ø30 mm at 500 mm | |
| Optics | Silicon lens | |
| Sensing element/ spectral response |
Thermopile/8 ... 14 μm | |
| Response time (operating mode) |
* Output response 90%*2 |
|
| Accuracy*3 | −40 ... 0°C: ±1.5°C +1 ... +200°C: ±1°C +201 ... +500°C: ±0.5% of reading value |
|
| Repeatability | ±0.5°C (operating mode is 100 ms) | |
| Temperature drift | ±0.25℃/℃ or less | |
| Emissivity adjustment | 0.100 ... 1.200 | |
| Supply voltage | 4.4 ... 5 VDC (Supplied from controller) | |
| Current consumption | 30 mA or less/5 VDC | |
| Connection type | Pigtail cable 3 m Minimum bending radius: 31 mm | |
| Total cable length | Max. 13 m (pigtail cable 3 m + extension cable 10 m) | |
| Ring laser pointer | Medium | Red semiconductor laser |
| Wavelength | 663 nm | |
| Maximum output | 1 mW | |
| Laser class (JIS/IEC/FDA)*4 | CLASS 2 | |
| Environmental resistance |
Degree of protection | IP67 (IEC 60529) |
| Ambient temperature | 0 ... +80°C (up to +70°C during laser emission) | |
| Ambient humidity | 35 ... 85% RH (no condensation) | |
| Storage temperature | −20 ... +80°C | |
| Vibration resistance | 10 ... 55 Hz Double amplitude 1.5 mm 2 hours in each of the X,Y and Z directions |
|
| Shock resistance | 500 m/s2 (Approx. 50 G ) 3 times in each of the X,Y and Z directions | |
| Atmosphere | No corrosive gas | |
| Operating altitude | 0 ... 2000 m | |
| Installation location | In door use | |
| Pollution degree | 2 | |
| Applicable regulations |
EMC | EMC Directive (2014/30/EU) UK EMC (The Electromagnetic Compatibility Regulations 2016) FCC Part 15 subpart B |
| Environment | RoHS Directive (2011/65/EU), China RoHS (MIIT Order No. 32) UK RoHS (The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012) |
|
| Safety | FDA Regulation (21 CFR 1040.10 and 1040.11*5) | |
| Applicable standards | EN/IEC 61326-1 | |
| NRTL Certification | UL Recognized Component certification for the US and Canada | |
| Material | Case: Aluminum, Front plate: Stainless steel | |
| Weight | Approx. 180 g | |
*1: If the measured temperature is below -50°C (lower limit display temperature), the displayed temperature is -50°C.
If the measured temperature is above 510°C (upper limit display temperature), the displayed temperature is 510°C.
*2: The response time is the time it takes for the output change to reach 90%.
*3: Measurement conditions: Emissivity; 1.000, Ambient temperature; 23 ±5°C, Size of the measurement target; sufficiently larger than the field of view.
*4: In accordance with the FDA provisions of Laser Notice No. 56, the laser is classified per the IEC 60825-1:2014 standard.
*5: Excluding differences per Laser Notice No. 56.
* To convert temperature values such as measurement temperature range and accuracy to Fahrenheit temperature, use (Fahrenheit temperature = Celsius temperature x 1.8 + 32).
* To convert relative values such as repeatability and temperature drift to Fahrenheit temperatures, use 1°C = 1.8°F.
Precautions for Laser Use
This product emits Class 2 visible laser beam that is compliant with JIS C6802/IEC 60825-1 laser product safety standards.
Labels for applicable standards are affixed to the product.
Type of laser used in this product
| Type | Red semiconductor laser |
| Wavelength | 663 nm |
| Maximum output | 1 mW |
| Pulse duration | 75 μs |
| Repetition Frequency | 2.63 kHz |
● Exports to the United States
If this product will be exported to the United States, approval must first be obtained from the FDA (Food and Drug Administration), the laser regulating body of the United States.
A report for this product has been submitted to the CDRH (Center for Devices and Radiological Health).
● Specifications are subject to change without prior notice.
| Model | TI-SC(E) | ||
|---|---|---|---|
| Rating | Supply voltage | 24 VDC → 24 VDC ±10 %*1 (when using general-purpose I/O cable) 18 ... 30 VDC (when using IO-Link cable) |
|
| Current consumption |
180 mA (when using a general-purpose I/O cable)*3 50 mA (when using an IO-Link cable) |
||
| Display resolution | 0.1°C/°F | ||
| Temperature unit | Celsius “°C”/Fahrenheit “°F” | ||
| Measurement mode | Normal/Sample hold/Peak hold/Valley hold/Edge detection | ||
| Response time (operating mode) |
High speed, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s Output response 90%)*4 |
||
| Analog output/ IO-Link update time |
High speed: 2.5 ms 50 ms ... 2 s: 5.0 ms 5 s ... 20 s: 100 ms |
||
| Analog output |
Resolution | 10,801 steps | |
| Accuracy | Voltage | ±0.2% of F.S. (at ambient temperature of 25°C) Temperature coefficient (typical): ±22 ppm/°C (±0.0022%/°C) |
|
| Current | ±0.2% of F.S. (at ambient temperature of 25°C) Temperature coefficient (typical): ±4 ppm/°C (±0.0004%/°C) |
||
| Indicator | Display | 1.8-inch TFT LCD Display language: English, Japanese, Simplified Chinese |
|
| Power indicator | When power is ON: lights in green, IO-Link communication: blinks in green | ||
| Output indicator |
Normal measurement alarm output is OFF: lights green Normal measurement alarm output is ON: lights red When minor warning occurs: blinks green When major warning occurs: blinks orange When an error occurs: blinks red |
||
| Interface | Alarm output | NPN/PNP open collector (selectable by setting) 1 output: Max. 100 mA, 2 outputs: Max. 100 mA Residual voltage NPN: 1.6 V or less, PNP: 3.4 V or less |
|
| Output mode | N.O./N.C. | ||
| External input | Laser off, Hold, Trigger | ||
| Analog output |
Current | 4 ... 20 mA load impedance: 150 ... 500 ohm | |
| Voltage | 0 ... 10 V output impedance: 200 ohm or less | ||
| Timer mode | One shot/delay (ON delay, OFF delay) One shot: 0.01 ... 10.00 sec, Delay: 0.00 ... 10.00 sec |
||
| IO-Link | Revision | 1.1.3 | |
| Baud rate | COM 3 (230.4 kbps) | ||
| Number of process input data bytes |
4 bytes | ||
| Number of process output data bytes |
1 byte | ||
| Minimum cycle time | 0.5 ms | ||
| Data storage class | Data storage class 1: automatic DS | ||
| Connection type |
General-purpose I/O cable |
3 m cable 9 wires, Minimum bending radius: R 42 mm | |
| IO-Link cable |
Open-end | 3 m cable 3 wires, Minimum bending radius: R 42 mm | |
| M12 4-pin connector |
0.3 m cable with M12 4-pin connector, Minimum bending radius: R 42 mm | ||
| Environmental resistance |
Degree of protection | IP40 (IEC 60529) | |
| Ambient temperature | 0 ... +50°C | ||
| Ambient humidity | 35 ... 85% RH (no condensation) | ||
| Storage temperature | −20 ... +70°C | ||
| Vibration resistance | 10 ... 55 Hz Double amplitude 1.5 mm 2 hours in each of the X, Y, Z directions | ||
| Shock resistance | 500 m/s2 (Approx. 50 G ) 3 times in each of the X,Y and Z directions | ||
| Atmosphere | No corrosive gas | ||
| Operating altitude | 0 ... 2,000 m | ||
| Installation location | In door use | ||
| Pollution degree | 2 | ||
| Applicable regulations |
EMC | EMC Directive (2014/30/EU) UK EMC (The Electromagnetic Compatibility Regulations 2016) FCC Part 15 subpart B |
|
| Environment | RoHS Directive (2011/65/EU) (The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012) UK RoHS China RoHS (MIIT Order No. 32) |
||
| Applicable standards | EN/IEC 61326-1 | ||
| NRTL Certification | UL Recognized Component certification for the US and Canada | ||
| Material | Case: ABS | ||
| Weight | Approx. 80 g | ||
NRTL Certification
UL Recognized Component certification for the US and Canada
*1: Use a Class 2 Power Supply or a power supply compliant with the LIM (Limited Energy Circuit) circuit standards.
*2: The IO-Link master used for IO-Link connection must be compatible with a Class 2 Power Supply or LIM (Limited Energy Circuit) circuit standards.
*3: Includes alarm output load current and analog output current.
*4: The response time is the time it takes for the output change to reach 90%.
* To convert temperature values such as measurement temperature range and accuracy to Fahrenheit temperature, use (Fahrenheit temperature = Celsius temperature x 1.8 + 32).
* To convert relative values such as repeatability and temperature drift to Fahrenheit temperatures, use 1°C = 1.8°F.
● Specifications are subject to change without prior notice.

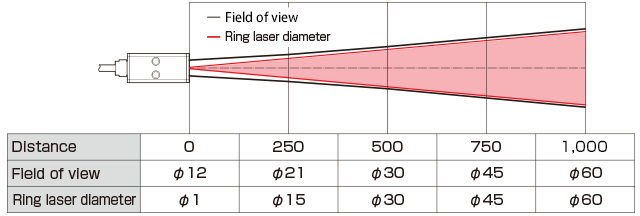

Field of view(Unit: mm)
● The field of view stated above is for an output response of 90%.
● The measurement target must be fit in the ring laser pointer.
