Accessories

* The controller does not come with a cable to connect an external device.
To connect the controller with an external device, please purchase one of the following connection cables.

Connection cables

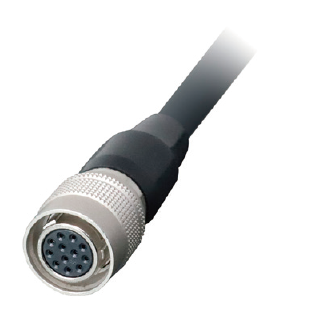

  • General-purpose I/O cable
    TI-SCA09-G3K

    Open-end cable
    Minimum bending radius
    (Stationary position) : R 42 mm

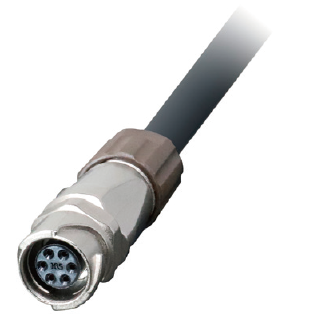

    IO-Link cable
    TI-SCA03-G3K

    Open-end cable

    Minimum bending radius
    (Stationary position) : R 42 mm

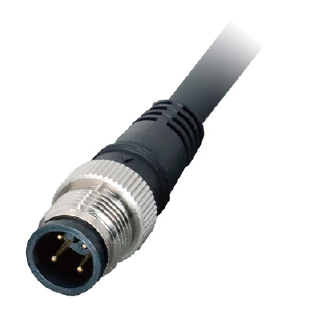

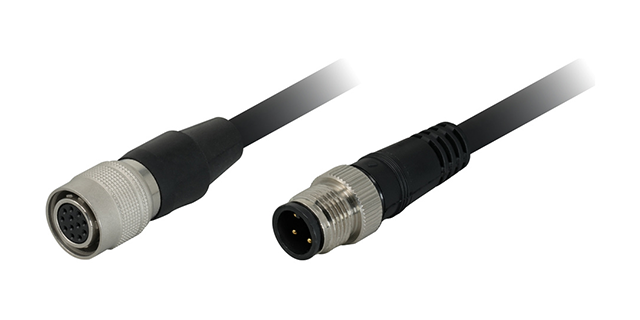

  • IO-Link cable
    TI-SM1203-G03K

    M12 connector on end

    Minimum bending radius
    (Stationary position) : R 42 mm

Extension cables

  • Extension cable connecting the sensor head and controller

    TI-SSA06-G3K

    (Cable length: 3 m)

    TI-SSA06-G4K

    (Cable length: 4 m)

    TI-SSA06-G5K

    (Cable length: 5 m)

    TI-SSA06-G10K

    (Cable length: 10 m)

    Minimum bending radius
    (Stationary position) : R 31 mm

Air purge kit

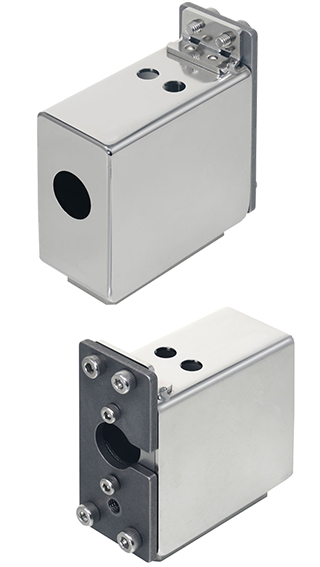

Air purge kit for TI-S30

  • TI-S30-AP

    Air purge kit for TI-S30 to prevent lens contamination
    Air flows in front of the lens to protect it from dust and dirt

    *An air pipe fitting is not included.
    Please attach a commercially available product.

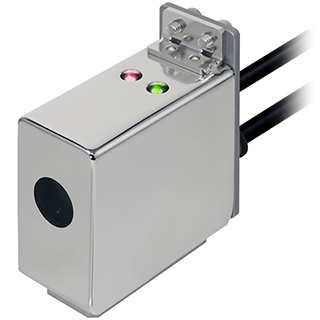

    • Installed air purge kit

Air purge kit Specifications

Model TI-S30-AP
Air flow rate 2 to 10 L/min
Ambient temperature 0 to +80°C
Ambient humidity 35 to 85% RH (no condensation)
Applicable standards EU RoHS (2011/65/EU)
Material Stainless steel
Weight Approx. 300 g

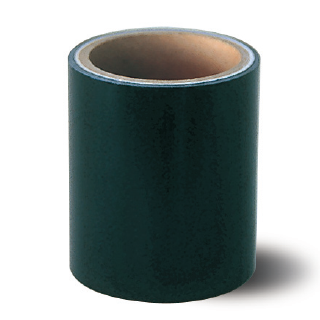

Black tape for non-contact thermometer

  • HB-250

    Heat resistance temperature: 250°C
    Tape width: 60 mm, Tape length: 2 m

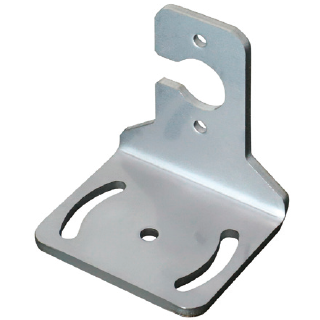

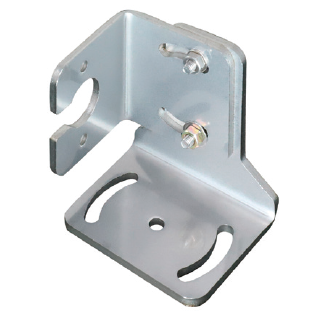

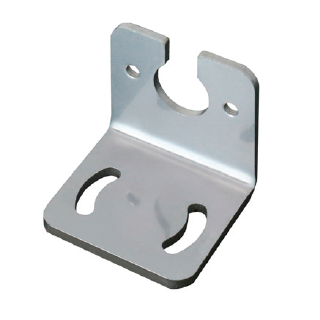

Mounting brackets

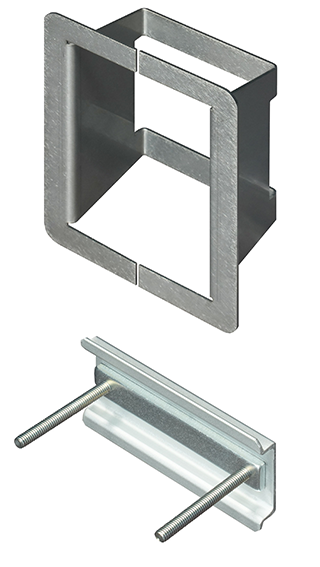

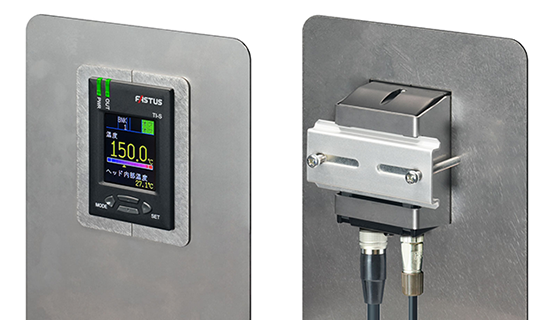

Mounting bracket

For controller

Product Calibration

The non-contact thermometers of OPTEX FA are calibrated based on our traceability system using a standard traceable to national standards.
OPTEX FA can carry out periodic calibration (for a fee) after purchase.
Annual calibration of the sensor head is recommended.
If you require calibration certificate documents, we provide a set of three documents: Certificate of Calibration, Report of Calibration, and Traceability Chart.

  • Certificate of Calibration

  • Report of Calibration

  • Traceability Chart

Models that Support Calibration

We can perform calibration and issue calibration certificates.
(Please note that some models are not covered by our calibration service.)

Calibration procedures

If you request calibration, contact the dealer where you purchased the product or contact OPTEX FA.

Calibration cost

Stationary type

Model*1 Calibration fees Calibration certificate issuance fees*2 Delivery time
TI-S30 Please contact us. Please contact us. 4 weeks
  1. *1.If the calibration is out of specification, we will adjust and return the product to you.
  2. *2.We provide a set of three documents: Certificate of Calibration, Report of Calibration, and Traceability Chart.

Product warranty

The manufacturer's product warranty is for one year from the date of purchase.

Precautions

Common precautions

  • Before using this product, read the instruction manual carefully.
  • This product is not clinical thermometer and therefore, cannot be used for medical purposes.
  • Sudden temperature change may cause incorrect measurement.
    Keep the thermometer away from sudden change in ambient temperature.
  • Do not install this product in any of the following locations.
    Locations with strong electric or magnetic fields.
    Locations subjected to corrosive gases or flammable gases.
  • Do not use this product with a voltage exceeding the rated voltage or AC power supply. When used with anything other than 12 to 24 VDC may cause a fire or damage the product.
  • Do not let the thermometer touch the object that is being measured.
    This product is a non-contact thermometer. Touching high temperature object may cause deformation of the meter, irreparable damage or incorrect measurement.

Measurement tips

  • For measurement of specular surface, such as a polished metal, consider to attach the optional black tape, HB-250, or paint the surface in a matte color.
  • Measurement through glass may be difficult.

Precautions for Laser Use

  • This product emits Class 2 visible laser beam that is compliant with JIS C6802 / IEC 60825-1 laser product safety standards.

    • Use the product in accordance with the labels for applicable standards are affixed to the product.

CE Marking

All of OPTEX FA's non-contact thermometers are CE compliant.
