Dimensions

Mounting brackets for sensor head

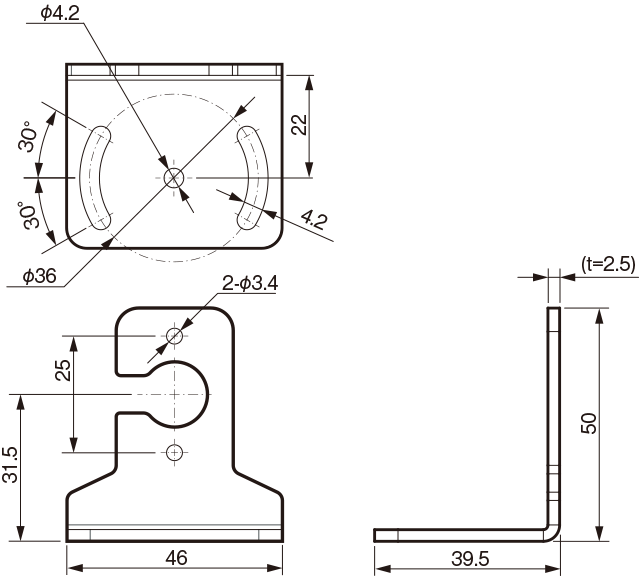

• BEF-TISH-B (Option)

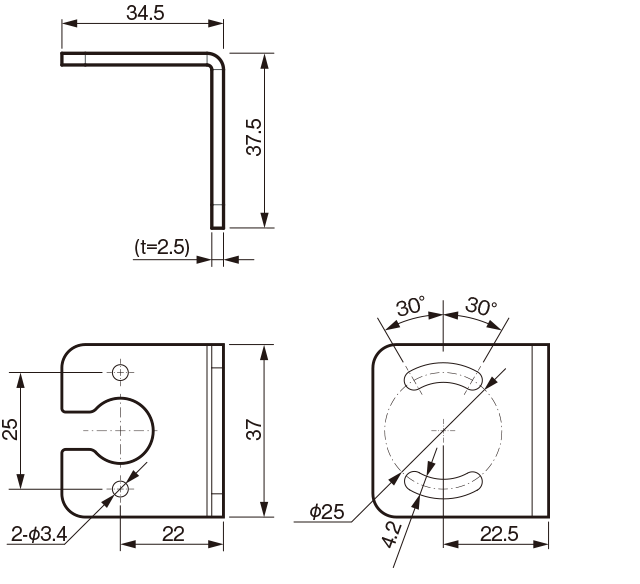

• BEF-TISH-A (Option)

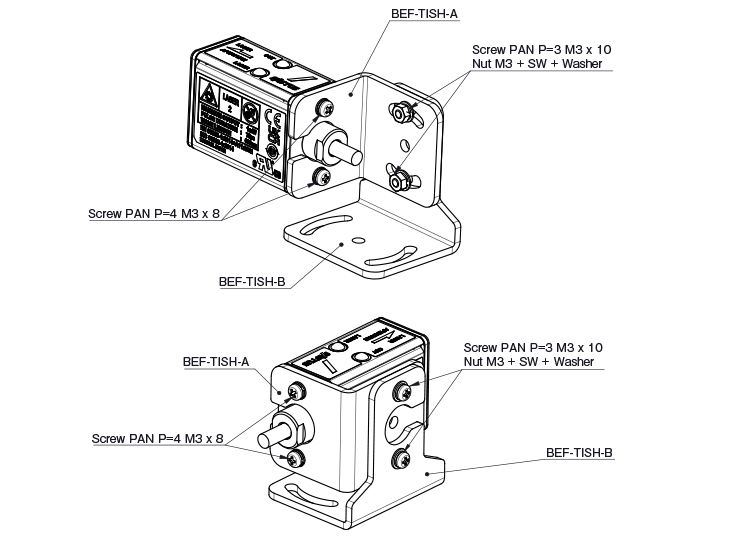

• Assembly drawing of 2-axis mounting bracket

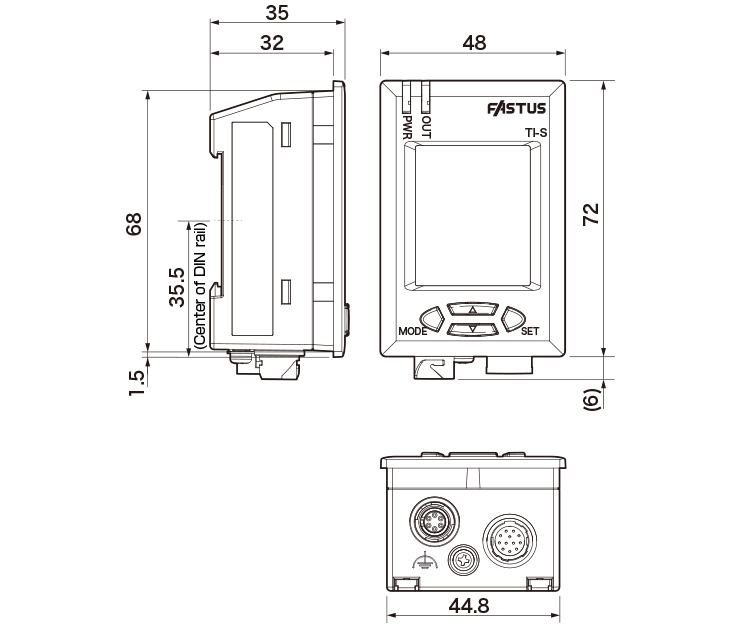

Mounting bracket for controller

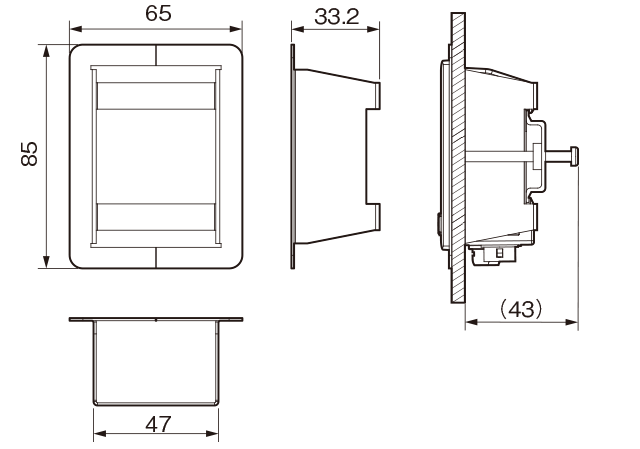

• BEF-TISC-BKT (Option)



Connection cable (Option)

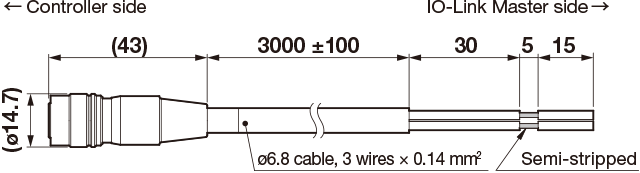

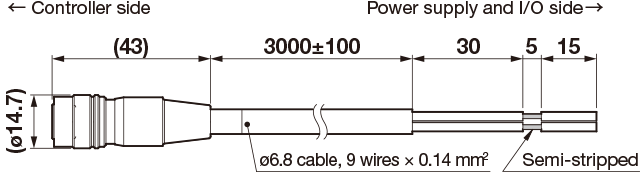

• General-purpose I/O cable: TI-SCA09-G3K

  Minimum bending radius (Stationary position): R 42 mm



• IO-Link cable: TI-SCA03-G3K

  Minimum bending radius (Stationary position): R 42 mm

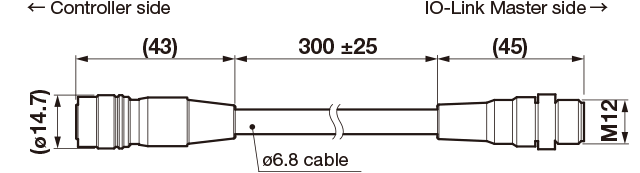

• IO-Link cable: TI-SM1203-G03K

  Minimum bending radius (Stationary position): R 42 mm

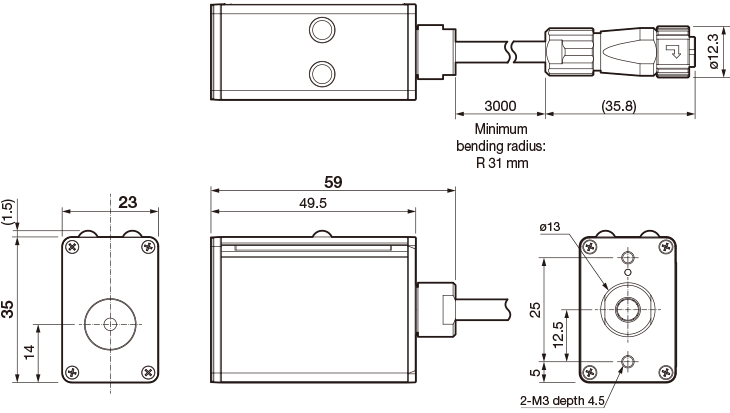

Extension cable connecting the sensor head and controller (Option)

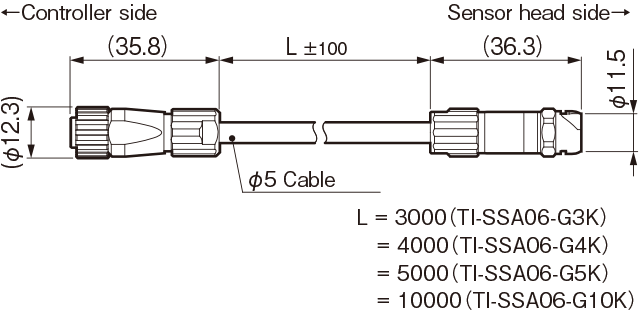

• TI-SSA06-GxK

  Minimum bending radius (Stationary position): R 31 mm



Air purge kit (Option)

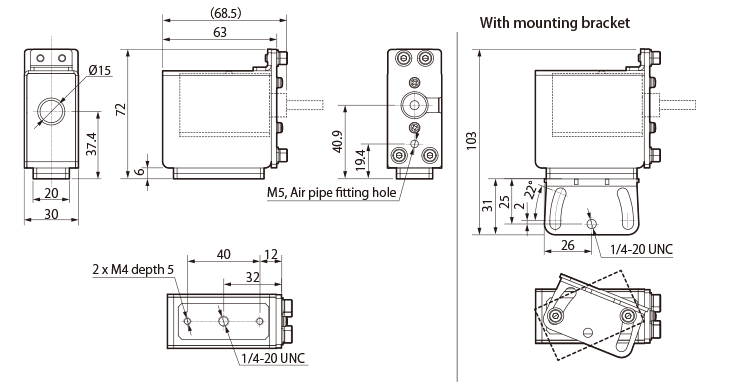

• Air purge kit for TI-S30: TI-S30-AP



Mounting bracket for air purge kit (Included with optional air purge kit)
