Circuit Diagram
I/O Circuit Diagrams
General-purpose I/O cable
-

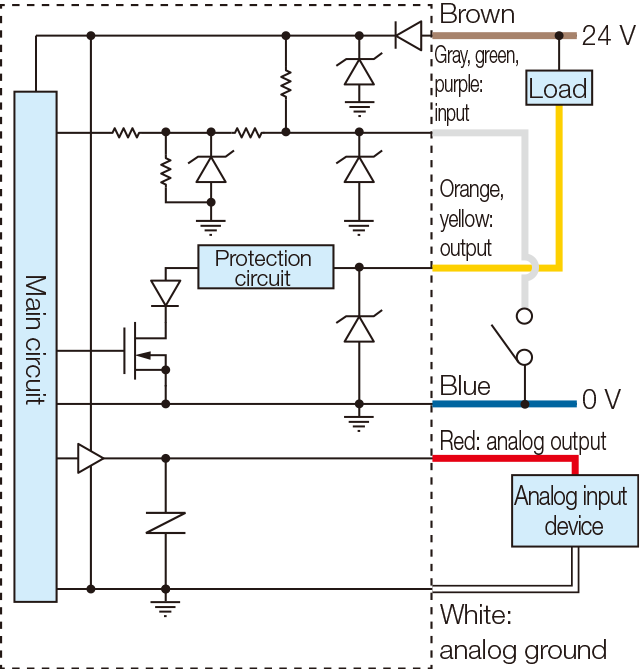

NPN setting
-

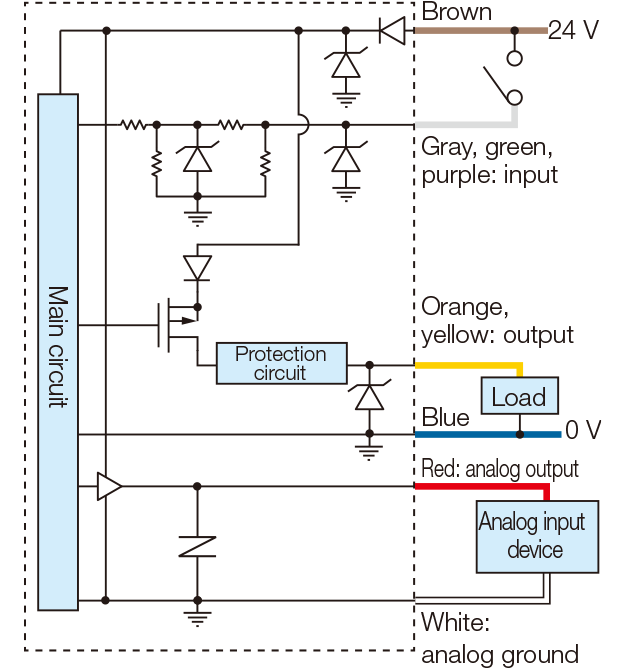

PNP setting
-
Lead wire functions
-
Lead wire functions during bank select
IO-Link cable
-

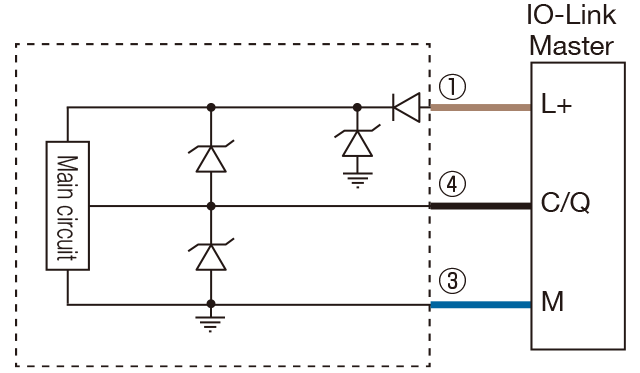

IO-Link connection*
* When using NPN settings for an IO-Link connection, use OPTEX FA’s IO-Link Master UR Series or IO-Link Master with sink support.
-

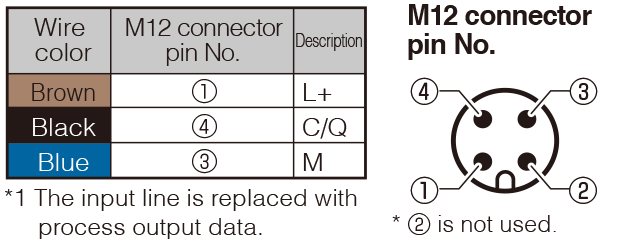

IO-Link cable lead wire/connector pin functions
