Specifications
| Part No. | 51696 |
|---|---|
| Model | NF-TK77 |
| Category | Flexible type (R1 mm, R2 mm) |
| Type |
M4 Lens attachable |
| Detection method | Through-beam type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M4 15 mm long |
| Sleeve | - |
| Optical axis diameter | ø1.0 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, M4 Hex nut x 4, Washer x 4 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 2,710 (2 ms) 2,010 (1 ms) 1,770 (500 μs) 1,415 (250 μs) 915 (70 μs) 310 (16 μs/22 μs) |
|
3,500 (4 ms) 2,010 (1 ms) 1,415 (250 μs) 495 (50 μs) |

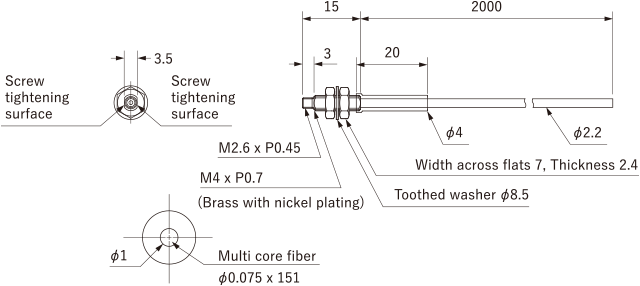

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Attachment lens Long range lens |
 |
12236 | NF-TA01 |
| Attachment lens Long range lens |
 |
54649 | NF-TA03 |
| Attachment lens Long range lens |
 |
50226 | NF-TA01S |
| Attachment lens Utra-long range lens |
 |
54650 | NF-TA04 |

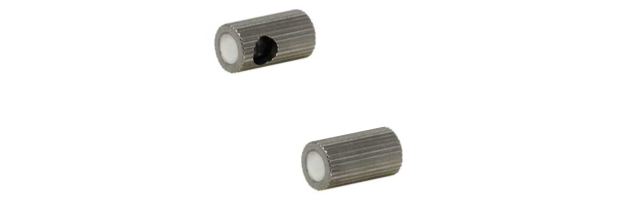

| Attachment lens Side-view lens |
 |
12237 | NF-TA02 |
| Attachment lens Side-view lens |
 |
54651 | NF-TA05 |
