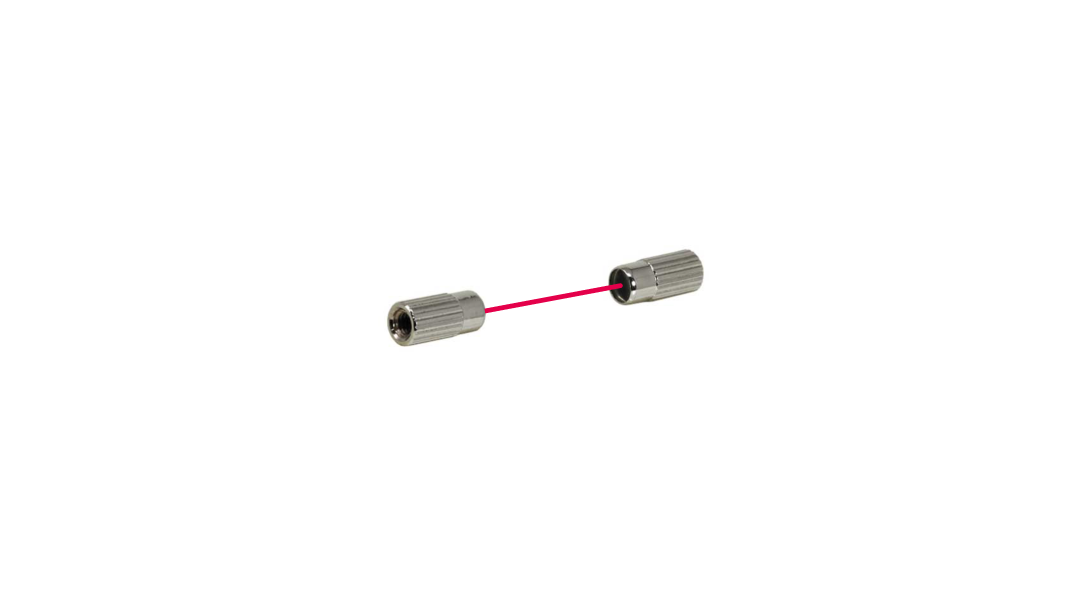

NF Series Attachment lens

NF-TA03

  • Long range lens
  • 2 pieces

CAD & Drawings
  • PDF
Related Series
Browse and download catalogs and manuals on the product series page.
Part No. 54649
Model NF-TA03
Category Attachment lens
Type Long range lens
Detection method Through-beam type
Optical axis direction Top view
Optical axis diameter ø4.0 mm
Dimensions ø4.0 mm x 9.2 mm
Internal thread size M2.6
Applicable Fiber-Optic Cables NF-TB01, NF-TB02, NF-TB06, NF-TR01, NF-TK77, NF-TH01, NF-TH08, NF-TH12
Ambient temperature -40 ... +350°C
0 ... 40°C (at 85 % RH)
Ambient humidity 35 ... 85 % RH
Applicable regulations RoHS directive (2011/65/EU)
Weight Approx. 2 g
Quantity 2 pcs.
Included items -

Sensing Distance with D4RF Series

Unit: mm

  • Fiber-Optic Sensor D4RF Series
Applicable Fiber-Optic Cables Sensing distance by response time [mm]
8 ms 2 ms 1 ms 500 μs 250 μs 70 μs 16 μs/22 μs
NF-TB01 3,600 3,600 3,600 3,600 3,600 3,600 2,700
NF-TB02 3,600 3,600 3,600 3,600 3,600 3,600 2,900
NF-TB06 3,600 3,600 3,600 3,600 3,600 3,600 2,070
NF-TR01 3,600 3,600 3,600 3,600 3,600 3,600 2,800
NF-TK77 3,600 3,600 3,600 3,600 3,600 3,600 2,800
NF-TH01 3,600 3,600 3,600 3,600 3,600 3,600 2,150
NF-TH08 3,600 3,600 3,600 3,600 3,600 3,600 2,300
NF-TH12 3,600 3,600 3,600 3,600 3,600 3,600 1,030

Sensing Distance with D12R Series

Unit: mm

  • Fiber-Optic Sensor D12R Series
Applicable Fiber-Optic Cables Sensing distance by response time [mm]
4 ms 1 ms 250 μs 50 μs
NF-TB01 3,600 3,600 3,600 3,600
NF-TB02 3,600 3,600 3,600 3,600
NF-TB06 3,600 3,600 3,600 3,600
NF-TR01 3,600 3,600 3,600 3,600
NF-TK77 3,600 3,600 3,600 3,600
NF-TH01 3,600 3,600 3,600 3,600
NF-TH08 3,600 3,600 3,600 2,160
NF-TH12 3,600 3,600 3,600 2,055

Dimensions

Unit: mm

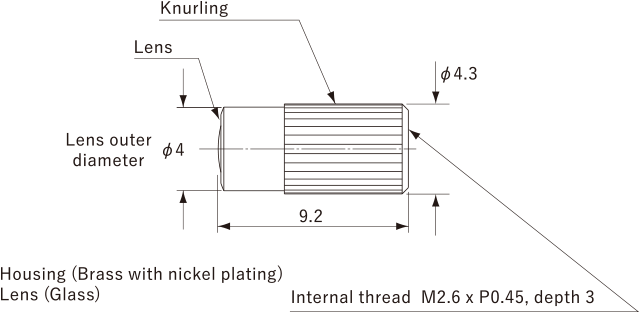

  • NF-TA03
