Technical Overview of Laser Displacement Sensors

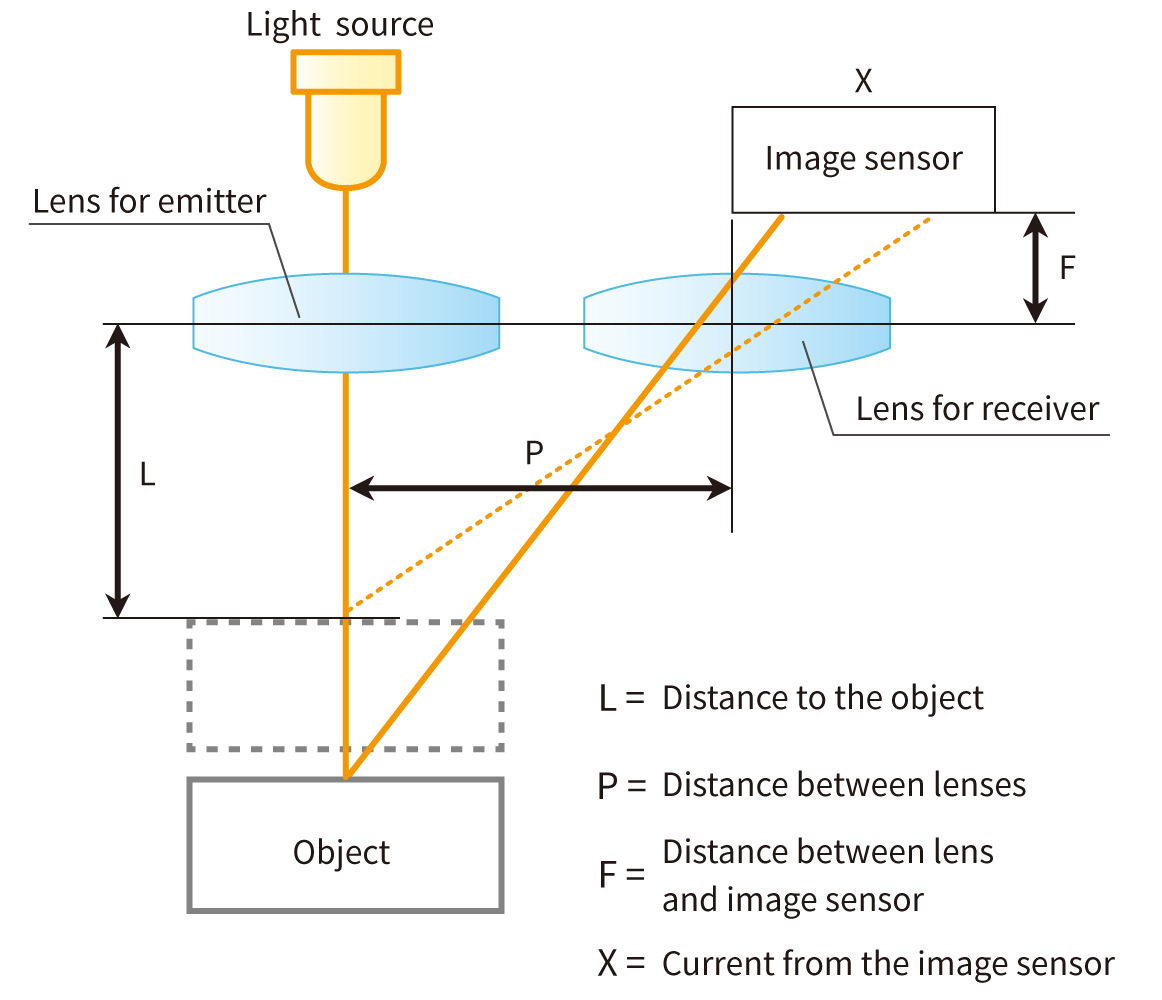

The laser beam is collected and collimated by the lens and emitted to the object.

The reflected light from the object is received by the image sensor through the lens for receiver.
The distance of the target object moves changes distance of the landed image on the image sensor which creates current internally in the displacement sensor.
The distance “L” can be calculated by following formula using this current amount.
