Basic Knowledge of Displacement Sensors

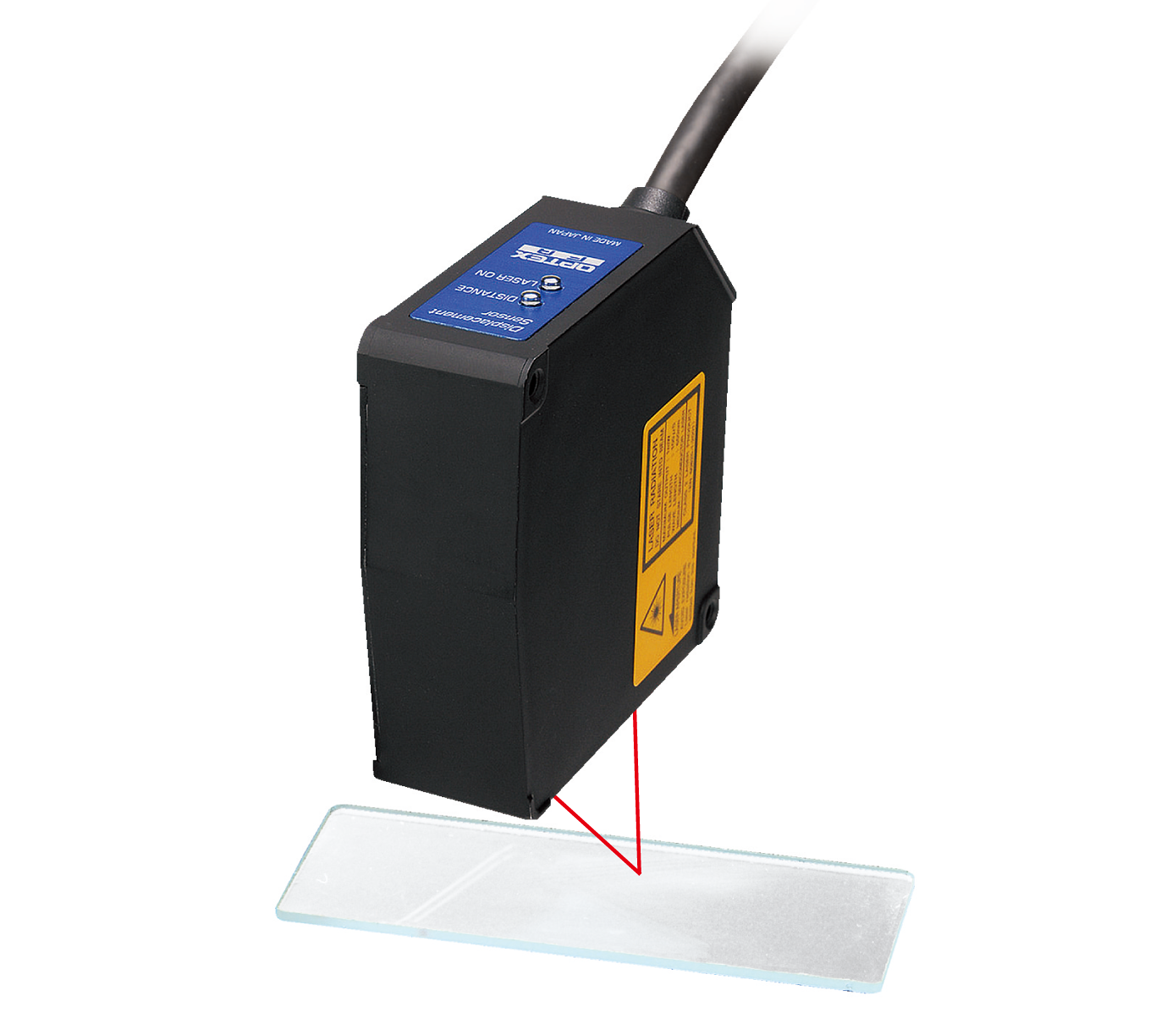

What Is a Displacement Sensor

Displacement sensors measure the height and thickness of objects and distances in units of micrometers.
Photoelectric sensors detect the presence of objects, but displacement sensors can accurately measure a distance to object in micrometers.

* There are various types of displacement sensors including contact types, ultrasonic types, capacitive types, and inductive types. This technical guide explains laser displacement sensors, which are equipped with lasers as light sources of optical systems.

Main Features

Non-contact measurement
Long-distance measurement
Small object measurement
High-speed and high-accuracy measurement
Measurable for most of objects
Oil and dust on optical system

What Can Be Measured Using a Laser Displacement Sensor

Thickness measurement	Height measurement	Warpage/distortion measurement	Slackness measurement	Size measurement	Level control
Count/passage detection	Positioning	Height difference detection	Overlap detection	Transparent object measurement	Profile/appearance inspection
