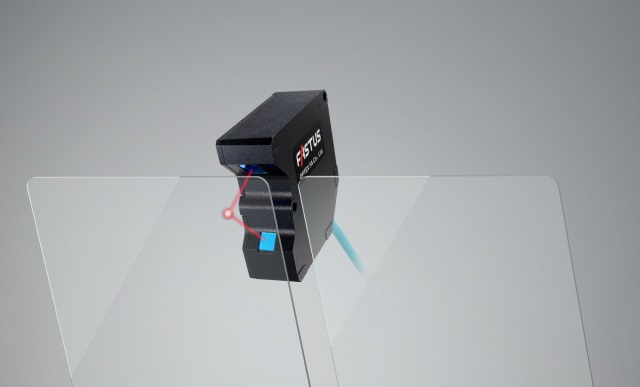

Measurement of LCD glass thickness

With the specular reflection type laser displcement sensor CDX-L15, not only the distance to the glass surface but also the glass’s thickness itself can be measured stably. The thickness can be measured by receiving both light reflected from the glass’s front surface and light reflected from its back surface. In addition, the short range CDX-30 and middle range CDX-85 can also measure glass when installed in a specular reflection configuration.

• Ultra High-Accuracy Laser Displacement Sensors

  CDX Series

  World’s No. 1 Linearity Developed image sensor: ATMOS Direct Ethernet connection Equipped with a Web Server
