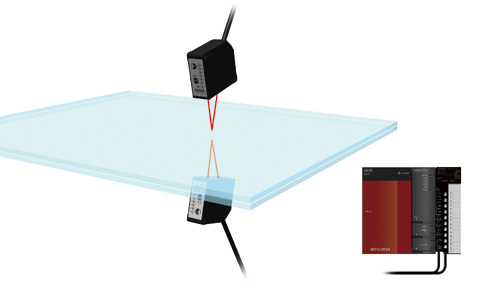

Detecting overlapping of glass plates

Using the laser displacement sensor CD33‑L30N□, it is possible to detect whether one or two glass substrates are being fed at the loading stage, thereby preventing substrate breakage caused by double feeding. Even on lines with vibration, stable measurement is achieved by measuring the glass from both the top and bottom.

• Small Laser Displacement Sensors

  CD33 Series

  Half-palm size. Ideal for built-in use with smaller machines



• Displacement Sensor Communication Units

  UQ1 Series

  Can be connected to Mitsubishi Electric PLCs The industry’s first displacement sensor control unit
