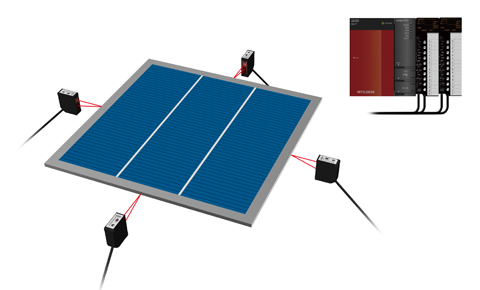

Dimensions inspection of assembled PV plate
Inspection of the assembly accuracy of PV panels using the CD33‑85x laser displacement sensor. With the CD33‑85x, inspection with a repeat accuracy of 10 µm is possible at a measurement distance of 85 mm.
Products Used
-
Small Laser Displacement Sensors
CD33 Series
Half-palm size. Ideal for built-in use with smaller machines
-
Displacement Sensor Communication Units
UQ1 Series
Can be connected to Mitsubishi Electric PLCs The industry’s first displacement sensor control unit
