Specifications
Technical Data
| Type | BGS | |||||
|---|---|---|---|---|---|---|
| Model | NPN | Cable | Z4B-S08N | Z4B-10N | Z4B-30N | Z4B-30NIR |
| Connector | Z4B-S08CN4 | Z4B-10CN4 | Z4B-30CN4 | ‐ | ||
| PNP | Cable | Z4B-S08P | Z4B-10P | Z4B-30P | Z4B-30PIR | |
| Connector | Z4B-10CP4 | ‐ | ||||
| Sensing distance* | 5 ... 80 mm | 5 ... 100 mm | 10 ... 300 mm | |||
| Adjustable distance range* | 20 ... 80 mm | 20 …100 mm | 50 ... 300 mm | |||
| Light source | Red LED | Infrared LED | ||||
| Spot size | at 60 mm |
at 100 mm |
Approx. ø30 mm at 300 mm |
|||
| Response time | Light ON setting: No light received → Light received; 1 ms Max., Light received → No light received; 3.5 ms Max. Dark ON setting: Light received → No light received; 3.5 ms Max., No light received → Light received; 1 ms Max. |
|||||
| Hysteresis* | Max. 3% | Max. 5% | ||||
| Sensitivity adjustment | 6-turn potentiometer (endless) |
4-turn potentiometer (endless) |
||||
| Indicators | Output indicator (orange LED), Stability indicator (green LED) | |||||
| Control output | NPN/PNP Open collector Max. 100 mA/30 VDC Residual voltage 1.8 V Max. |
|||||
| Output mode | Light ON, Dark ON selectable by switch | |||||
| IO-Link specifications | Ver. 1.1, Baud rate: COM3 (230.4 kbps), Number of process input data bytes: 2 bytes, Minimum cycle time: 0.5 ms |
|||||
| Connection | Cable type: 2 m long, φ3.8 mm (Minimum bending radius: Cable diameter x 4 (When fixed in place)) Connector type: M8 4-pin |
|||||
| Rating | Supply voltage | IO-Link mode: 18 ... 30 VDC, SIO mode: 10 ... 30 VDC including 10 % ripple (p-p) |
||||
| Current consumption | 30 mA Max. | |||||
| Applicable regulations | EMC | EMC directive (2014/30/EU) | ||||
| Environment | RoHS directive (2011/65/EU), China RoHS (MIIT Order No. 32) | |||||
| Applicable standards | EN 60947-5-2 | |||||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||||
| Environmental resistance |
Ambient temperature/humidity | -25 ... 55℃/35 ... 85%RH (No condensation or freezing) | ||||
| Storage temperature/humidity |
-40 ... 70℃/35 ... 95%RH (No condensation or freezing) | |||||
| Ambient illuminance | Sunlight: 50,000 lx Max., Incandescent lamp: 5,000 lx Max. | |||||
| Vibration resistance | 10 ... 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X,Y and Z directions |
|||||
| Shock resistance | Approx. 100 G (1000 m/s2), 3 times in each of the X,Y and Z directions | |||||
| Degree of protection | IP67 | |||||
| Material | Housing: ABS, Front Cover: PMMA | |||||
| Weight without cable | Approx. 10 g | |||||
| Included items | Instruction manual | |||||
*White paper 100 mm × 100 mm
● Specifications are subject to change without prior notice. Thank you for your understanding.
Typical characteristics

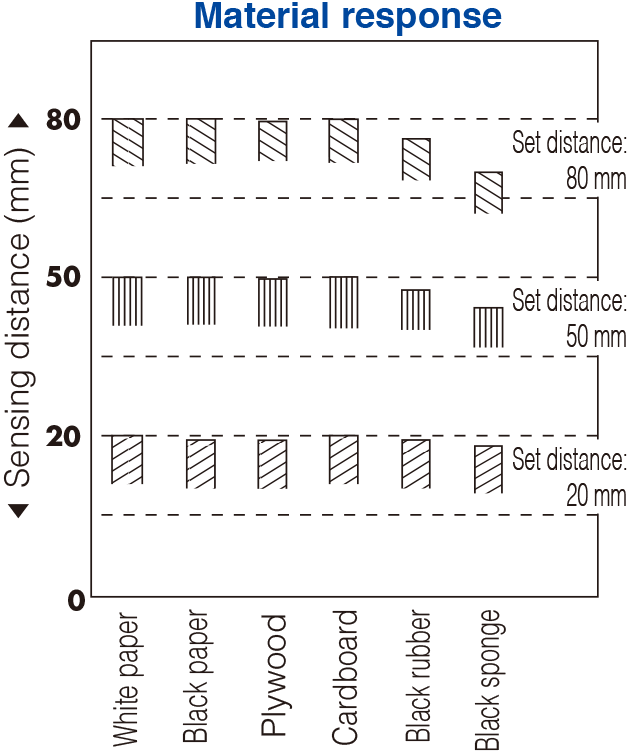

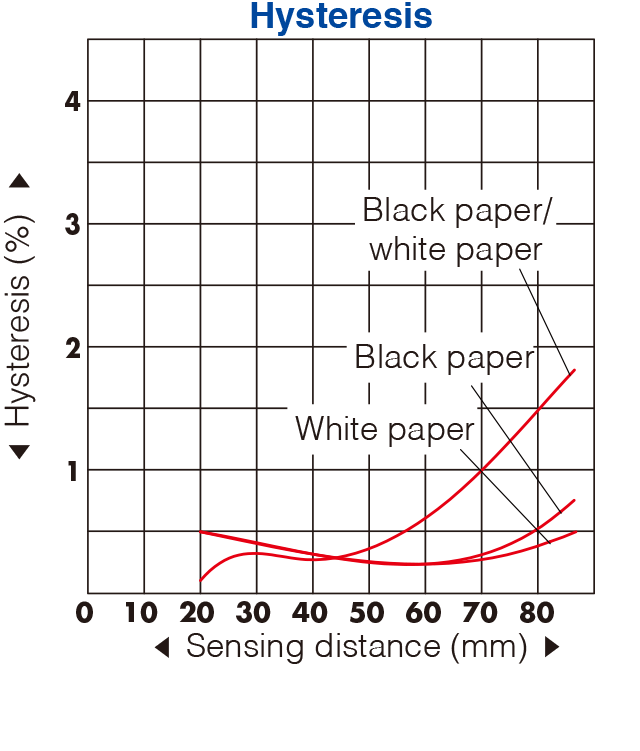

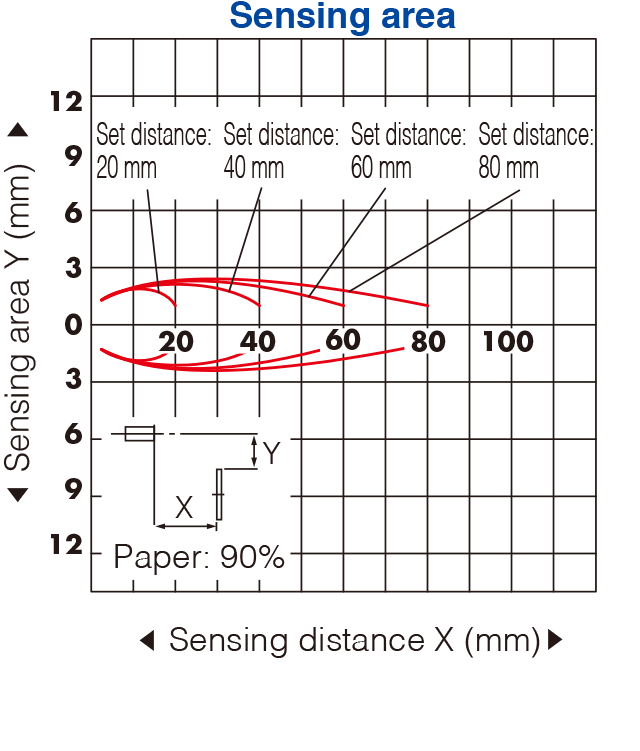

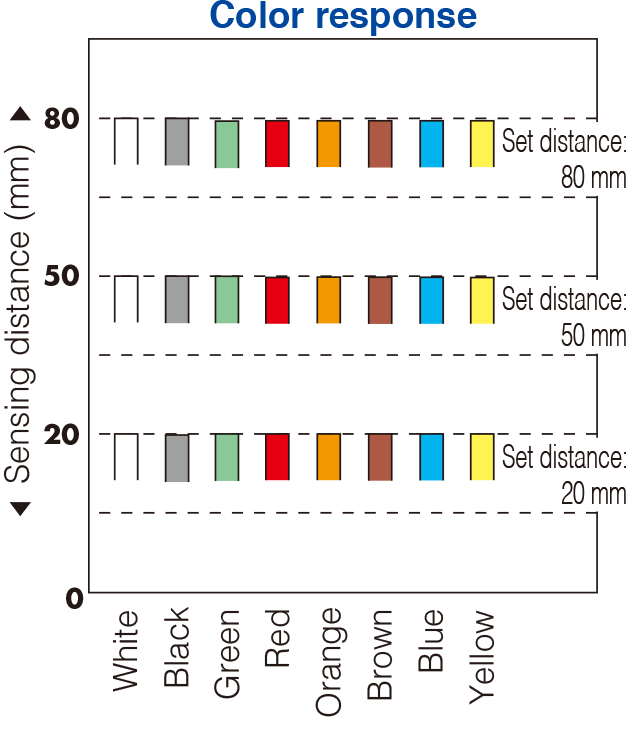

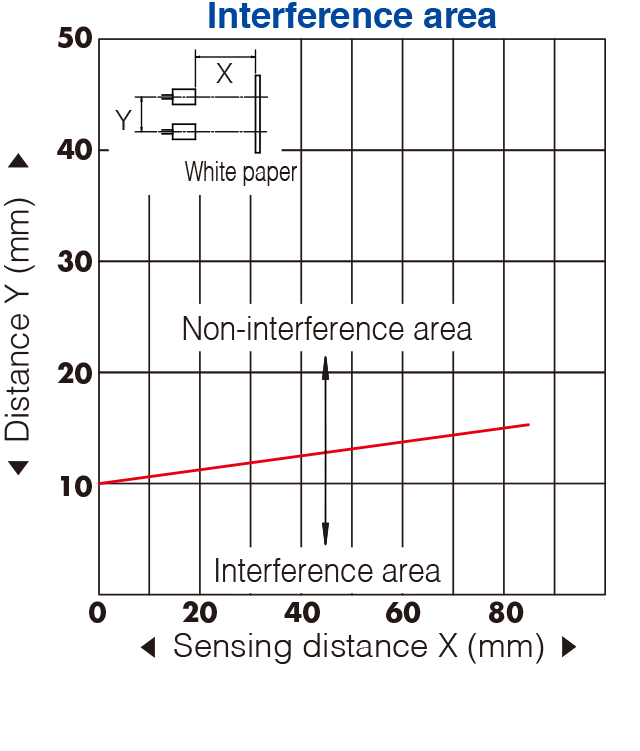

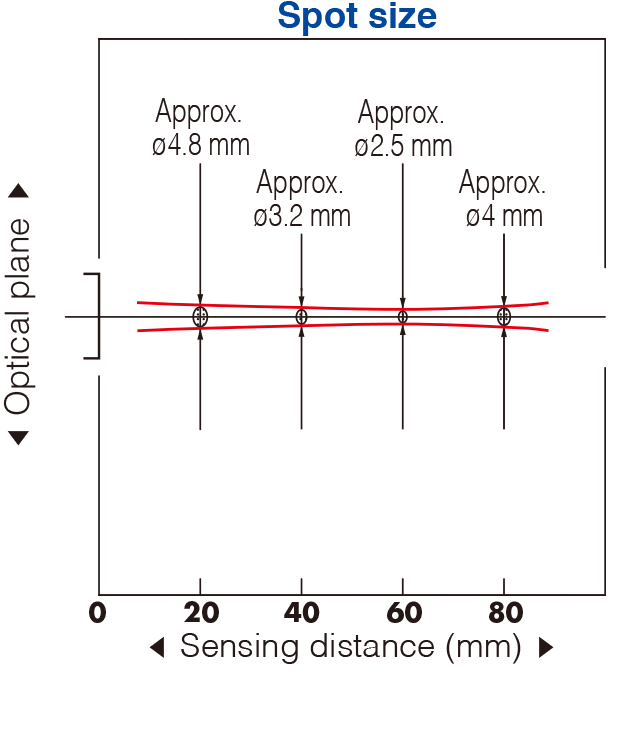

Z4B-S08x

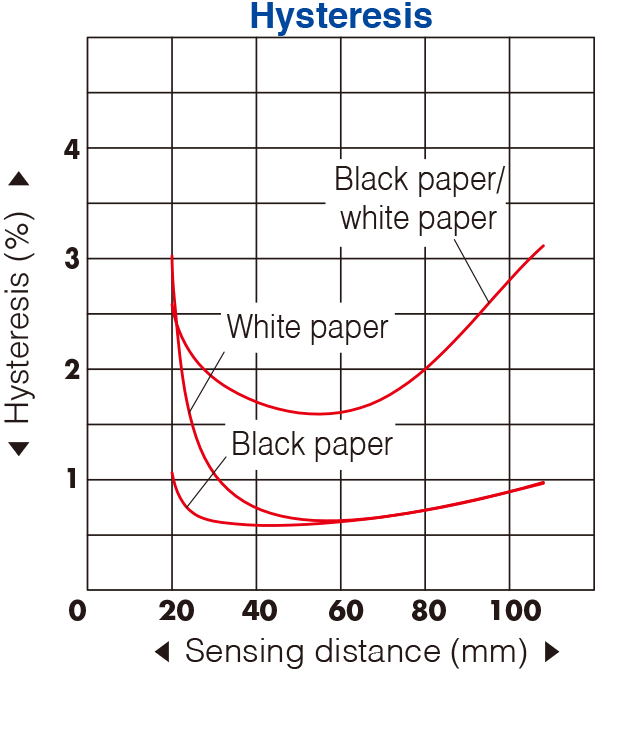

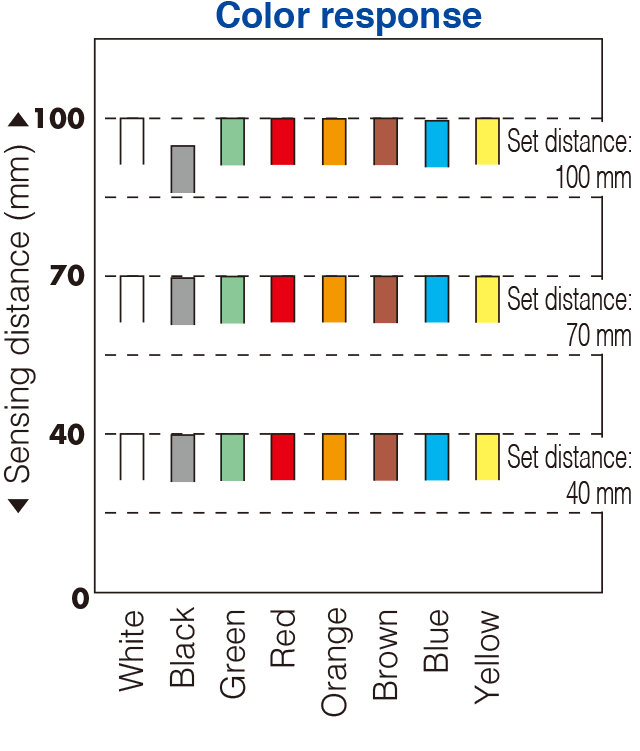

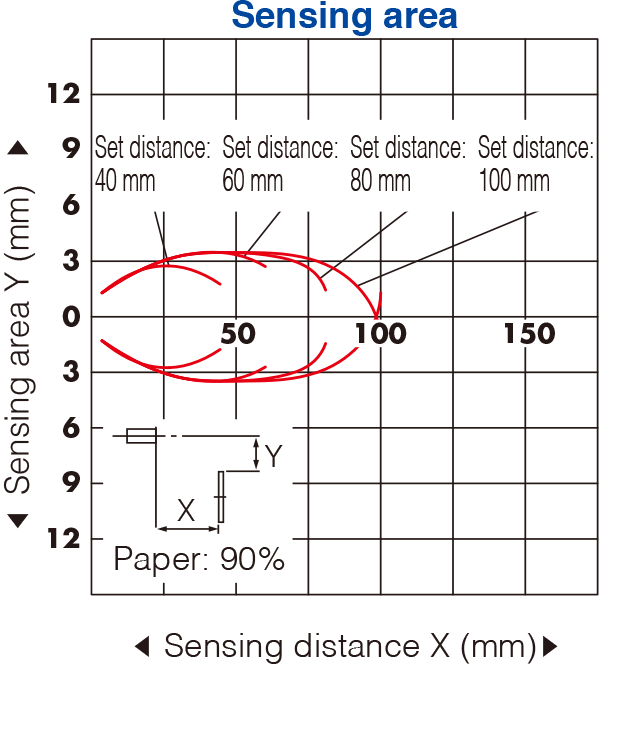

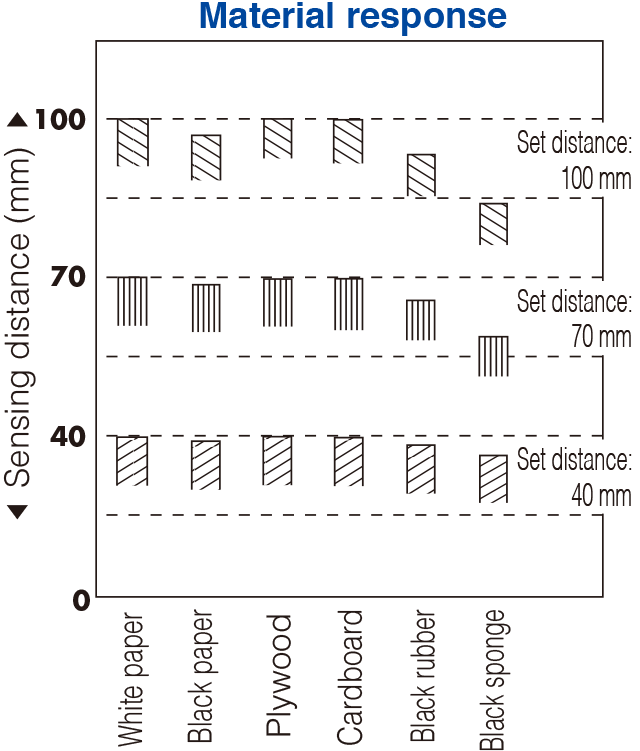

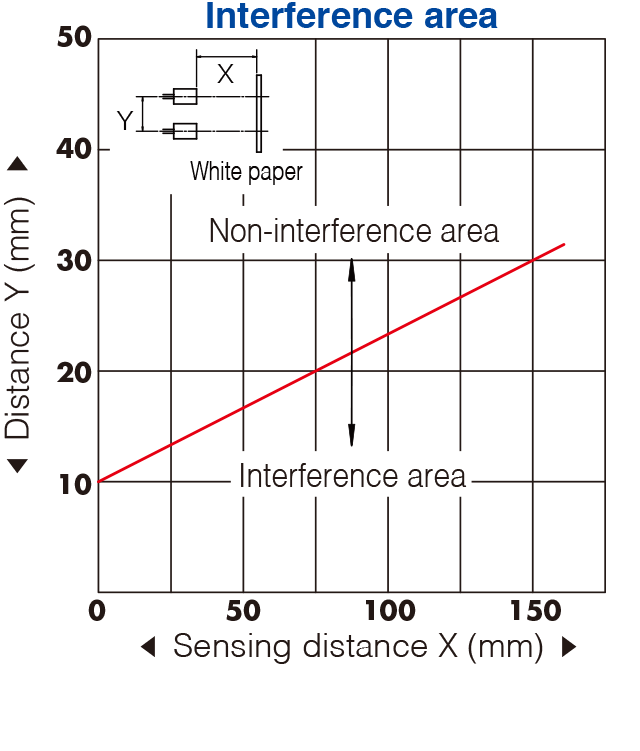

Z4B-10x

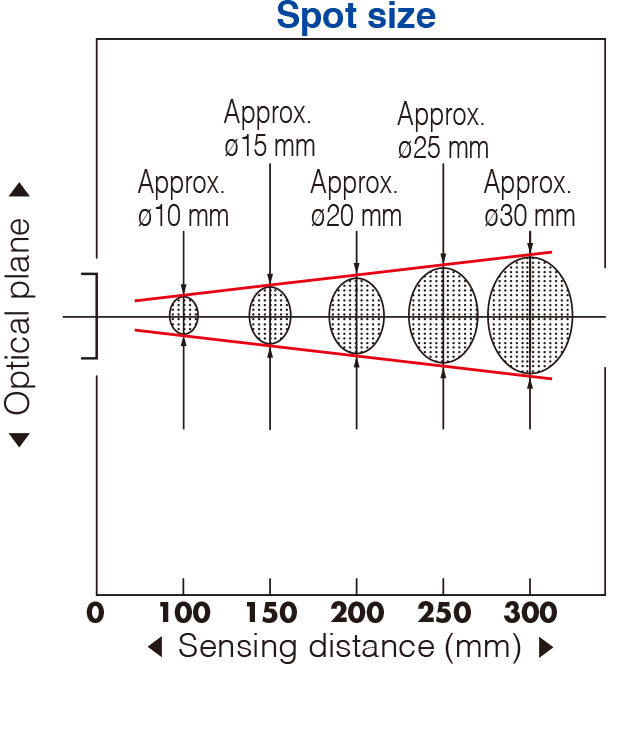

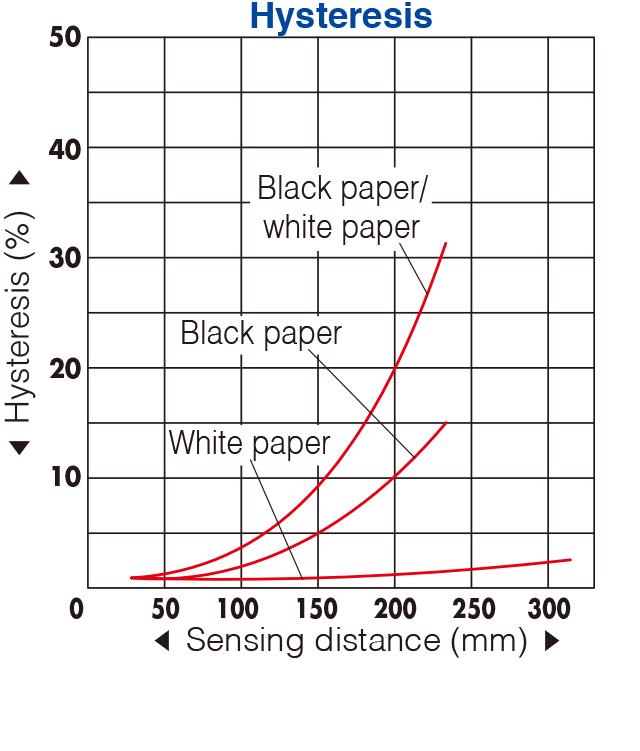

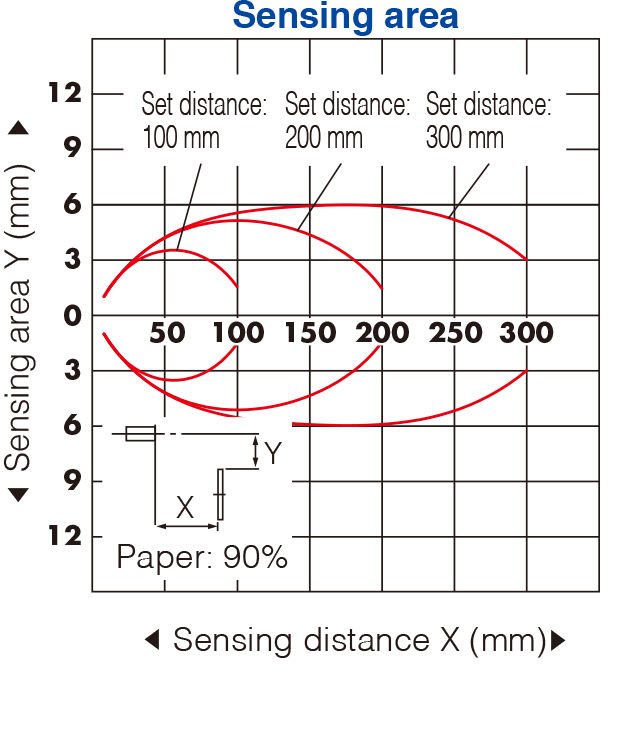

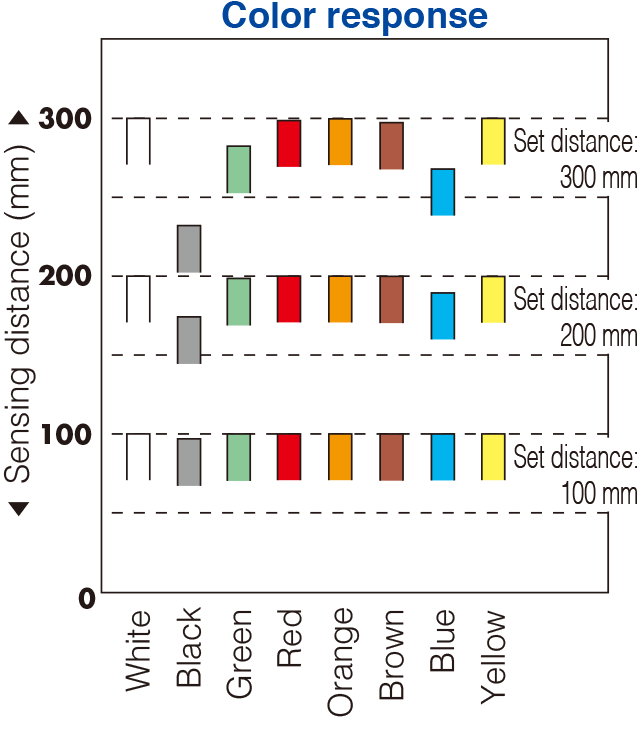

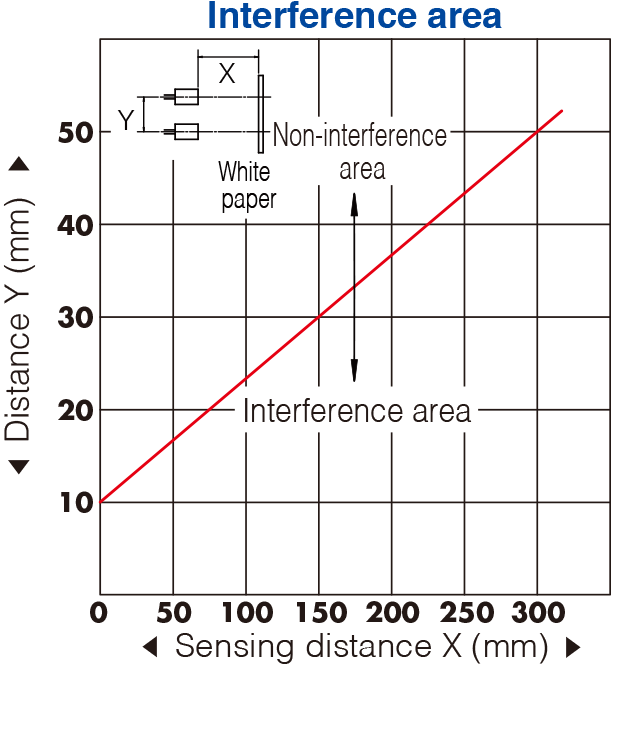

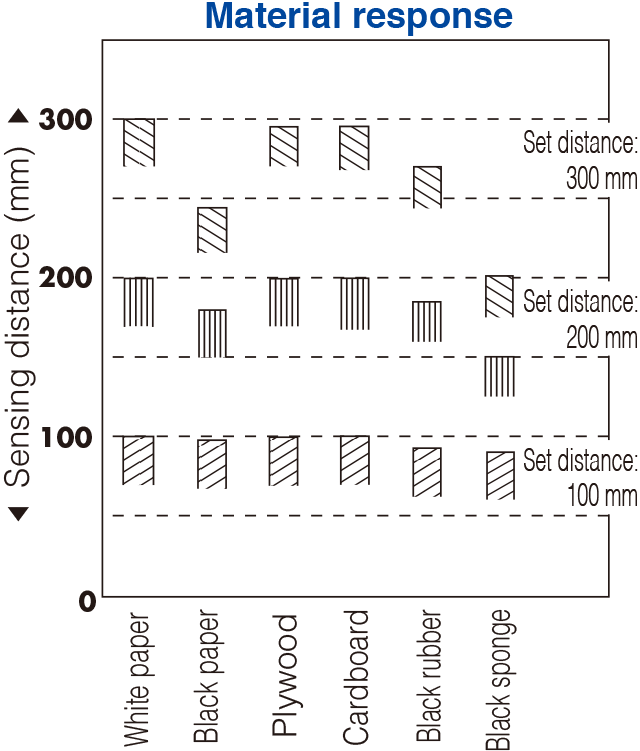

Z4B-30x/Z4B30-xIR
