Circuit Diagram

I/O Circuit Diagrams

• NPN type



• PNP type



• IO-Link mode*



  * When using NPN type for an IO-Link connection, use OPTEX FA’s IO-Link Master UR Series or IO-Link Master with sink support.

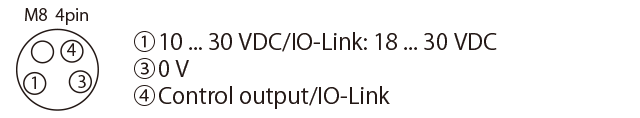

• M8 connector pin assignments



  Connecting

  • 1 to 4 are connector pin No.

  Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state (Approx. 250 ms) while the power is on.

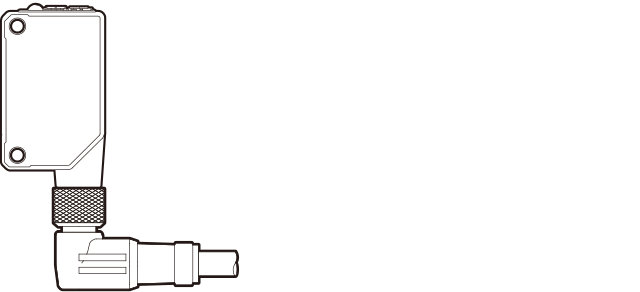

  • The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
