Dimensions

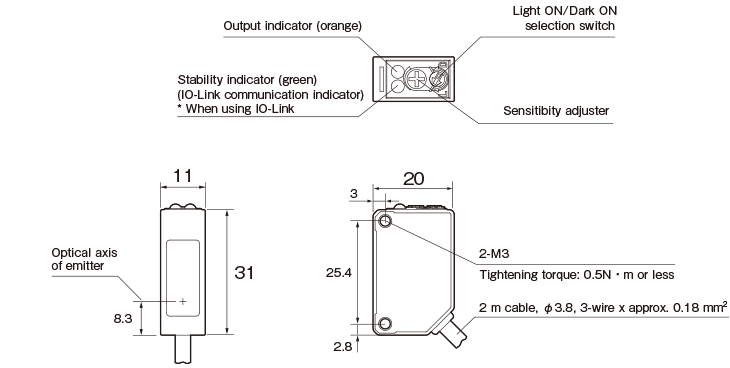

• Cable type

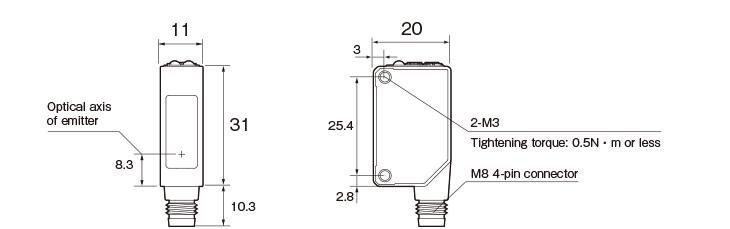

• Connector type



Connector cable (option)

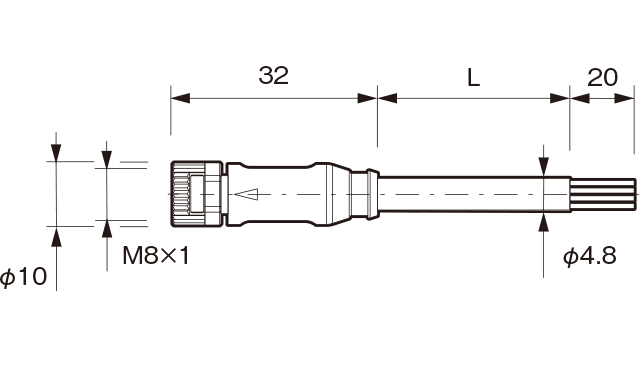

• M84CN-2S
  M84CN-5S
  M84CN-10S



  Cable material: PVC
  Lead wire: 4 wires x 0.25 mm²
  L = 2000 (M84CN-2S)
     = 5000 (M84CN-5S)
     = 10000 (M84CN-10S)
  Minimum bending radius: R24 mm (when fixed in place)

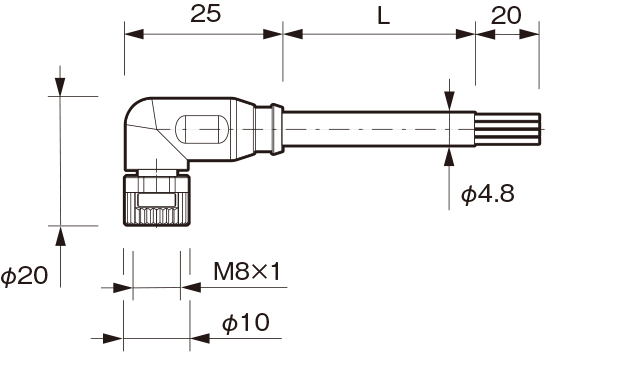

• M84CN-2L
  M84CN-5L
  M84CN-10L



  Cable material: PVC
  Lead wire: 4 wires x 0.25 mm²
  L = 2000 (M84CN-2L)
     = 5000 (M84CN-5L)
     = 10000 (M84CN-10L)
  Minimum bending radius: R24 mm (when fixed in place)

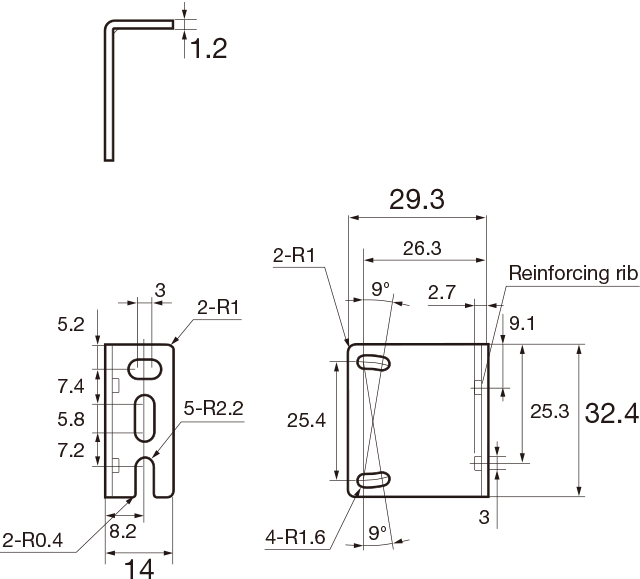

Mounting bracket (option)

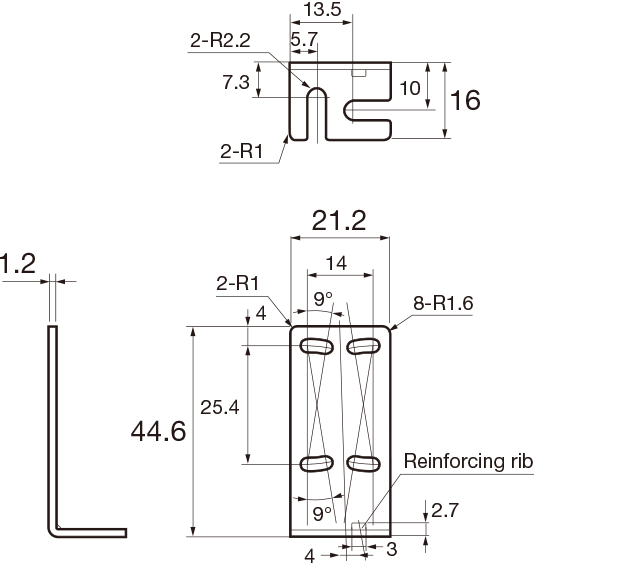

• BEF-W100-B: Floor-mounted for cable type



• BEF-W100-A: Back-mounted for connector type



• BEF-W100-C: Floor-mounted for cable type



Protective mounting bracket (for cable type)

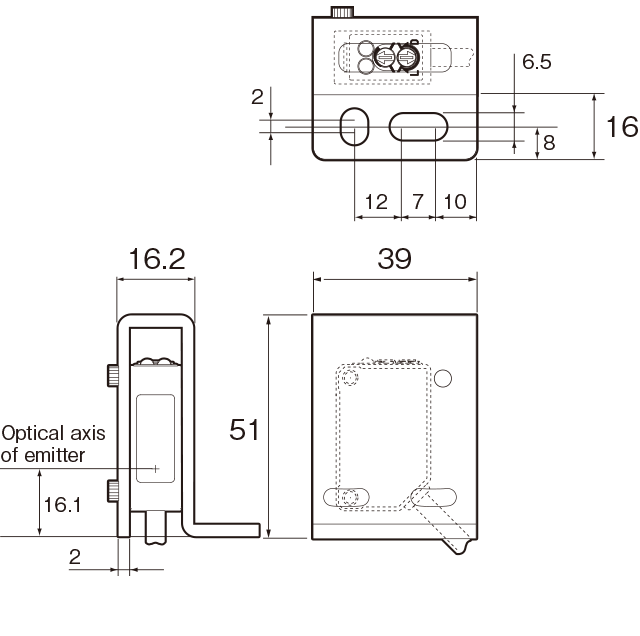

• LK-S01

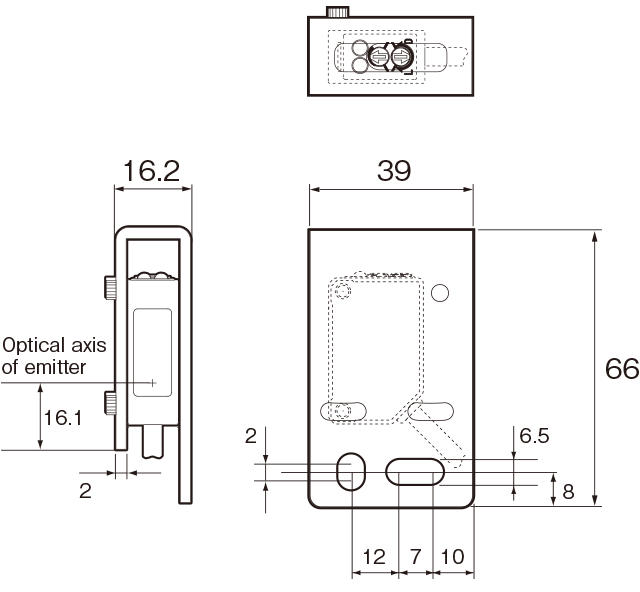

• LK-S02
