Specifications
Technical Data
| Type | Through-beam type | Retro-reflective type | Diffuse-reflective type | ||
|---|---|---|---|---|---|
| Model | NPN | Cable type | ZT-L3000N | ZR-L1000N | ZD-L40N |
| Connector type | ZT-L3000CN | ZR-L1000CN | ZD-L40CN | ||
| PNP | Cable type | ZT-L3000P | ZR-L1000P | ZD-L40P | |
| Connector type | ZT-L3000CP | ZR-L1000CP | ZD-L40CP | ||
| Sensing distance | 30 m | 0.2 to 10 m*1 | 400 mm*2 | ||
| Light source | Red semiconductor laser Class 1 (IEC/JIS) *3 Wavelength: 650 nm, Maximum output: 390 μW |
Red semiconductor laser Class 2 (IEC/JIS) *3 Wavelength: 650 nm, Maximum output: 3 mW |
|||
| Spot size (at focal distance) |
Approx. ø2 mm*4 Distance: 2 m (at ordinal temperatures) |
Approx. ø2.5 mm*4 Distance: 2 m (at ordinal temperatures) |
Approx. ø2 mm*4 Distance: 400 mm (at ordinal temperatures) |
||
| Response time | 250 μs or less | ||||
| Hysteresis | - | 20% | |||
| Distance adjustment | 1-turn potentiometer | ||||
| Indicators | Output indicator (orange LED), Laser emission indicator (green LED: stability indicator for through-beam type receiver) |
||||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | ||||
| Output mode | Light ON / Dark ON selection switch | ||||
| Connection type | Cable type: Cable length: 2 m ø3.8 mm / Connector type: M8, 4-pin | ||||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Current consumption | Emitter: 15 mA or less Receiver: 15 mA or less |
20 mA or less | |||
| Applicable regulations | EMC directive (2004/108/EC) / FDA regulations (21 CFR 1040.10) | ||||
| Applicable standards | EN 60947-5-2 | ||||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||||
| Environmental resistance |
Ambient temperature/humidity | -10 to +50℃ (no freezing) / 35 to 85% RH (no condensation) | |||
| Ambient illuminance | Sunlight: 10,000 lx/Incandescent lamp: 3,000 lx | ||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection | IP67 | ||||
| Material | Housing: ABS (glassfiber reinforced), Front cover: PMMA | ||||
| Weight without cable | Approx. 20 g | Approx. 10 g | |||
| Included accessories | Mounting bracket: BEF-W100-B*5 | Mounting bracket: BEF-W100-B*5 Reflector: P250F |
Mounting bracket: BEF-W100-B*5 | ||
*1. With P250F reflector *2. 100 mm ☓ 100 mm white paper *3. Classified as class II in the US FDA standards
*4. Defined with center strength 1/e2 (13.5%).
There may be light leakage outside of the specified spot size. The sensor may be affected when there is a highly reflective object close to the target area.
*5. Mounting bracket BEF-W100-A is included with the connector type.
• Specifications are subject to change without prior notice for product improvement purposes.
Typical characteristic data

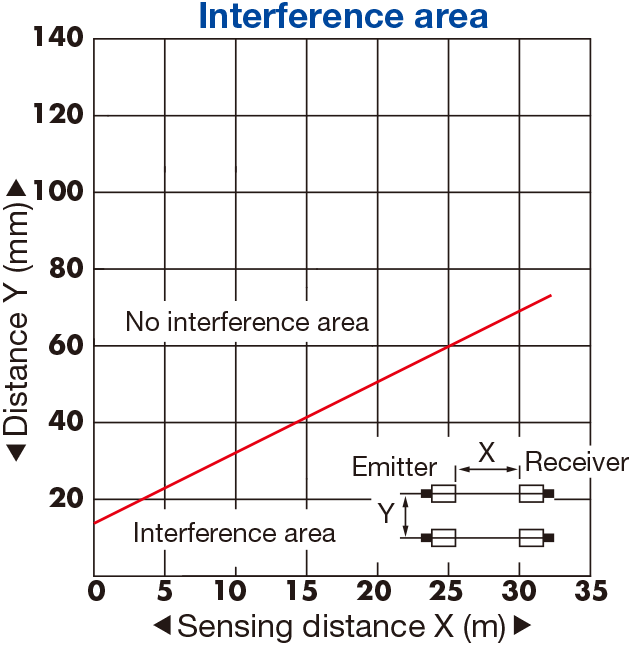

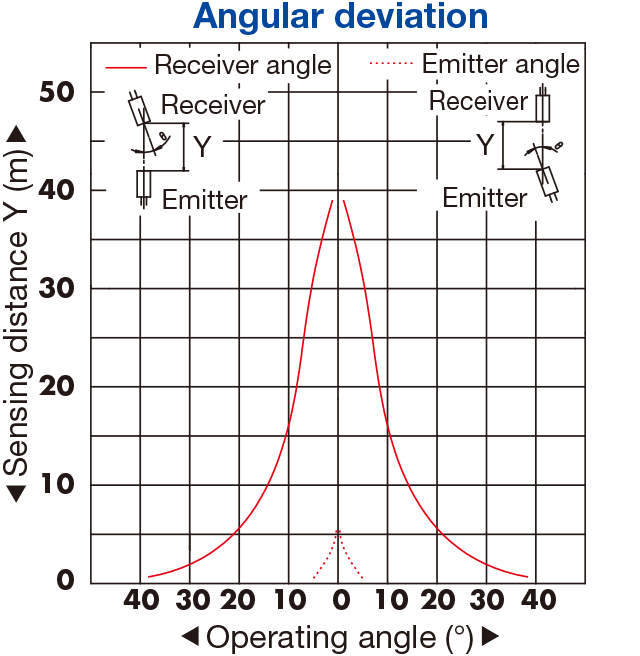

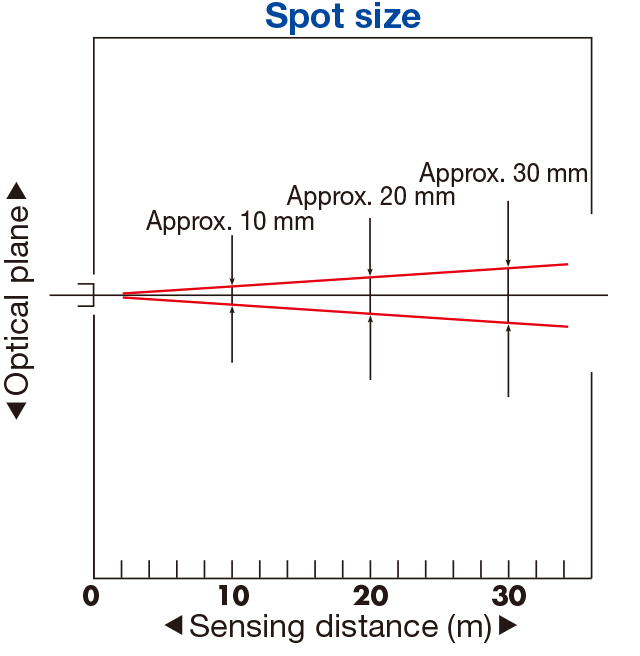

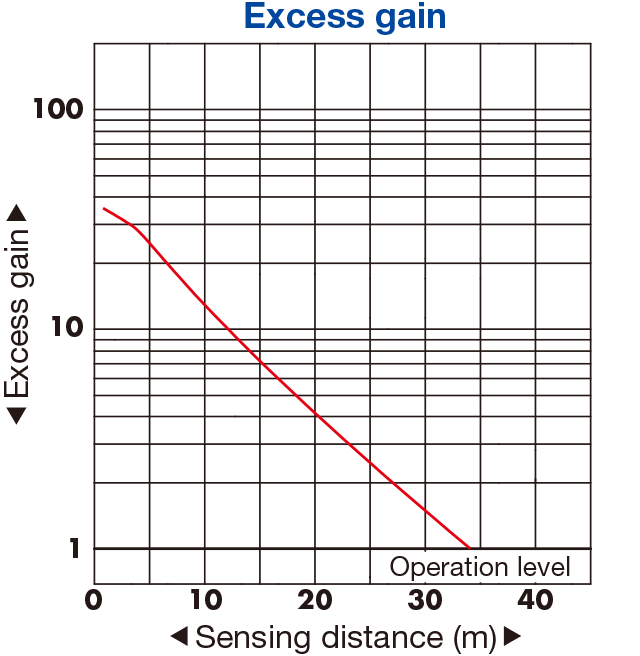

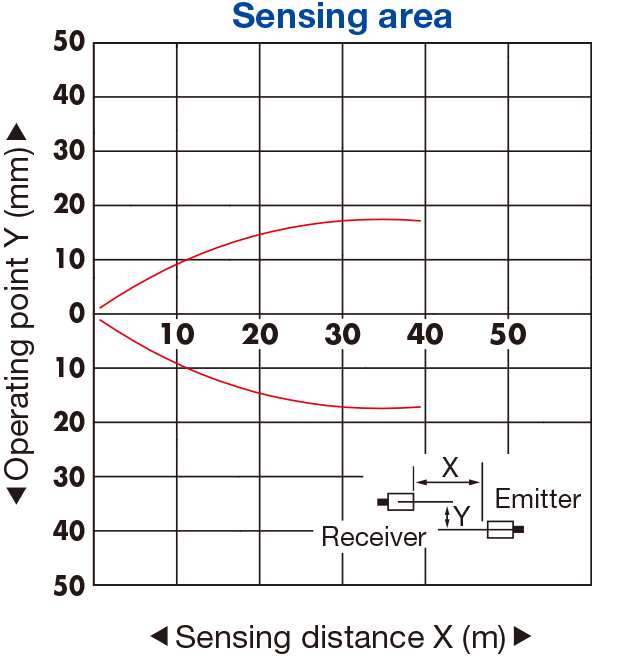

ZT-L3000☐

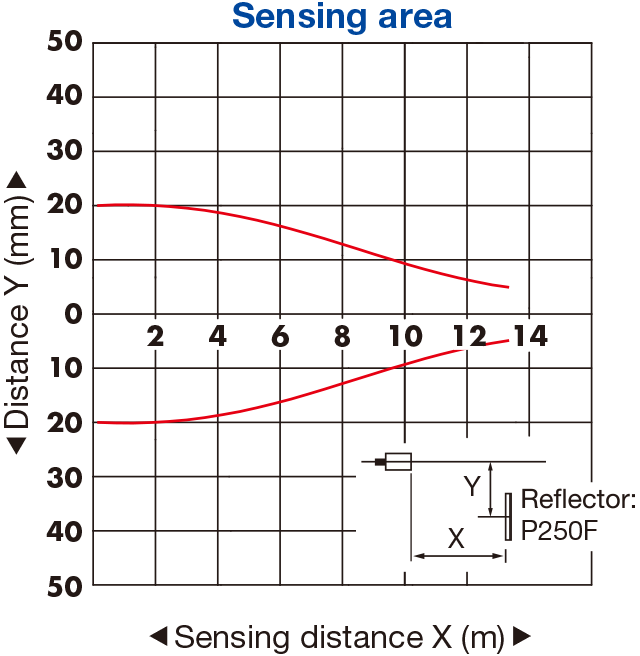

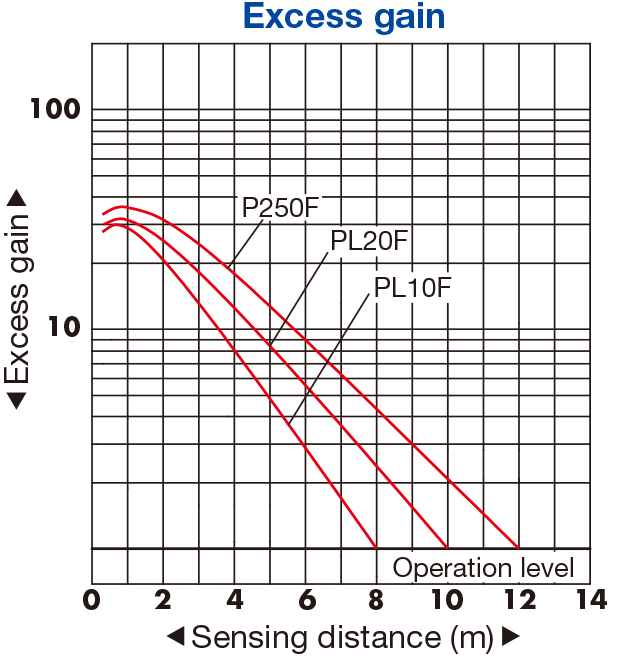

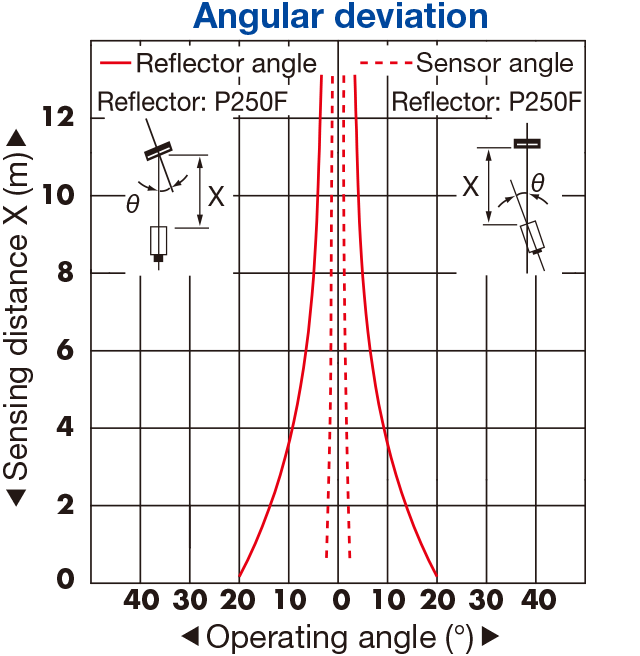

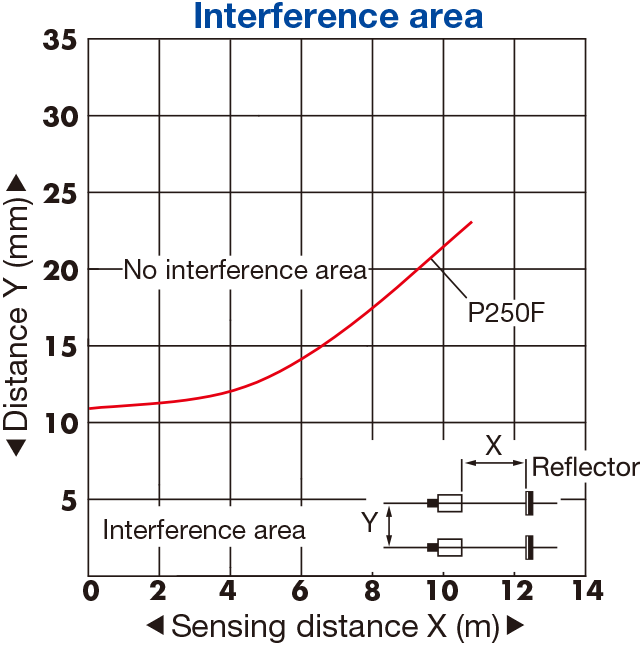

ZR-L1000☐

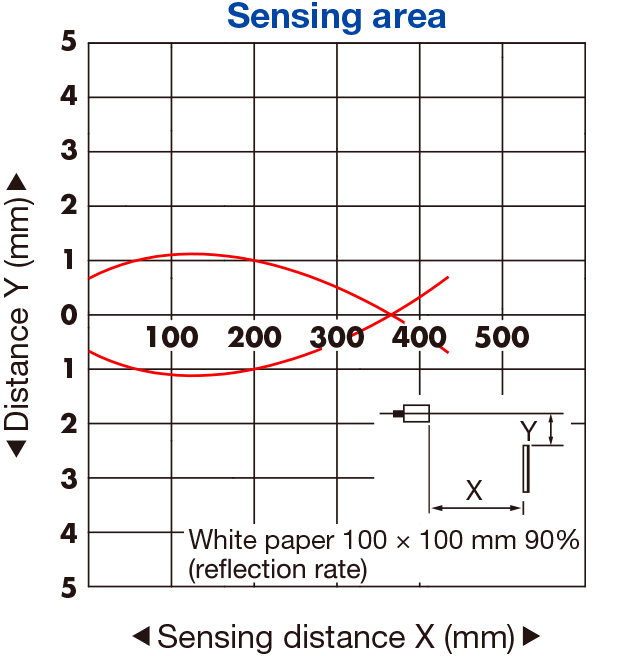

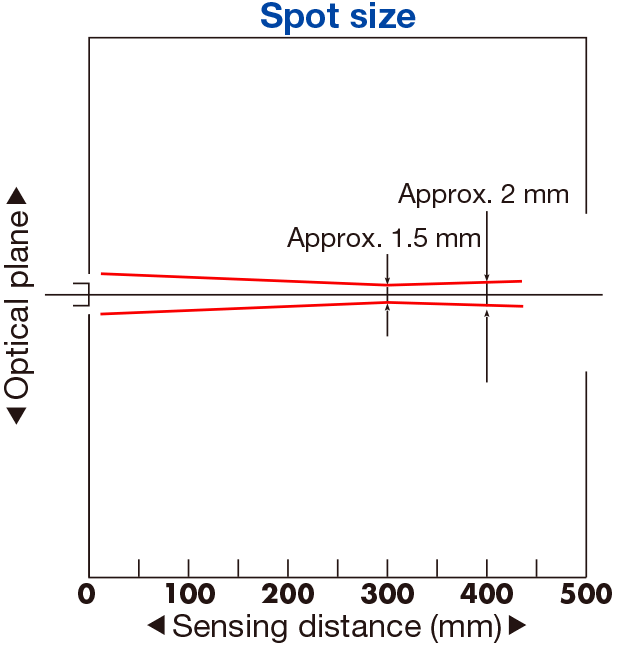

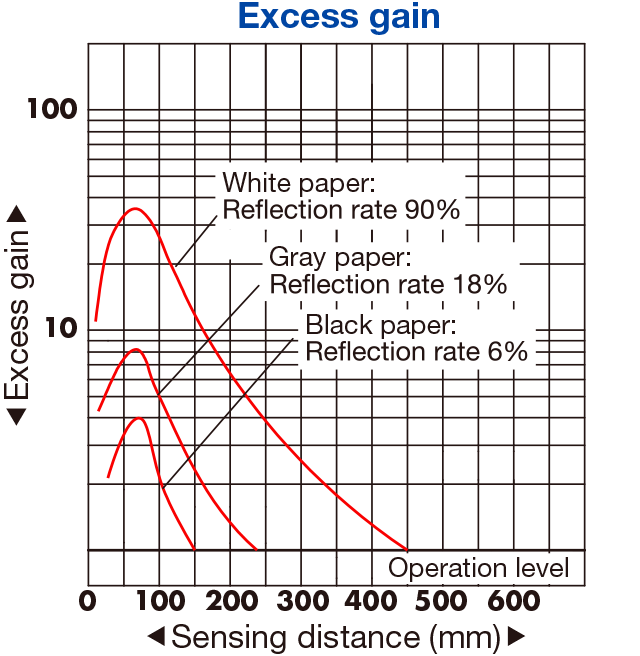

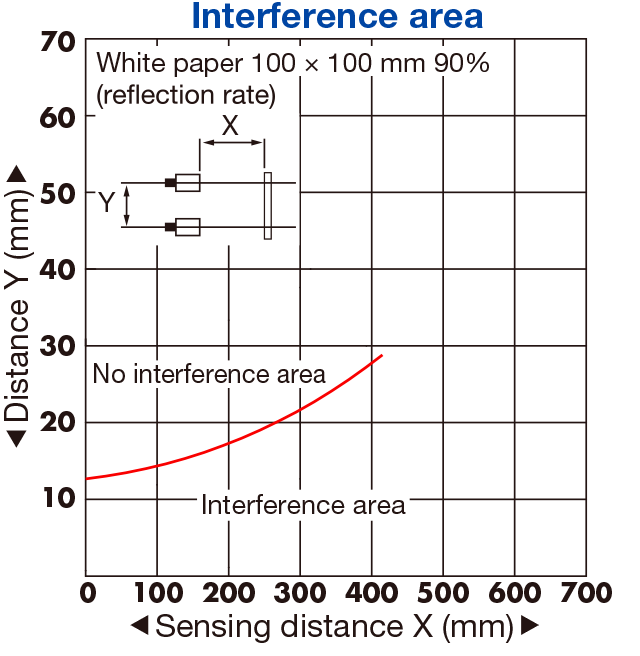

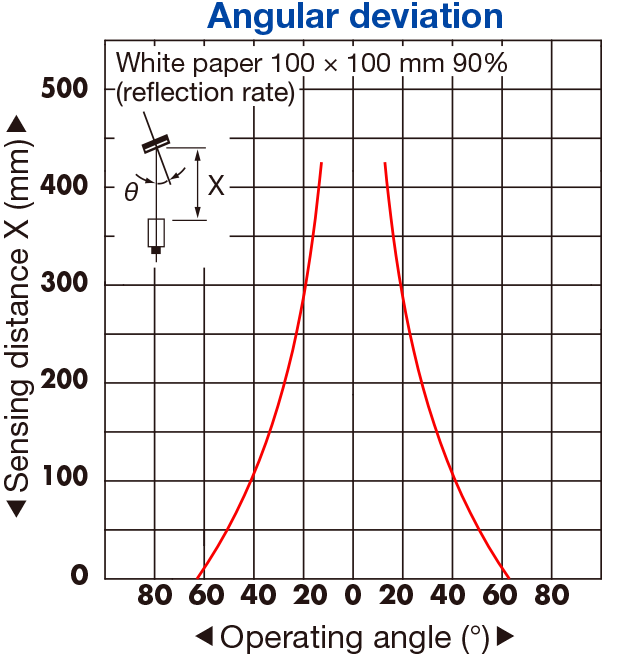

ZD-L40☐
