Circuit Diagram

Output circuit diagram

Retro-reflective type/Diffuse-reflective type

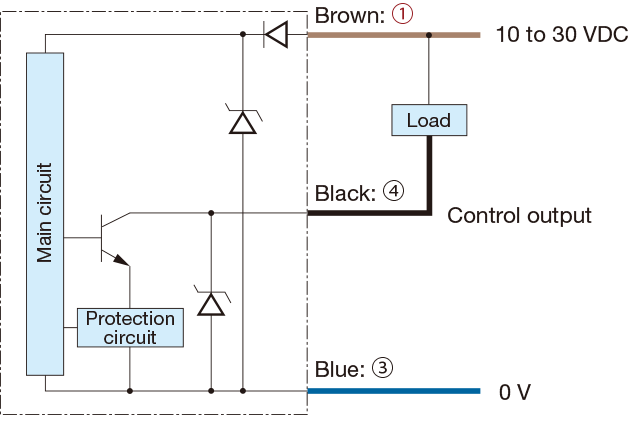

• NPN output type

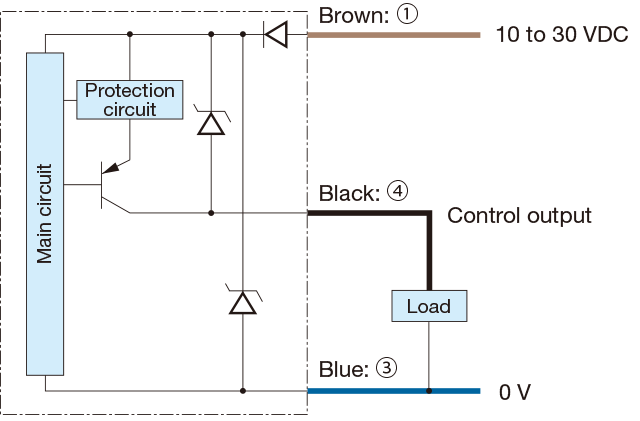

• PNP output



Through-beam type receiver

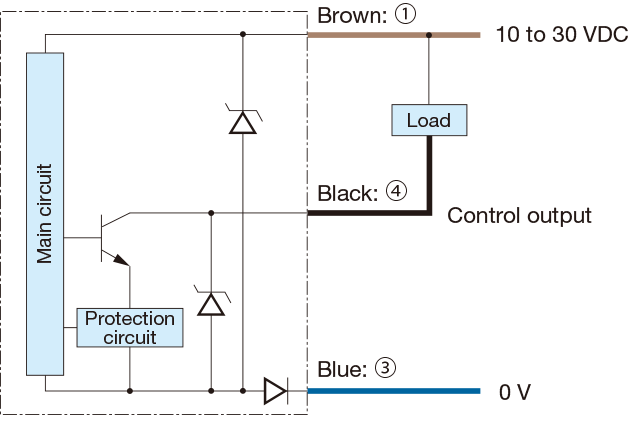

• NPN output type



• PNP output type

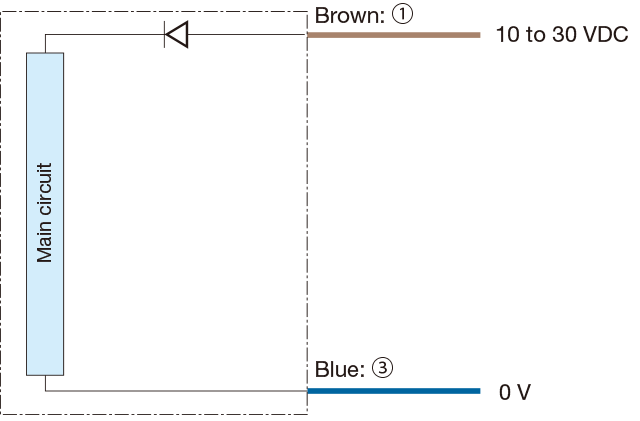

• Through-beam type emitter

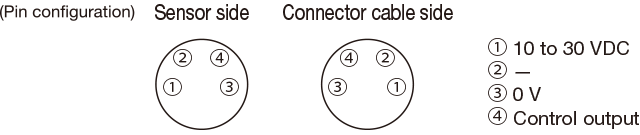

• Connector type



  Connecting

  • 1 to 4 are connector pin No.

  Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
  • Avoid using the transient state while the power is on (approx. 100 ms).

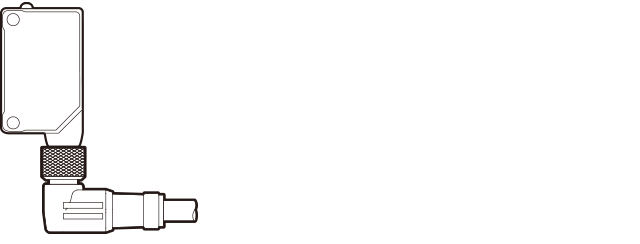

  • The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.
