Dimensions

Sensor

• Cable type



Reflector

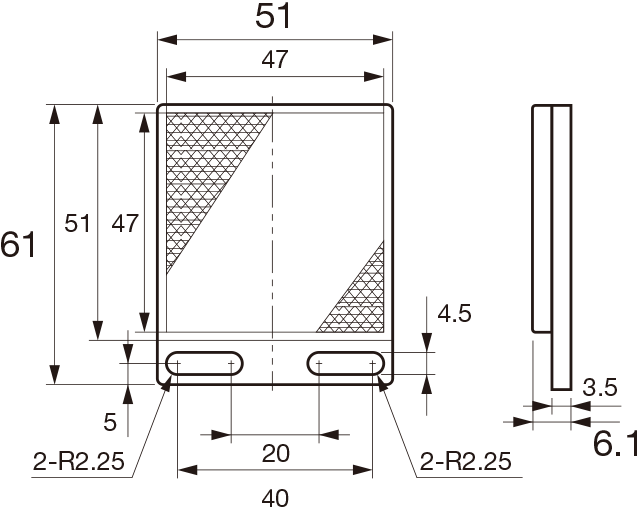

• P250F
  (included with ZR-L1000N)

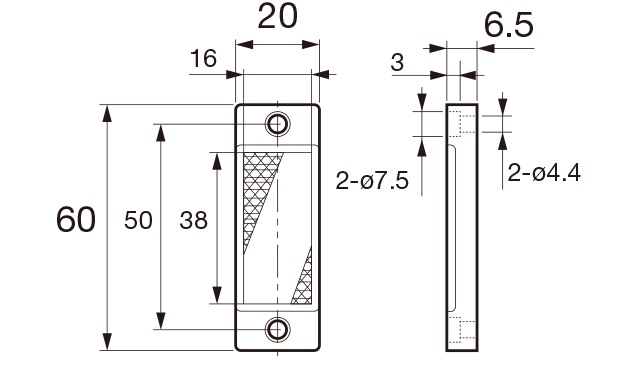

• PL20F (optional)

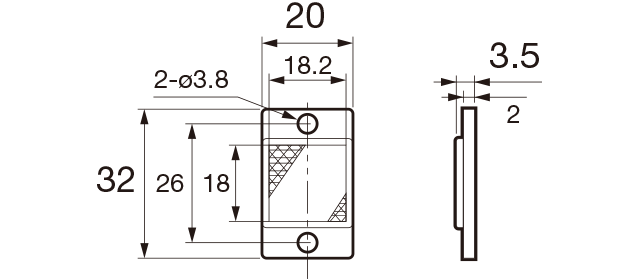

• PL10F (optional)



Connector cable (optional)

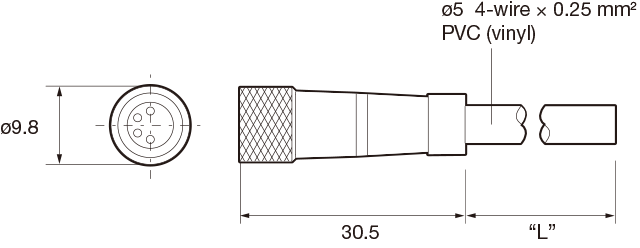

• JCN-S, JCN-5S, JCN-10S

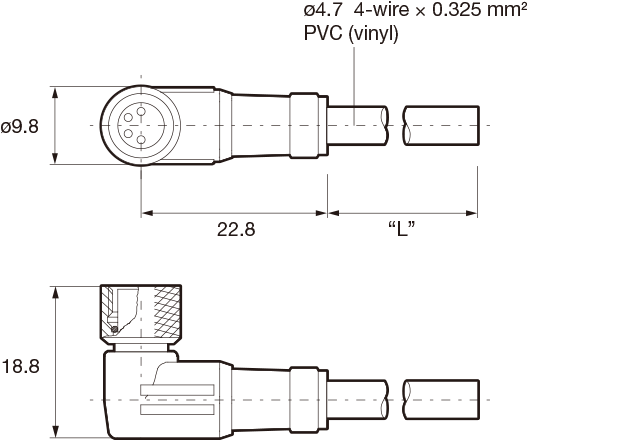

• JCN-L, JCN-5L, JCN-10L



Successor models

• M84CN-2S, M84CN-5S, M84CN-10S



• M84CN-2L, M84CN-5L, M84CN-10L



Mounting bracket

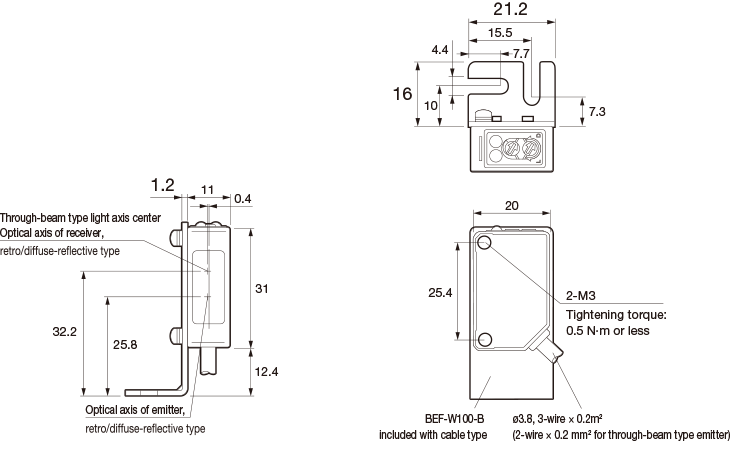

Cable type (when using BEF-W100-B)

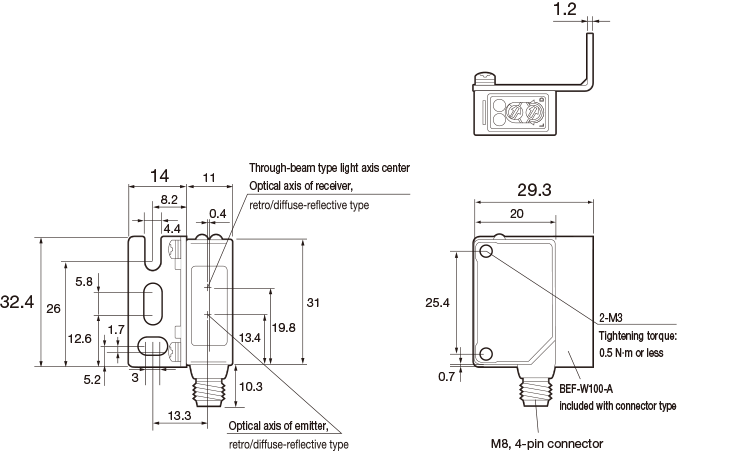

Connector type (when using BEF-W100-A)

Notes for sensor usage

•

• ■ Regarding the laser label, this product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. A CLASS 2/CLASS II warning label and explanation label (English) is affixed to the side of the sensor head.
  *The ZT-L3000N emitter is Class II in FDA standards (when exported to the United States), but is Class 1 according to JIS/IEC standards, so change the label that it is packaged with for use.
