Specifications

Technical Data

Type			C-MOS laser sensors
Model	NPN	Cable type	BGS-DL10TN	BGS-DL25TN
	NPN	Connector type	BGS-DL10TCN	BGS-DL25TCN
	PNP	Cable type	BGS-DL10TP	BGS-DL25TP
	PNP	Connector type	BGS-DL10TCP	BGS-DL25TCP

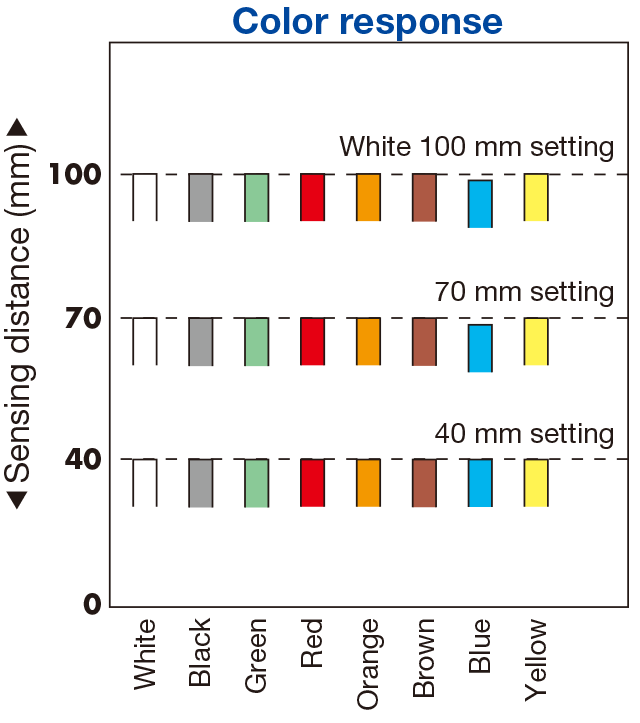

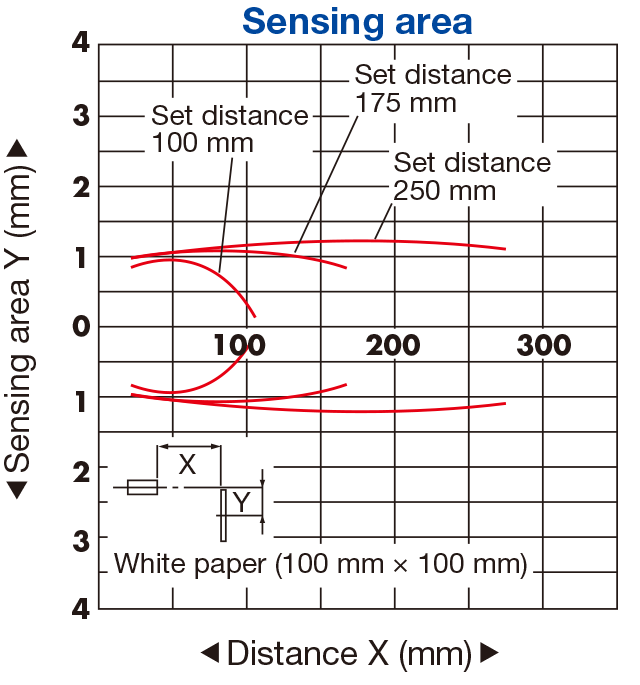

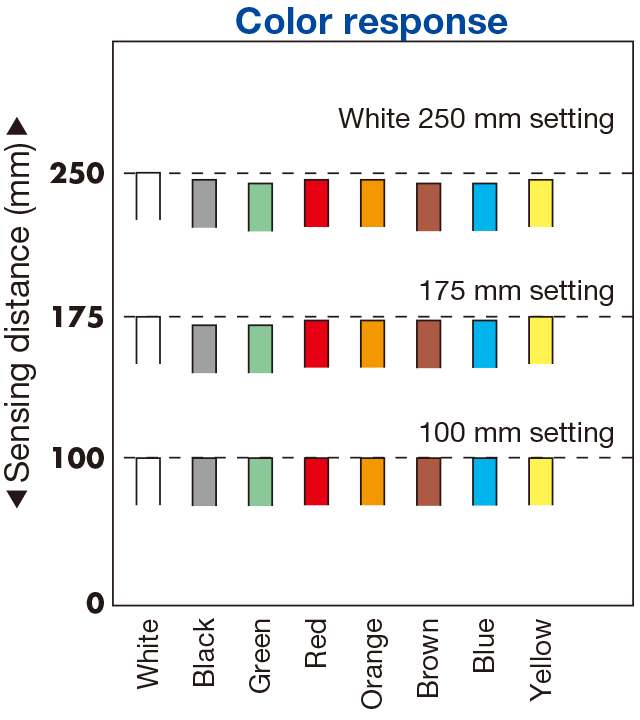

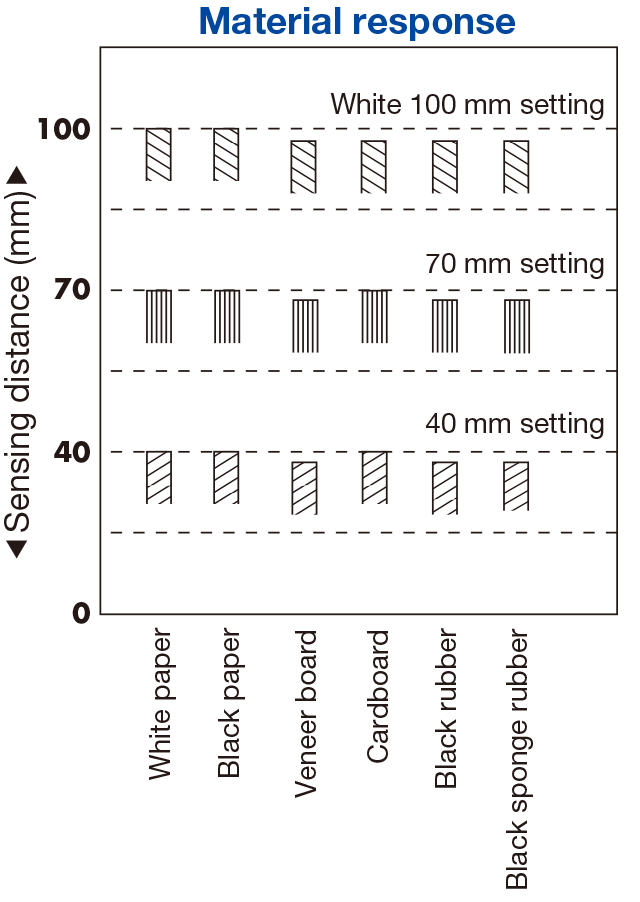

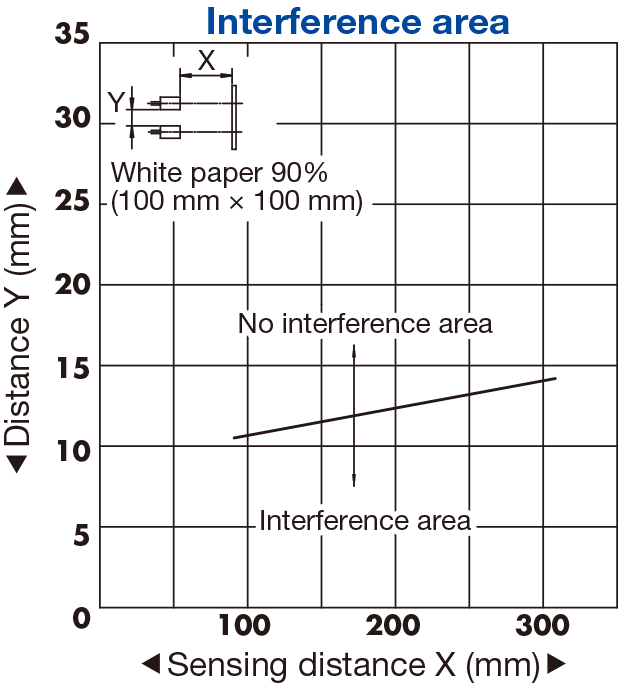

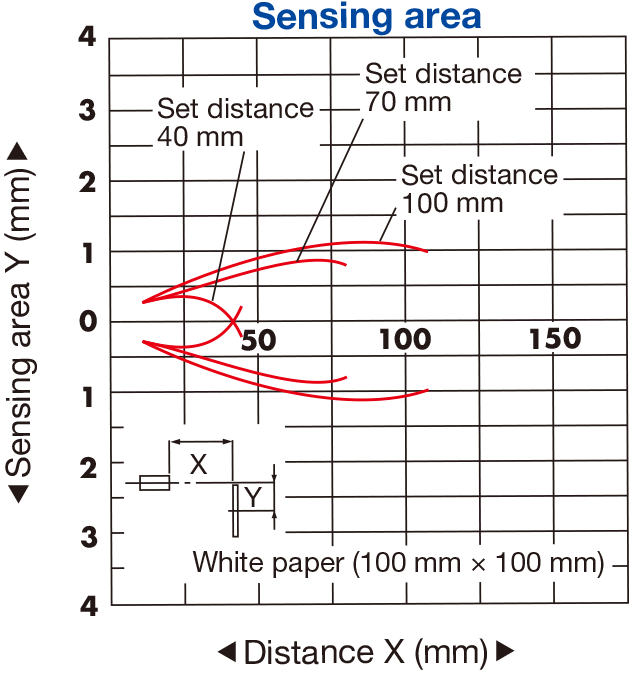

Sensing distance			20 to 100 mm*¹	20 to 250 mm*¹
Adjustable distance range			40 to 100 mm*¹	100 to 250 mm*¹
Light source			Red semiconductor laser Class 2 (IEC/JIS)*² Wavelength: 650 nm Pulse width: 300 μs Maximum output: 1 mW

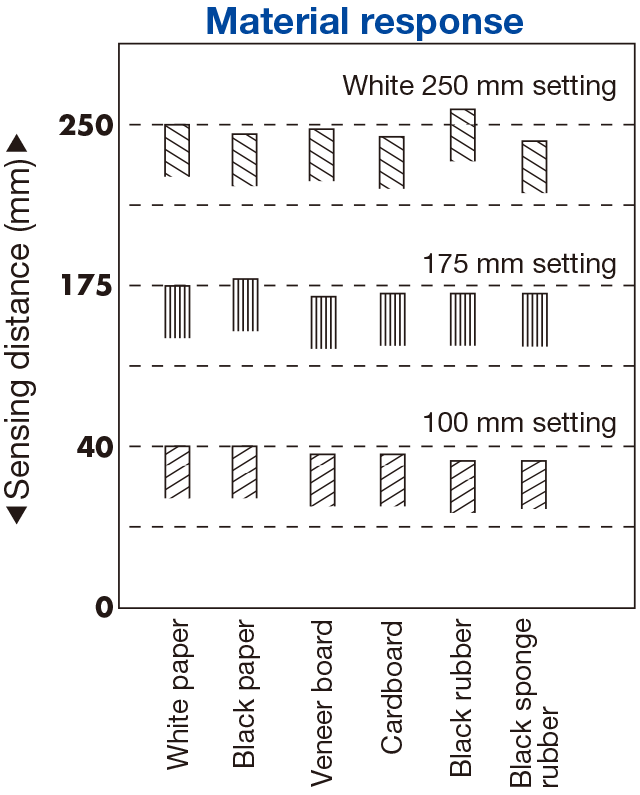

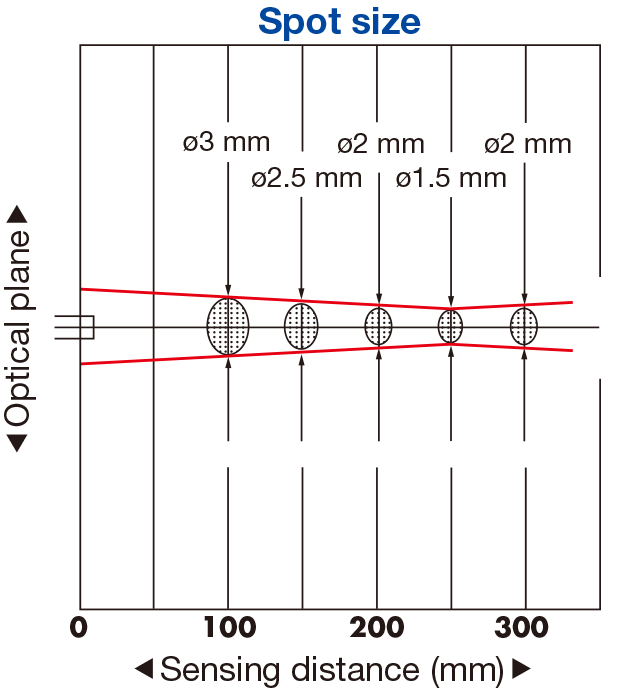

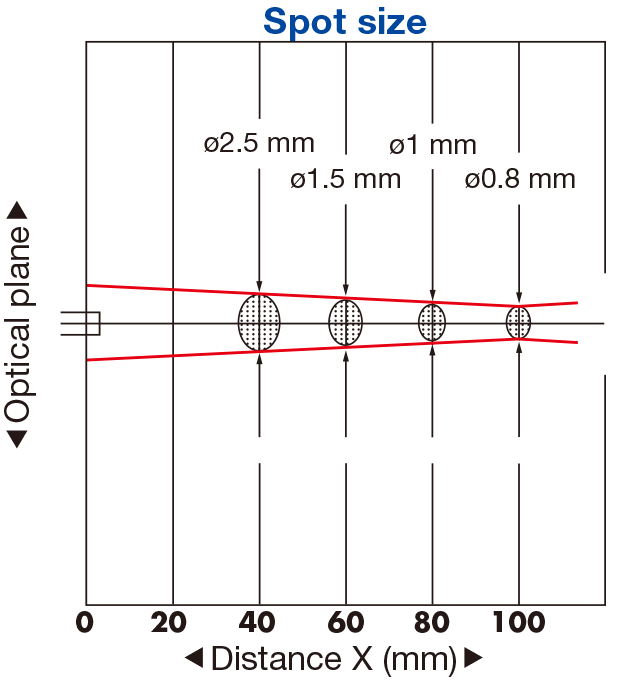

Spot size			Approx. ø1 mm At distance of 80 mm	Approx. ø2 mm At distance of 200 mm
Response time			1.5 ms (when sensitivity is fixed), Max. 14 ms (when sensitivity is in Auto)

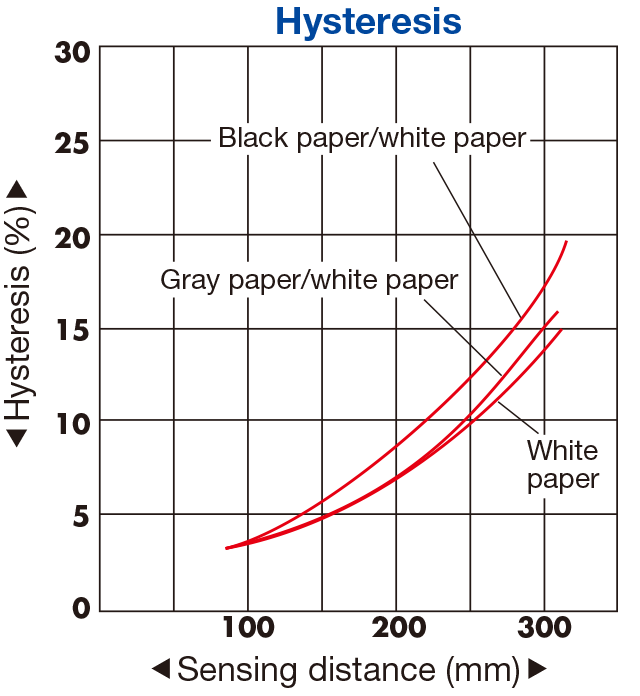

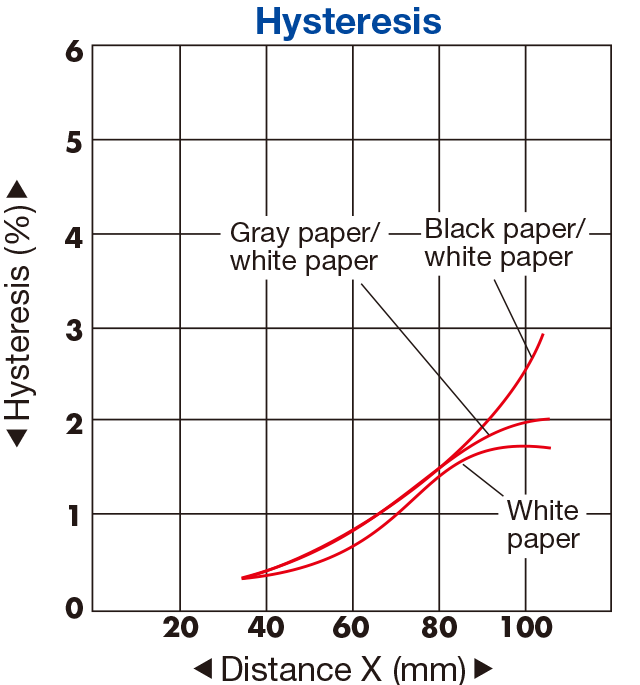

Hysteresis			3% or less	10% or less
Distance adjustment			Teaching type
Threshold adjustment			Manual adjustment is possible after teaching
Indicators			Output indicator (orange) Laser emission indicator (green)
Digital display			7-segment, 3-digit display
Control output			NPN/PNP open collector Max. 100 mA/30 VDC
External input			Laser OFF input or teaching input (selectable by setting)
Timer function			ON delay / OFF delay /One-shot 0 to 999 ms (setting is possible in 1 ms increments), 1 to 10 s (setting is possible in 1 s increments)
Output mode			Light ON / Dark ON selectable by setting
Connection type			Cable type: Cable length: 2 m (ø4 mm) / Connector type: M8, 4-pin
Insulation resistance			20 MΩ or more (with 500 VDC)
Rating	Supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Rating	Current consumption		50 mA max (12 V), 35 mA max (24 V)
Applicable regulations			EMC directive (2004/108/EC) / FDA regulations (21 CFR 1040.10)
Applicable standards			EN 60947-5-2
Company standards			Noise resistance: Feilen Level 3 cleared
Environmental resistance	Ambient temperature/humidity		-10 to +40℃ / 35 to 85% RH
	Ambient illuminance		Sunlight: 10,000 lx or less Incandescent light: 3,000 lx or less
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 50 G (500 m/s²); 3 times in each of the X, Y, and Z directions
	Degree of protection		IP67
Material			Housing: ABS Front cover: PMMA
Weight without cable			Approx. 20 g (excluding cable)
Included accessories			Mounting bracket: BEF-WK-190

*1.Using a 100 × 100 mm white sheet of paper.
*2.Classified as Class II in the US FDA standards.

Distance adjustment

•To adjust threshold using the buttons, press the Up or Down button one time. Doing so will result in the status display showing the threshold, which can be adjusted when flashing by using the Up and Down buttons. Pressing Teaching Mode will result in a return to Run Mode. (Even if Teaching Mode is not pressed, a return to Run Mode will occur after 10 sec.)
