Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models

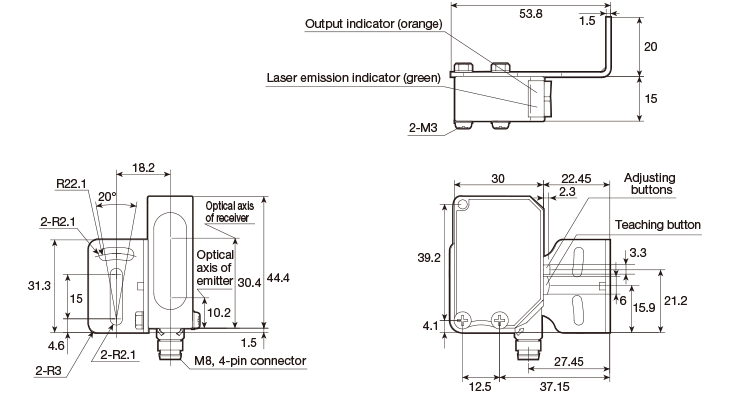

Dimensions
Unit: mm
Sensor
-

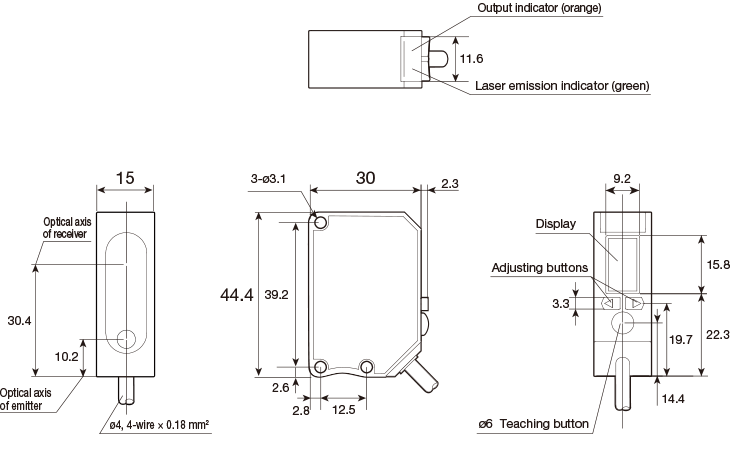

Cable type sensor

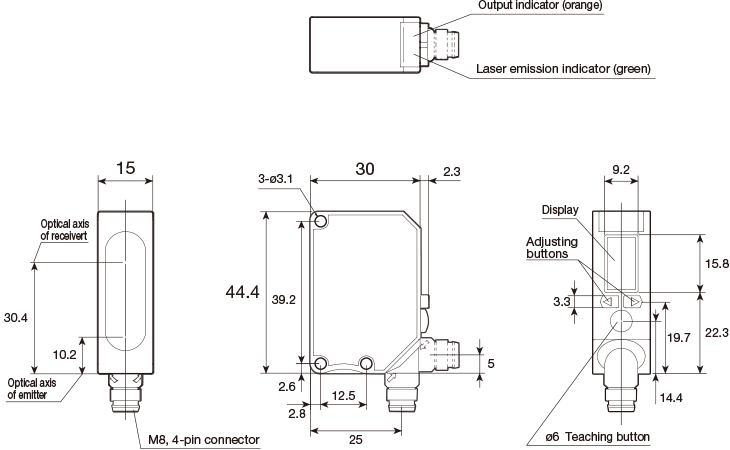

Connector type

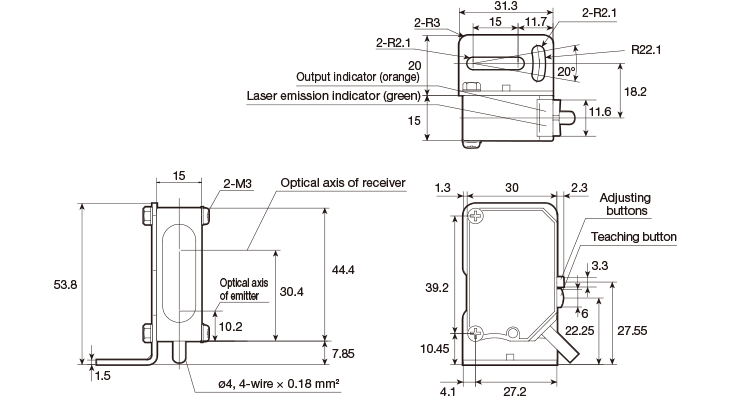

Mounting bracket
Cable type
Connector type
Connector cable (optional)
-

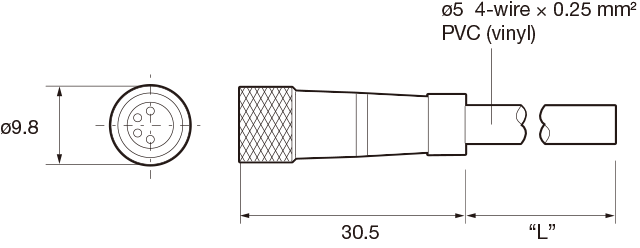

JCN-S, JCN-5S, JCN-10S
-

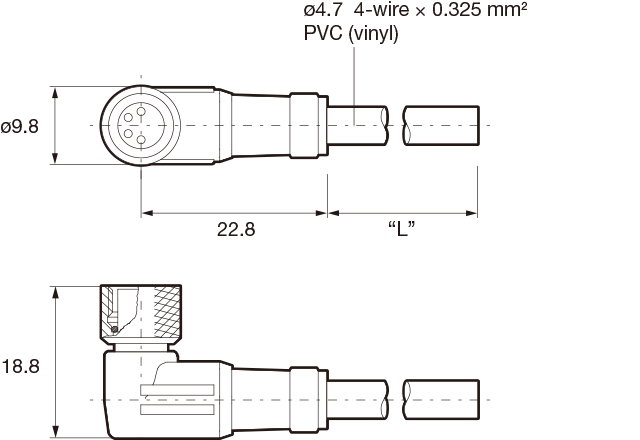

JCN-L, JCN-5L, JCN-10L
Successor models
-
M84CN-2S, M84CN-5S, M84CN-10S
-

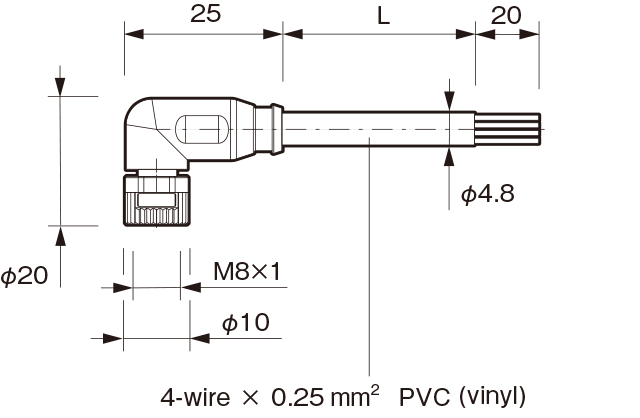

M84CN-2L, M84CN-5L, M84CN-10L
Mounting bracket
-

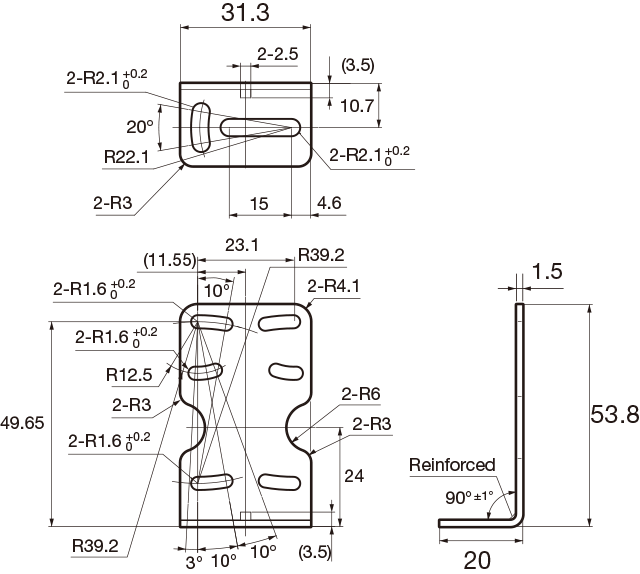

BEF-WK-190 (included)
Notes for sensor usage
-
This product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. Warning and explanation labels are affixed to the sides of the sensor.
-
