Circuit Diagram

I/O circuit diagram

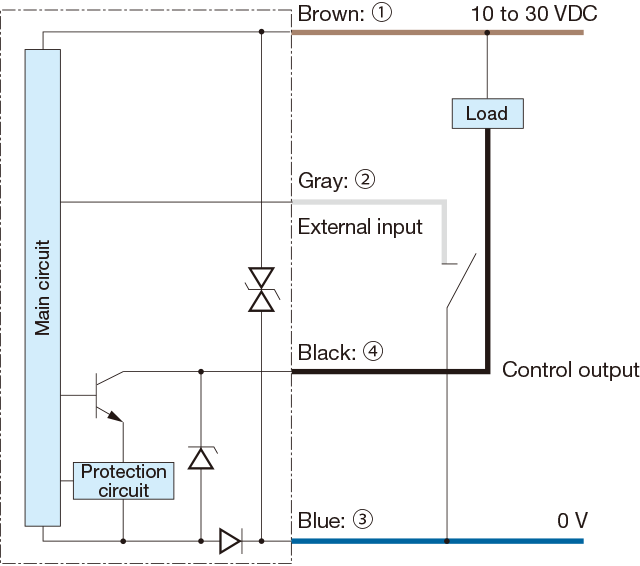

• NPN output type

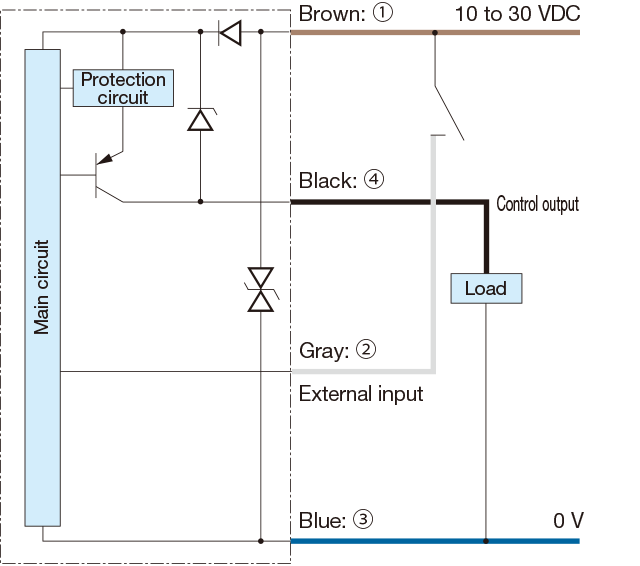

• PNP output type

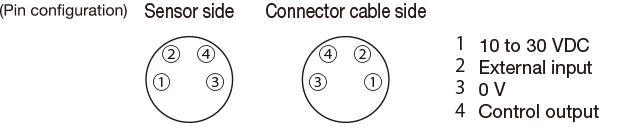

• Connector type



• Connecting

  ▪ When not used for external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.
  ▪ 1 to 4 are connector pin No.

  Notes

  ▪ Connect frame ground to the earth when the switching regulator is used for power brsupply.
  ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  ▪ Avoid using the transient state while the power is on (approx. 100 ms).

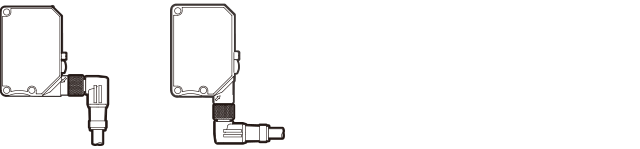

  ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
