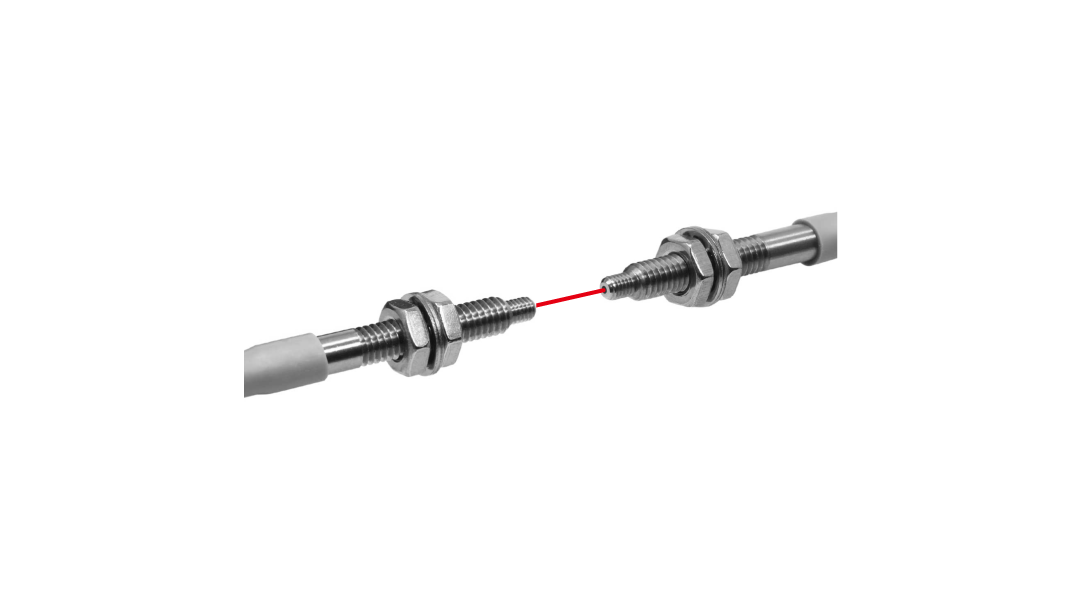

NF Series Heat resistant type

NF-TM4-H20

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	61772
Model	NF-TM4-H20
Category	Heat resistant type
Type	M4 Lens attachable
Detection method	Through-beam type
Optical axis direction	Straight view
Shape of fiber head	M4 30 mm long
Sleeve	-
Optical axis diameter	ø0.7 mm
Fiber length	2 m
Free-cut	-
Min. bending radius	R10 mm
Degree of protection	IP67
Ambient temperature	-40 ... +200°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	-
Weight
Included items	M4 Hex nut x 4, M4 Toothed washer x 4, Protective cap x 4

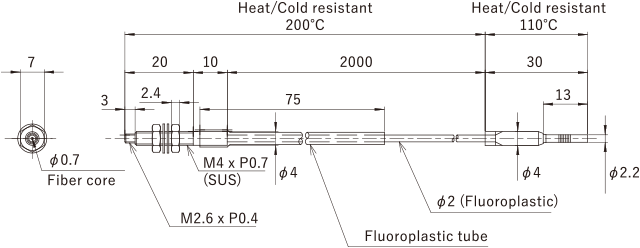

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,000 (8 ms) 1,700 (2 ms) 1,300 (1 ms) 1,100 (500 μs) 900 (250 μs) 550 (70 μs) 200 (16 μs/22 μs)		1,780 (4 ms) 1,105 (1 ms) 780 (250 μs) 275 (50 μs)

Due to product specifications, the D4RF Series Fiber-Optic Sensors do not support fiber insertion indicators.

Unit: mm

Type	Part No.	Model
Attachment lens Long range lens	61775	NF-TA33
Attachment lens Ultra-long range lens	61777	NF-TA34
Attachment lens Side-view lens	61776	NF-TA35

Please refer to the Correct Use of all Fiber-Optic Cables.
