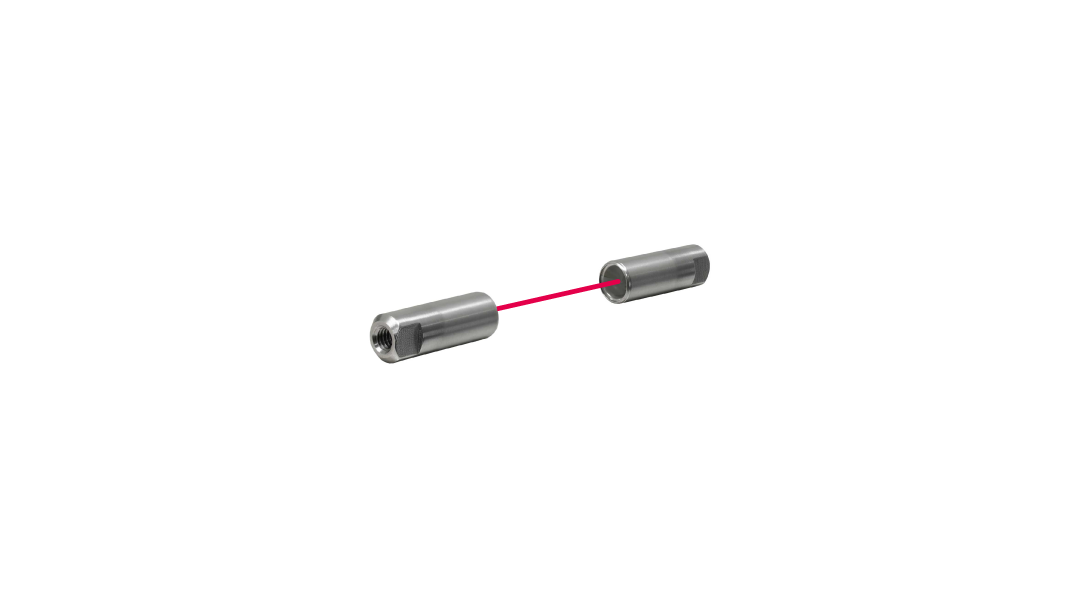

NF Series Attachment lens

NF-TA34

  • Ultra-long range lens

CAD & Drawings
  • PDF
Related Series
Browse and download catalogs and manuals on the product series page.
Part No. 61777
Model NF-TA34
Category Attachment lens
Type Ultra-long range lens
Detection method Through-beam type
Optical axis direction Top view
Optical axis diameter ø7.2 mm
Dimensions ø7.8 mm x 22.5 mm
Internal thread size M4
Applicable Fiber-Optic Cables NF-TR4F, NF-TM4-H10, NF-TM4-H15, NF-TM4-H20, NF-TM4-H35
Ambient temperature -40 ... +350°C
0 ... 40°C (at 85 % RH)
Applicable regulations -
Weight
Quantity 2 pcs.
Included items -

Sensing Distance with D4RF Series

Unit: mm

  • Fiber-Optic Sensor D4RF Series
Applicable Fiber-Optic Cables Sensing distance by response time [mm]
8 ms 2 ms 1 ms 500 μs 250 μs 70 μs 16 μs/22 μs
NF-TR4F 3,500 3,500 3,500 3,500 3,500 3,500 3,500
NF-TM4-H10 3,500 3,500 3,500 3,500 3,500 3,500 3,500
NF-TM4-H15 3,500 3,500 3,500 3,500 3,500 3,500 3,500
NF-TM4-H20 3,500 3,500 3,500 3,500 3,500 3,500 3,500
NF-TM4-H35 3,500 3,500 3,500 3,500 3,500 3,500 3,500

Sensing Distance with D12R Series

Unit: mm

  • Fiber-Optic Sensor D12R Series
Applicable Fiber-Optic Cables Sensing distance by response time [mm]
4 ms 1 ms 250 μs 50 μs
NF-TR4F 3,500 3,500 3,500 3,500
NF-TM4-H10 3,500 3,500 3,500 3,500
NF-TM4-H15 3,500 3,500 3,500 3,500
NF-TM4-H20 3,500 3,500 3,500 3,500
NF-TM4-H35 3,500 3,500 3,500 3,500

Dimensions

Unit: mm

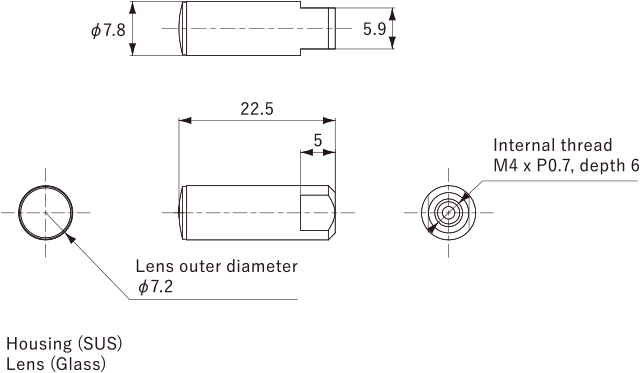

  • NF-TA34
