NF Series Heat resistant type

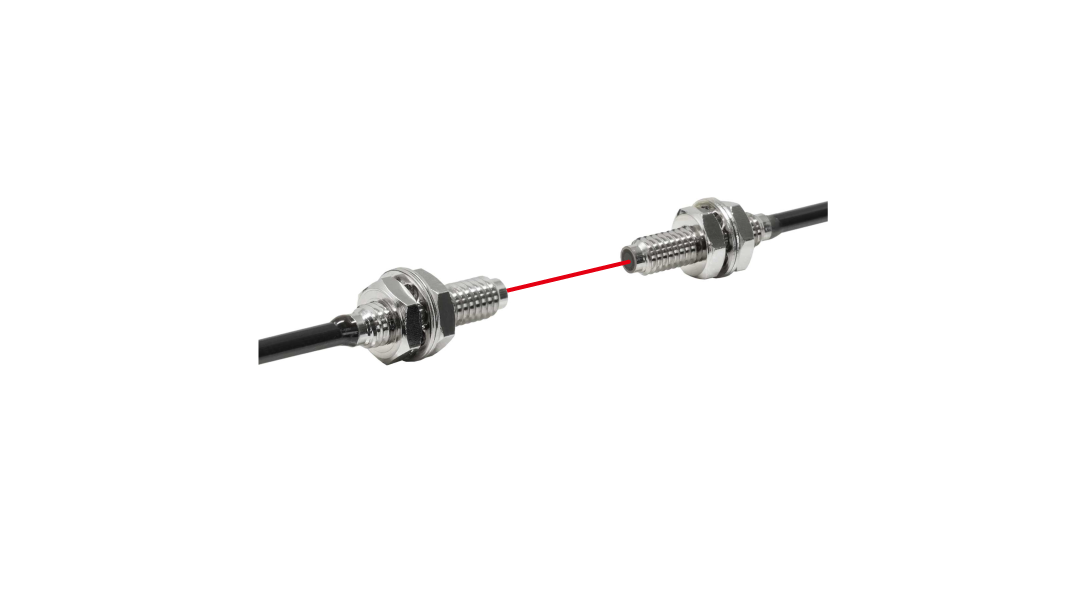

NF-TM4-H15

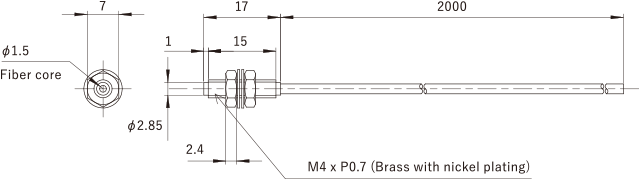

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	61769
Model	NF-TM4-H15
Category	Heat resistant type
Type	M4 Lens attachable
Detection method	Through-beam type
Optical axis direction	Straight view
Shape of fiber head	M4 17 mm long
Sleeve	-
Optical axis diameter	ø1.5 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R35 mm
Degree of protection	IP67
Ambient temperature	-40 ... +150°C -40 ... +130°C (Continuous use) 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	-
Weight
Included items	Fiber cutter, M4 Hex nut x 4, Toothed washer x 4

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,500 (8 ms) 3,500 (2 ms) 3,500 (1 ms) 2,500 (500 μs) 2,000 (250 μs) 1,600 (70 μs) 500 (16 μs/22 μs)		3,500 (4 ms) 2,285 (1 ms) 1,630 (250 μs) 630 (50 μs)

Unit: mm

Type	Part No.	Model
Fiber cutter	20228	NFC-F01

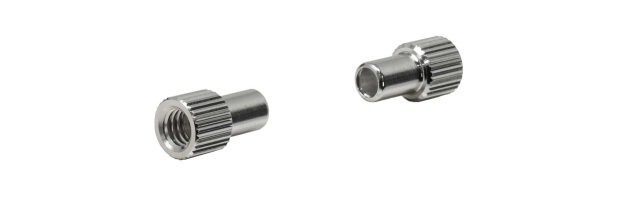

Attachment lens Long range lens	61778	NF-TA36
Attachment lens Utra-long range lens	61777	NF-TA34

Please refer to the Correct Use of all Fiber-Optic Cables.
