Specifications
| Part No. | 61778 |
|---|---|
| Model | NF-TA36 |
| Category | Attachment lens |
| Type | Long range lens |
| Detection method | Through-beam type |
| Optical axis direction | Top view |
| Optical axis diameter | ø3.0 mm |
| Dimensions | ø6.0mm x 11.0 mm |
| Internal thread size | M4 |
| Applicable Fiber-Optic Cables | NF-TM4-H15 |
| Ambient temperature |
-40 ... 200°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | - |
| Weight | |
| Quantity | 2 pcs. |
| Included items | - |
Sensing Distance with D4RF Series
Unit: mm
| Applicable Fiber-Optic Cables | Sensing distance by response time [mm] | ||||||
|---|---|---|---|---|---|---|---|
| 8 ms | 2 ms | 1 ms | 500 μs | 250 μs | 70 μs | 16 μs/22 μs | |
| NF-TM4-H15 | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 | 2,500 |
Sensing Distance with D12R Series
Unit: mm
| Applicable Fiber-Optic Cables | Sensing distance by response time [mm] | ||||||
|---|---|---|---|---|---|---|---|
| 4 ms | 1 ms | 250 μs | 50 μs | ||||
| NF-TM4-H15 | 3,500 | 3,500 | 3,500 | 2,500 | |||

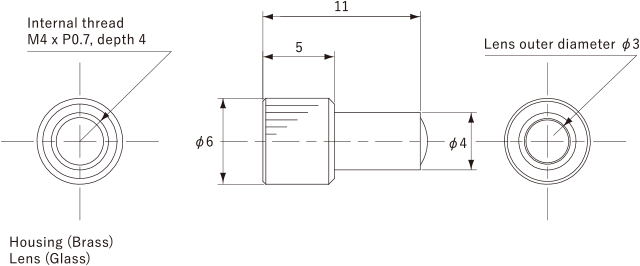

Dimensions
Unit: mm
