NF Series Heat resistant type

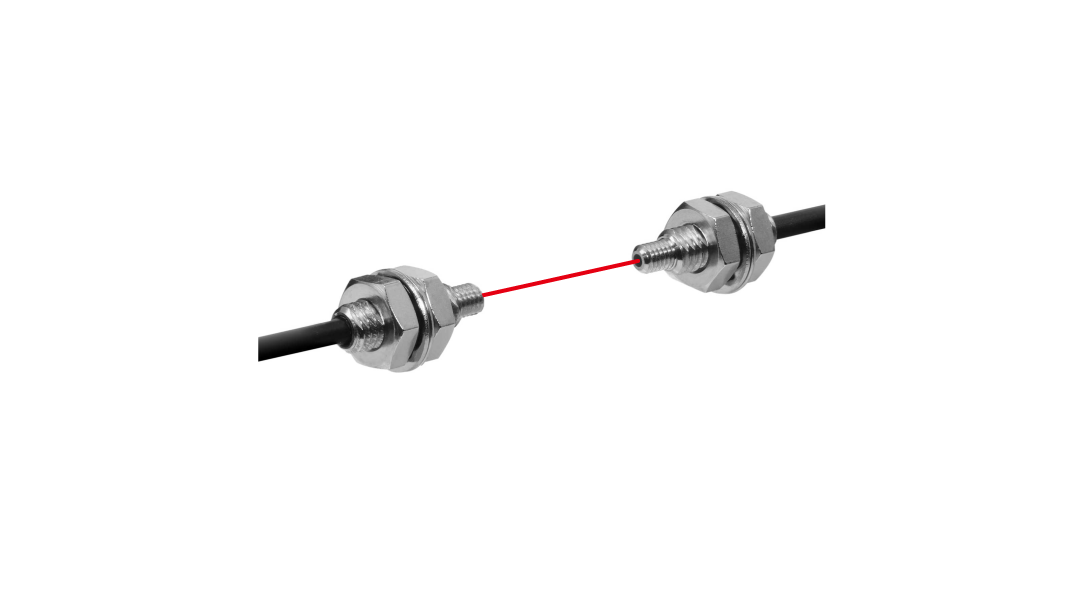

NF-TM4-H10

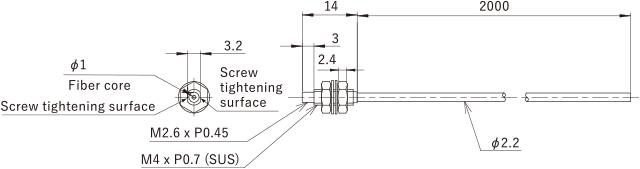

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	61770
Model	NF-TM4-H10
Category	Heat resistant type
Type	M4 Lens attachable
Detection method	Through-beam type
Optical axis direction	Straight view
Shape of fiber head	M4 14 mm long
Sleeve	-
Optical axis diameter	ø1.0 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R2 mm
Degree of protection	IP50
Ambient temperature	-40 ... +100°C -40 ... +90°C (Continuous use) 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	-
Weight
Included items	Fiber cutter, M4 Hex nut x 4, Toothed washer x 4

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,500 (8 ms) 3,500 (2 ms) 3,000 (1 ms) 2,500 (500 μs) 2,000 (250 μs) 1,200 (70 μs) 450 (16 μs/22 μs)		3,250 (4 ms) 1,935 (1 ms) 1,365 (250 μs) 470 (50 μs)

Unit: mm

Type	Part No.	Model
Fiber cutter	20228	NFC-F01

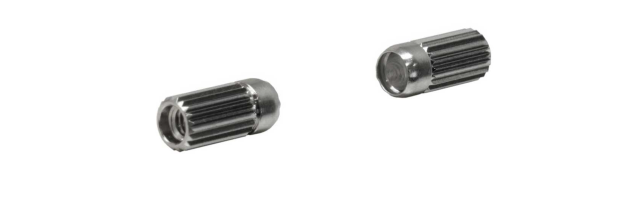

Attachment lens Long range lens	61775	NF-TA33

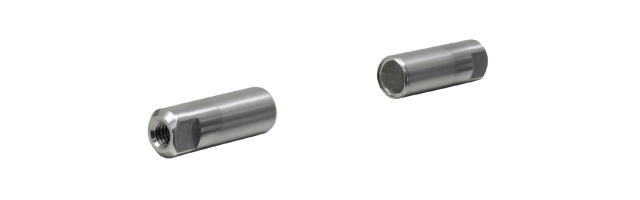

Attachment lens Ultra-long range lens	61777	NF-TA34

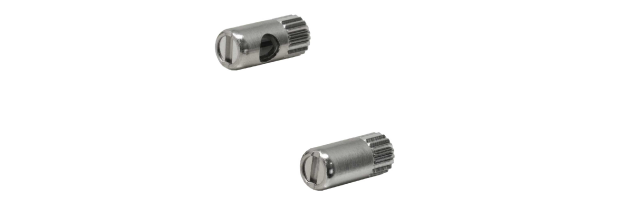

Attachment lens Side-view lens	61776	NF-TA35

Please refer to the Correct Use of all Fiber-Optic Cables.
