Dimensions

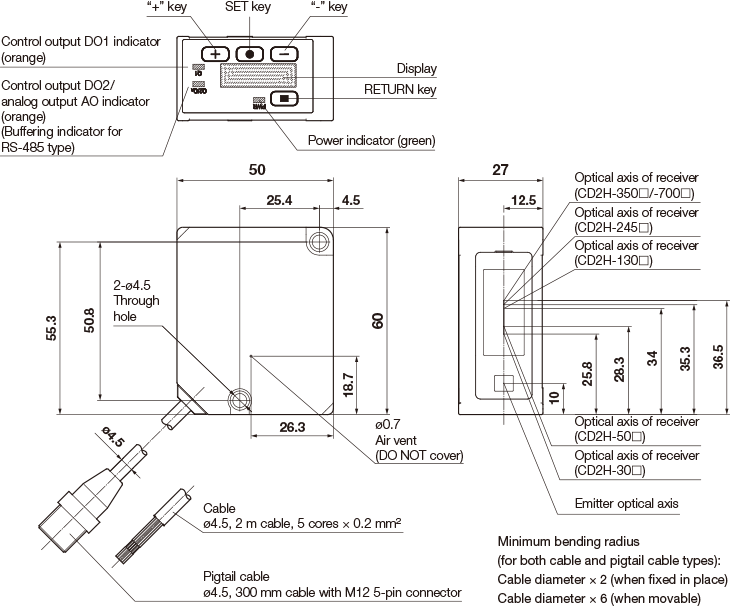

Sensor

Connector cables for IO-Link/analog output

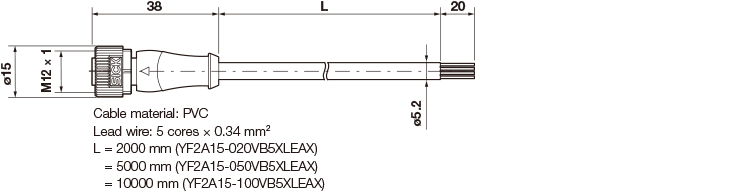

• Standard cables

  YF2A15-020VB5XLEAX
  YF2A15-050VB5XLEAX
  YF2A15-100VB5XLEAX

  Minimum bending radius:
  Cable diameter × 5 (when fixed in place)



• Bending resistant cables

  DOL-1205-G02M-R
  DOL-1205-G05M-R

  Minimum bending radius:
  Cable diameter × 2 (when fixed in place)
  Cable diameter × 6 (when movable)



Connector cables for RS-485 communication

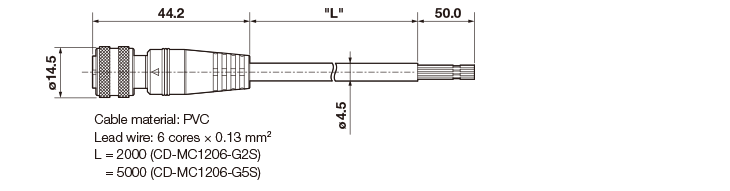

• 6-wire twisted pair cable

  CD-MC1206-G2S
  CD-MC1206-G5S

  Minimum bending radius:
  Cable diameter × 5 (when fixed in place)
  Cable diameter × 8 (when movable)

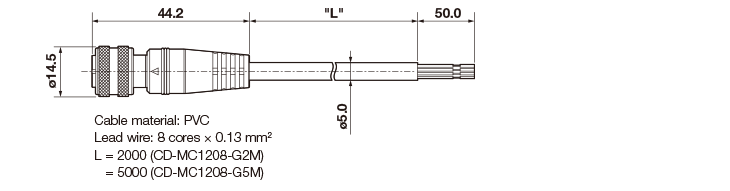

• 8-wire twisted pair cable for multi-drop

  CD-MC1208-G2M
  CD-MC1208-G5M

  Minimum bending radius:
  Cable diameter × 5 (when fixed in place)
  Cable diameter × 8 (when movable)



Mounting bracket

• BEF-WN-OD2000-B
