Accessories

Connector cables for IO-Link/analog output

• Standard cables



  YF2A15-020VB5XLEAX

  Cable length: 2 m

  YF2A15-050VB5XLEAX

  Cable length: 5 m

  YF2A15-100VB5XLEAX

  Cable length: 10 m

  Minimum bending radius
  Cable diameter × 5 (when fixed in place)

• Bending resistant cables



  DOL-1205-G02M-R

  Cable length: 2 m

  DOL-1205-G05M-R

  Cable length: 5 m

  Minimum bending radius
  Cable diameter × 2 (when fixed in place)
  Cable diameter × 6 (when movable)

Connector cables for RS-485 communication

• 6-wire twisted pair cable



  CD-MC1206-G2S

  Cable length: 2 m

  CD-MC1206-G5S

  Cable length: 5 m

  Minimum bending radius
  Cable diameter × 5 (when fixed in place)
  Cable diameter × 8 (when movable)

• 8-wire twisted pair cable for multi-drop

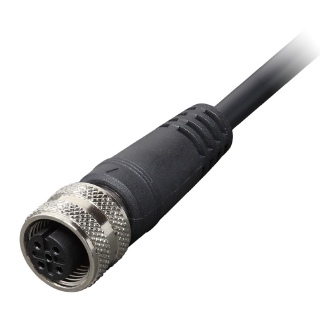

  CD-MC1208-G2M

  Cable length: 2 m

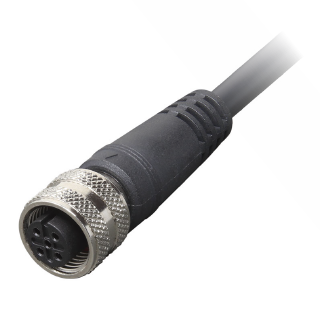

  CD-MC1208-G5M

  Cable length: 5 m

  Minimum bending radius
  Cable diameter × 5 (when fixed in place)
  Cable diameter × 8 (when movable)

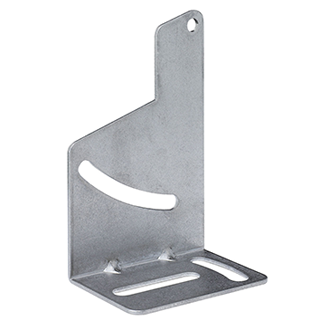

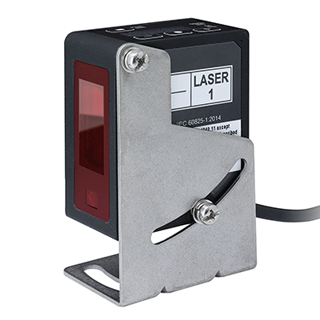

Mounting bracket

•

  BEF-WN-OD2000-B

•
