Measuring height of PWB

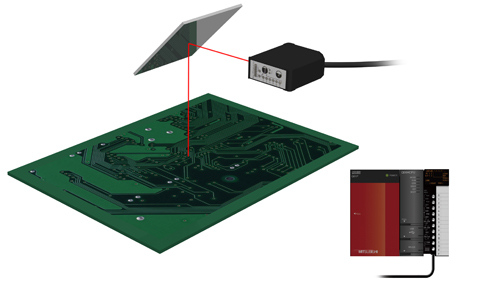

Measuring the height of the PWB with the CD33 laser diplacement sensor. When there is no space above the PWB, you can use a mirror to bend the laser beam 90 degrees and install the sensor in the narrow space. When adjusting the optical axis, it normally takes time, but since you can adjust while viewing the received waveform, the adjustment can be completed quickly.

• Small Laser Displacement Sensors

  CD33 Series

  Half-palm size. Ideal for built-in use with smaller machines



• Displacement Sensor Communication Units

  UQ1 Series

  Can be connected to Mitsubishi Electric PLCs The industry’s first displacement sensor control unit
