Detecting double fed PWB

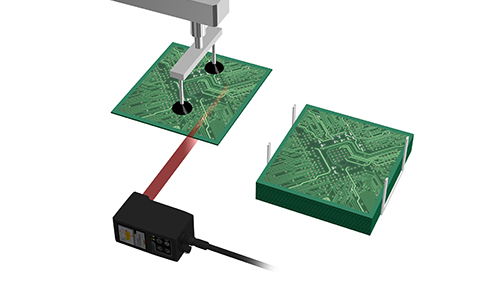

Detecting double‑fed PWB with the LS Series. Two displacement sensors could be used for this application, but mounting the sensors precisely in position is very difficult, and the sensors might also collide with the picking arm. The LS Series can be installed from the side of the picking stage, and its measurement range in the width axis is up to 27 mm, so installation is easy and the measurement can be performed with just one sensor.

• 2-dimentional Laser Displacement Sensors

  LS Series

  Line beam for fast, accurate measuring of height and width
