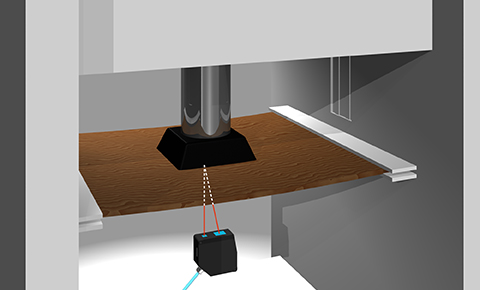

Static measurement of tension and compression test machine

Measurement of elongation of test pieces under tension testing is performed by the laser displacement sensor CDX Series. Because of its high resolution of 0.25 μm at an 85 mm measurement distance, measurement of subtle displacement differences is possible. Even when measuring with two sensors, the newly added “synchronous measurement function” enables measurement with both sensors at the same timing, so accurate measurement values can be obtained without any timing difference.

• Ultra High-Accuracy Laser Displacement Sensors

  CDX Series

  World’s No. 1 Linearity Developed image sensor: ATMOS Direct Ethernet connection Equipped with a Web Server
