Detecting PWB in many varieties

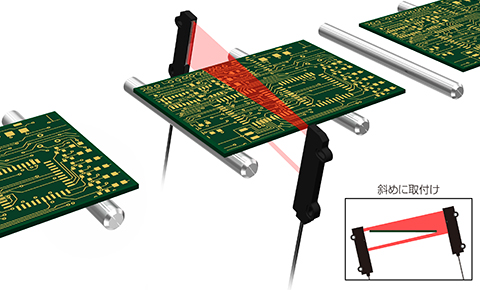

The screen fiber-optic cable NF‑TZ08 can be used for detecting PWBs to provide the pickup timing. There are many varieties of PWBs in thickness, size, and shape, and some even have holes, which can cause malfunctions with reflective‑type sensors. However, by tilting the 32‑mm‑wide thru‑beam type screen fiber NF‑TZ08 when installing it, it can detect PWBs stably regardless of their thickness, size, shape, or holes. Even when there are many types of PWBs, they can be detected at the same timing with a single‑sensor solution.

• Fiber-Optic Cables

  NF Series Wide beam type

  Fiber-Optic Cables for detecting with light screen
