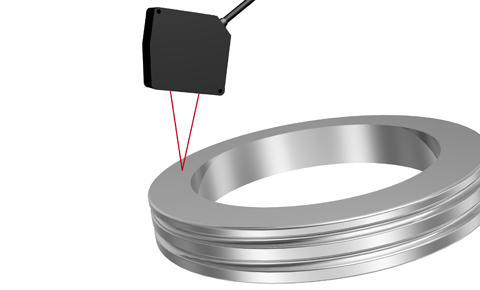

Measuring angle of rotation for inspecting aircraft component

The CD5‑W85 laser displacement sensor is used to control the rotation axis of non‑destructive inspection equipment. By measuring the top surface of the rotating high‑precision component, the angle is calculated to determine whether the machining accuracy is within the allowable range and to judge whether the part is acceptable or defective.

• High-performance Multi-unit Laser Displacement Sensors

  CD5 Series

  Next level integration of accuracy, stability, and operability
