Dimensions

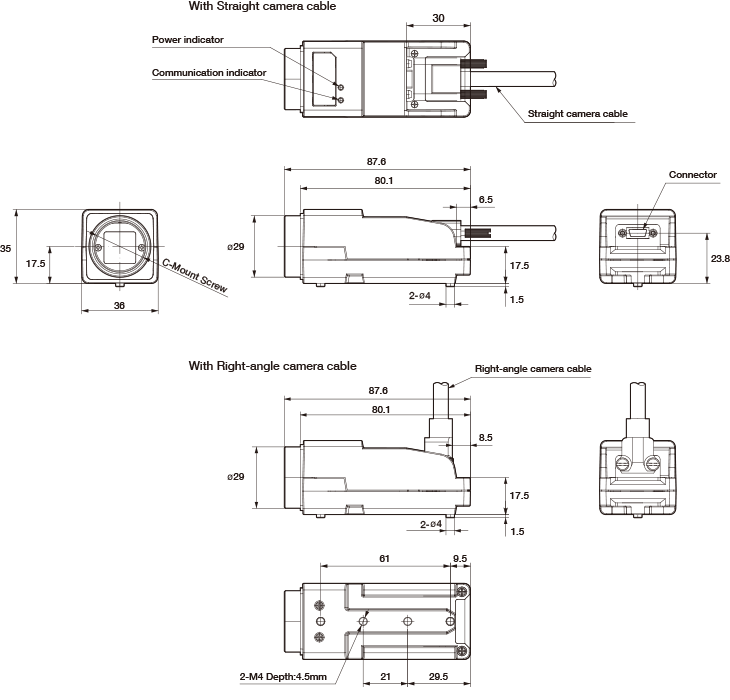

Camera unit

Model No. : MVS-OCR2

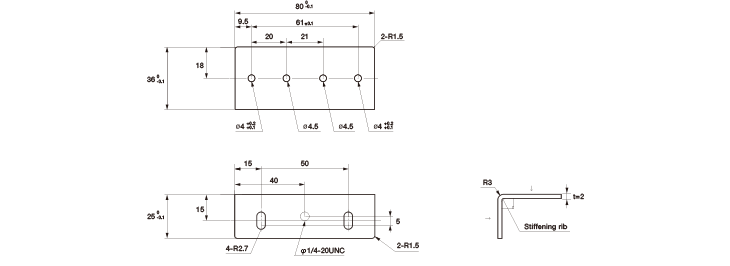

Mounting bracket

Controller

Model No. : MVS-DN-E

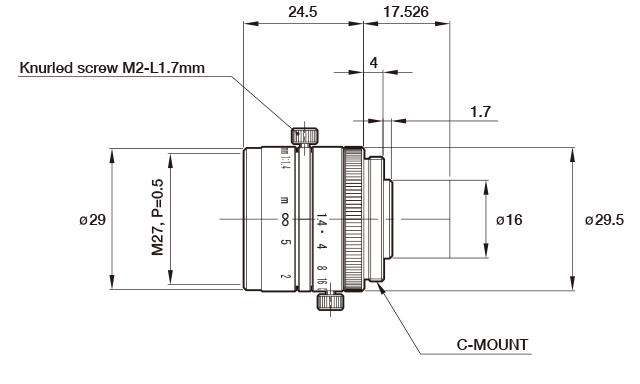

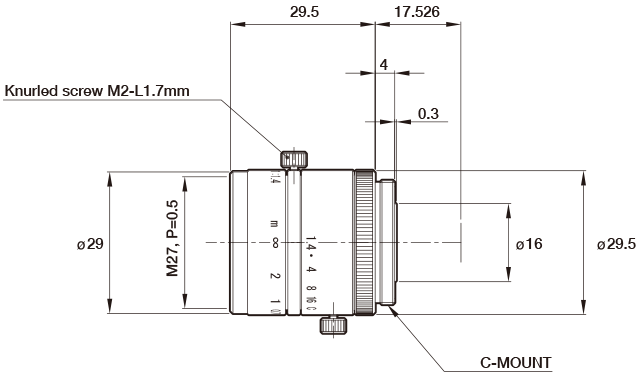

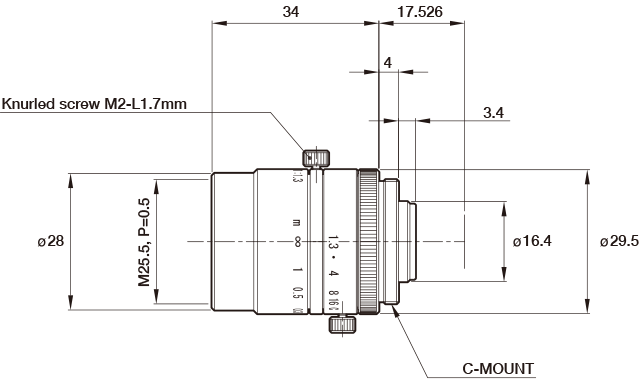

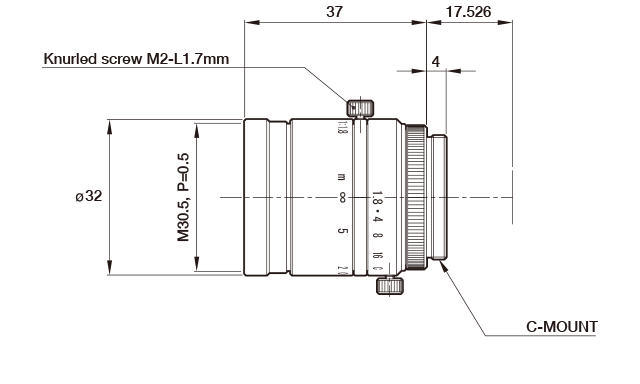

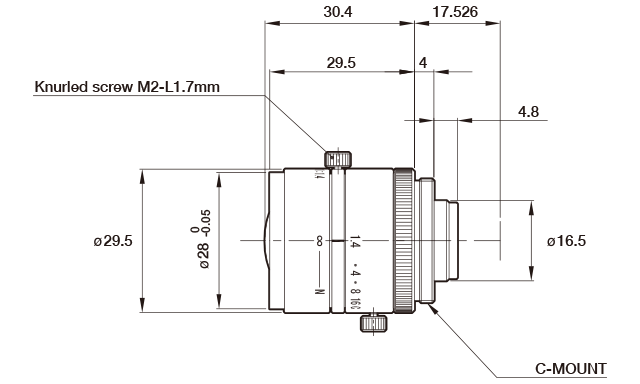

CCTV Lens (C mount)

• Model No. : FASV-03514V

  Focal Length : 3.5mm



• Model No. : FASV-0 813V

  Focal Length : 8mm



• Model No. : FASV-1214V

  Focal Length : 12mm



• Model No. : FASV-1614V

  Focal Length : 16mm



• Model No. : FASV-2514V

  Focal Length : 25mm



• Model No. : FASV-5018V

  Focal Length : 50mm

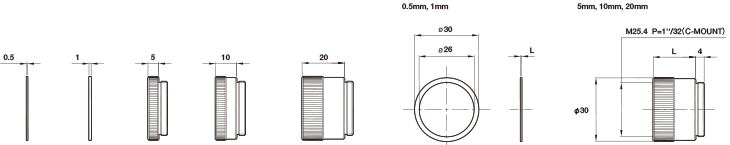

Extension ring set

Model No. : FASV-EXR-LT2

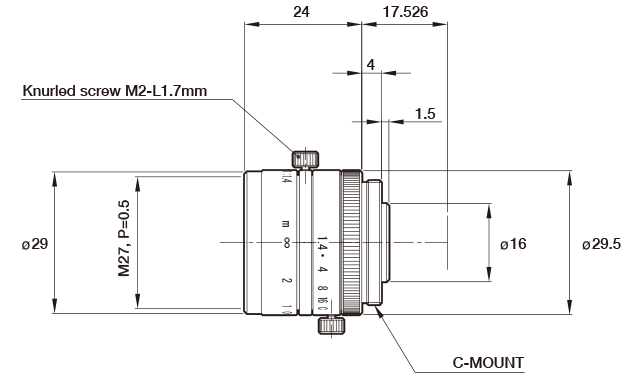

Macro Lens for Mega-pixel (C mount)

• Model No. : FASV-LDA4

  Focal Length : 4mm



• Model No. : FASV-LDA6.5

  Foc al Length : 6.5mm



• Model No. : FASV-LDA10

  Focal Length : 10mm



• Model No. : FASV-LDA20

  Foc al Length : 20mm



• Model No. : FASV-LDA30

  Focal Length : 30mm



• Model No. : FASV-LDA50

  Foc al Length : 50mm

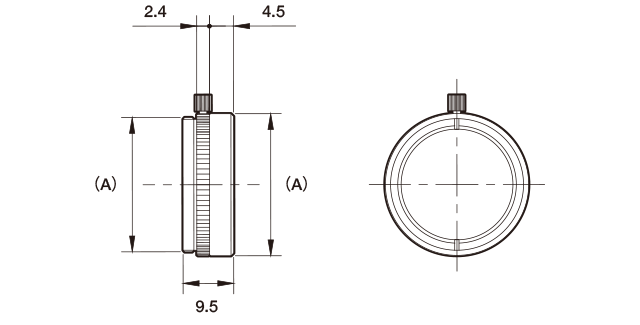

Polarizing filter

• Model No. : FASV-PL255-RS

  (A) size : M25.5 P0.5

  Model No. : FASV-PL270-RS

  (A) size : M27 P0.5

  Model No. : FASV-PL305-RS

  (A) size : M30.5 P0.5

•

IR cut filters

• Model No. : FASV-IR270

  (A) size : M27 P0.5

  Model No. : FASV-IR305

  (A) size : M30.5 P0.5

•

External light

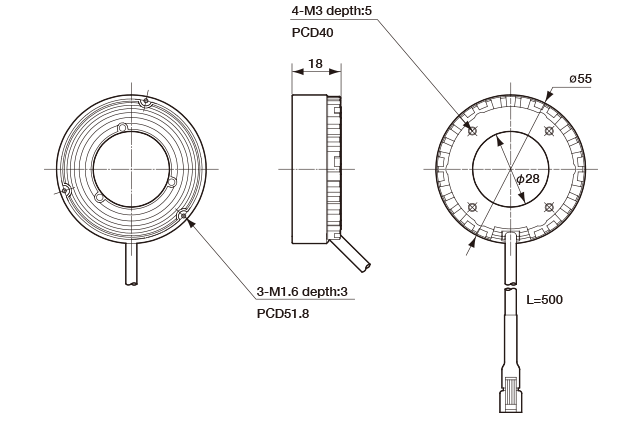

• Model No. : OPR-S55-28W

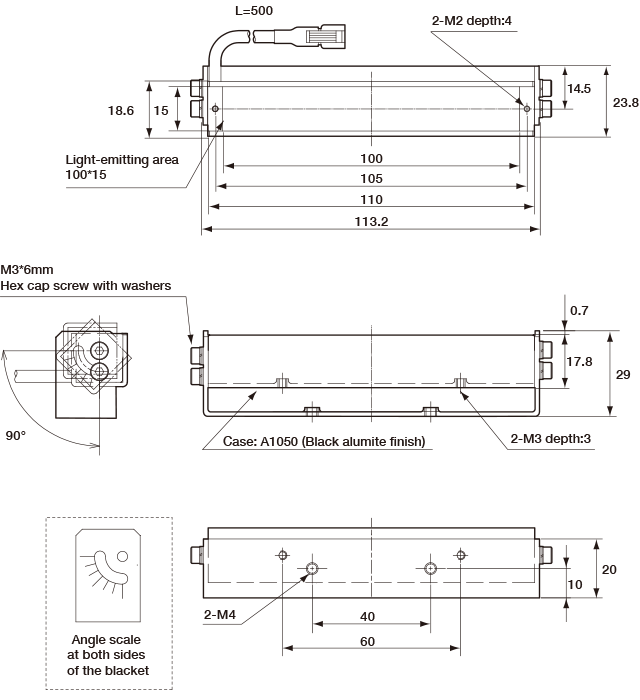

• Model No. : OPB-10015W2-B (with bracket installed

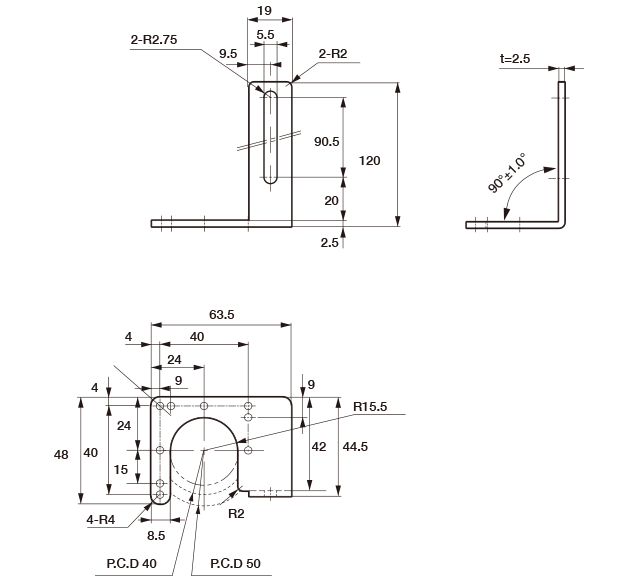

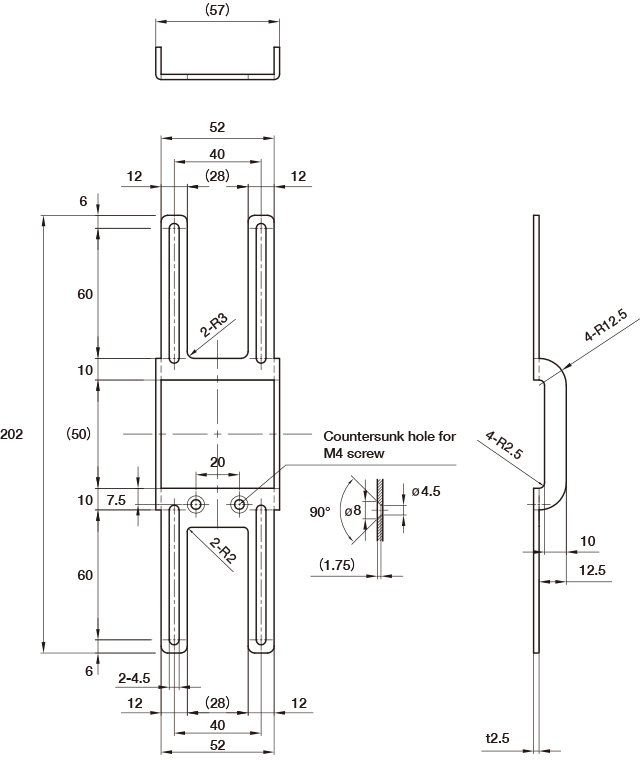

Mounting bracket for light

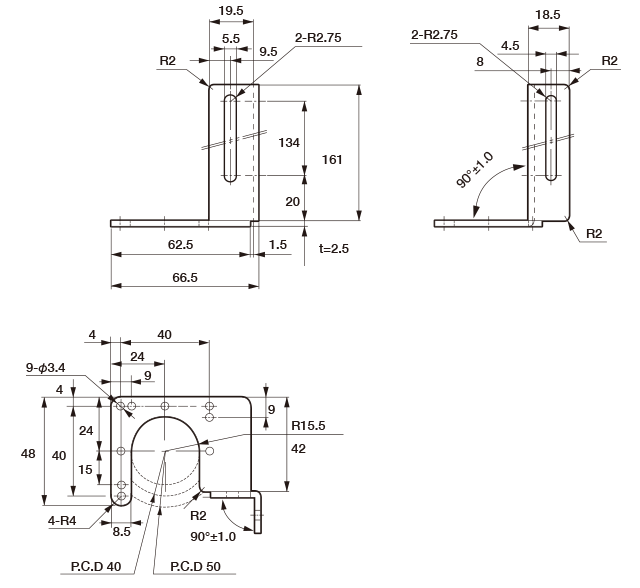

Mounting bracket for OPR-S55-28W

• Model No. : BKT-MVS-OPR



• Model No. : BKTS-MVS-OPR

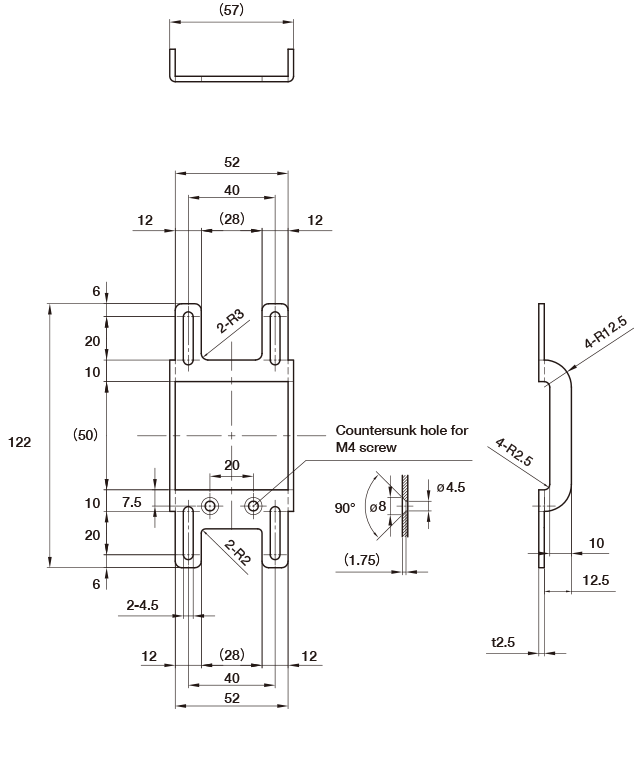

• Model No. : BKT-MVS-OPDB-01

  Mounting bracket for OPB-5015W2-B/OPB-10015W2-B/OPB-15015W2-B



• Model No. : BKT-MVS-OPDB-01-20

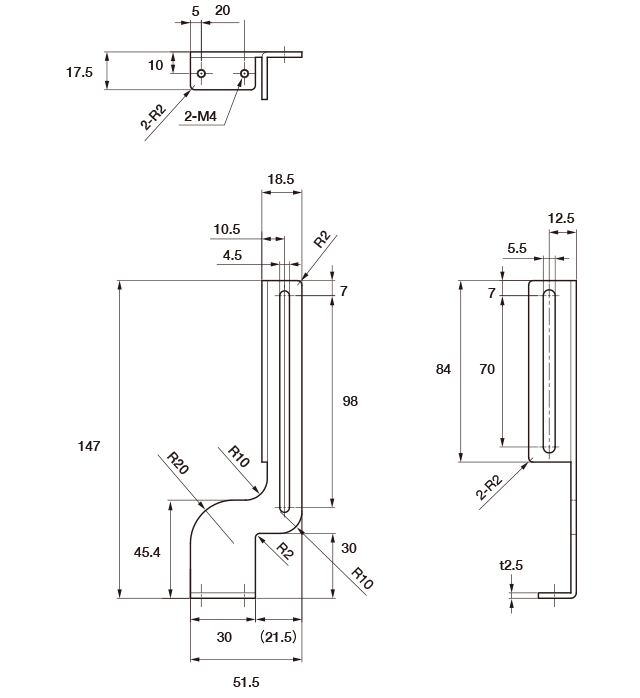

• Model No. : BKT-MVS-OPDB-02



• BK T-MVS-OPDB-01 and BKT-MVS-OPDB-02 (Example)
