Accessories

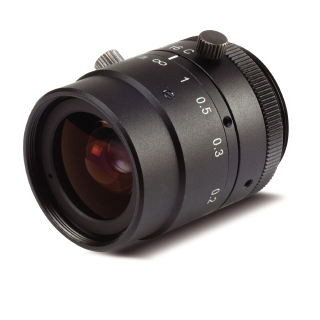

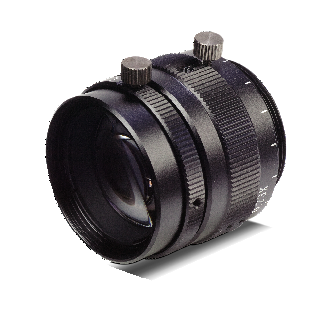

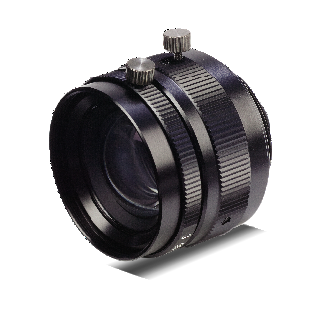

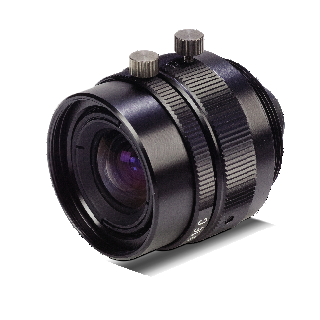

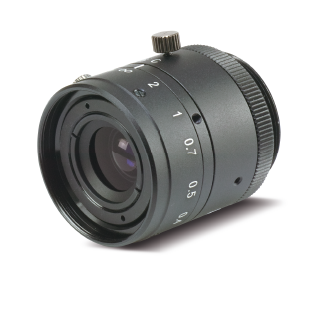

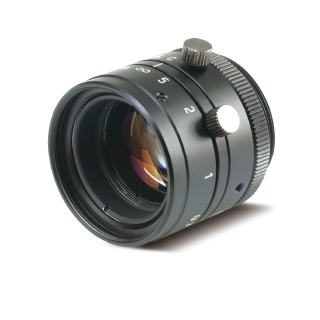

CCTV Lens (C mount)

•

  FASV-03514V

  Focal Length : 3.5mm
  F No. : F1.4
  Filter size : -

•

  FASV-0813V

  Focal Length : 8mm
  F No. : F1.3
  Filter size : M27 P0.5

•

  FASV-1214V

  Focal Length : 12mm
  F No. : F1.4
  Filter size : M27 P0.5

•

  FASV-1614V

  Focal Length : 16mm
  F No. : F1.4
  Filter size : M27 P0.5

•

  FASV-2514V

  Focal Length : 25mm
  F No. : F1.4
  Filter size : M27 P0.5

•

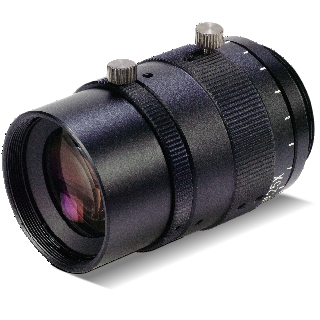

  FASV-5018V

  Focal Length : 50mm
  F No. : F1.8
  Filter size : M30.5 P0.5

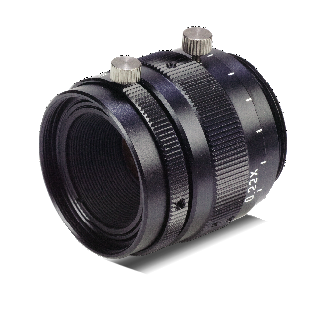

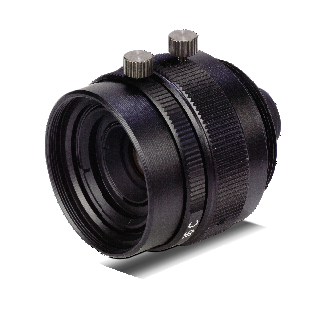

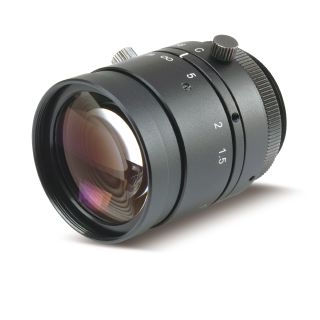

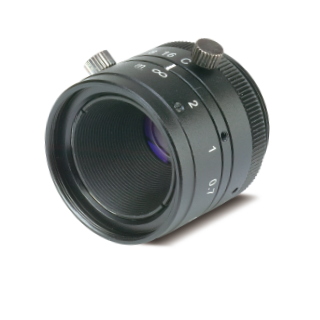

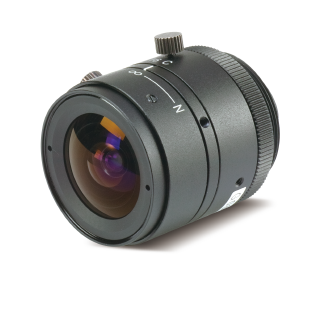

Macro Lens for Mega-pixel (C mount)　　The item image on the website is of a sample.

•

  FASV-LDA4

  Focal Length : 4mm
  F No. : F4.16
  Filter size : M27 P0.5

•

  FASV-LDA6.5

  Focal Length : 6.5mm
  F No. : F6.51
  Filter size : M27 P0.5

•

  FASV-LDA10

  Focal Length : 10mm
  F No. : F10.27
  Filter size : M27 P0.5

•

  FASV-LDA20

  Focal Length : 20mm
  F No. : F20.74
  Filter size : M27 P0.5

•

  FASV-LDA30

  Focal Length : 30mm
  F No. : F30.01
  Filter size : M27 P0.5

•

  FASV-LDA50

  Focal Length : 50mm
  F No. : F48.46
  Filter size : M30.5 P0.5

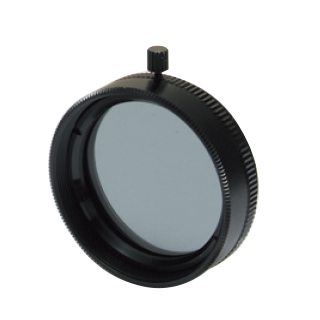

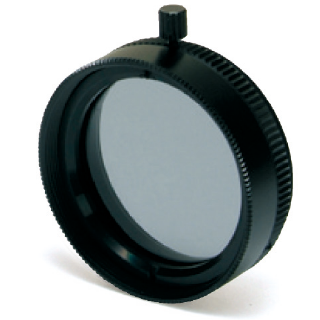

Polarizing filter

•

  FASV-PL255-RS

  size : M25.5 P0.5

•

  FASV-PL270-RS

  size : M27 P0.5

•

  FASV-PL305-RS

  size : M30.5 P0.5

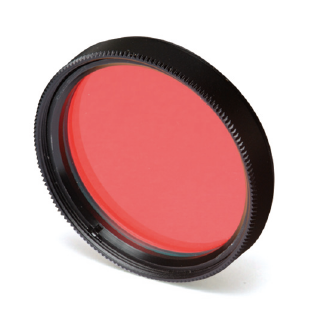

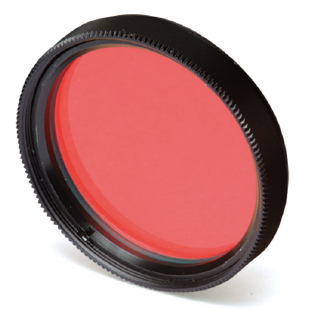

IR cut filters

•

  FASV-IR270

  size : M27 P0.5

•

  FASV-IR305

  size : M30.5 P0.5

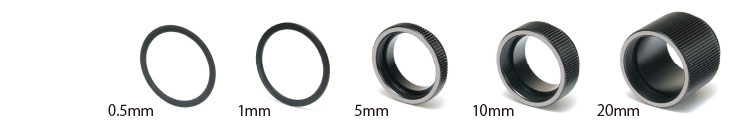

Extension ring set

•

  FASV-EXR-LT2

  5 piece set

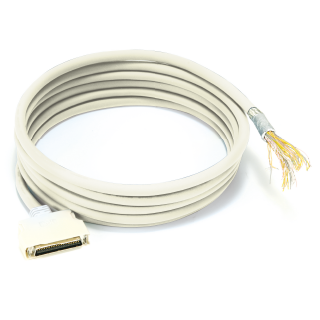

I/O Connector cable

•

  MVS-C3I0

  3m IEEE1284 half pitch 50p

Touch panel protective sheet

• MVS-TP

External light

•

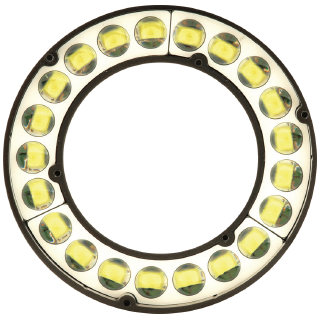

  OPR-S55-28W

  Method : Direct ring
  Spec : White LED/DC12V, 5.1W
  Cable : 500mm

•

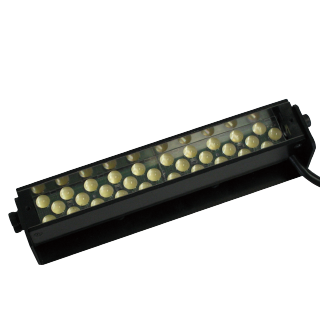

  OPB-5015W2-B
  OPB-10015W2-B
  OPB-15015W2-B

  Method : Direct bar
  Spec : White LED/bracket installed
  DC12V, 5.1W
  Cable : 500mm

Filters for light

• PL-OPR-S55-28

  Polarizing filter for OPR-S55-28

  DF80-OPR-S55-28

  Diffuse filter (80%) for OPR-S55-28

• PL-OPB-5015

  Polarizing filter for OPB-5015W2-B

  DF80-OPB-5015

  Diffuse filter (80%) for OPB-5015W2-B

  DF-OPB-5015

  Diffuse filter (60%) for OPB-5015W2-B

• PL-OPB-10015

  Polarizing filter for OPB-10015W2-B

  DF80-OPB-10015

  Diffuse filter (80%) for OPB-10015W2-B

  DF-OPB-10015

  Diffuse filter (60%) for OPB-10015W2-B

• PL-OPB-15015

  Polarizing filter for OPB-15015W2-B

  DF80-OPB-15015

  Diffuse filter (80%) for OPB-15015W2-B

  DF-OPB-15015

  Diffuse filter (60%) for OPB-15015W2-B

Light holder

• OPAU-150A

  Mounting bracket accessory for use with OPR-S55-28W

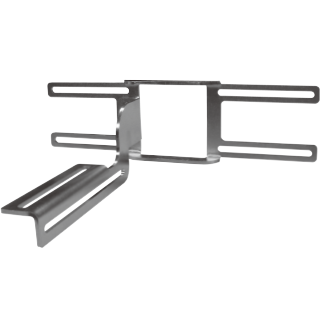

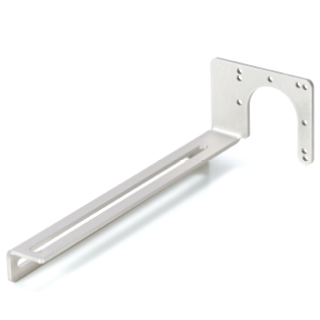

Mounting bracket for light

•

  BKT-MVS-OPR

  Mounting bracket for
  OPR-S55-28W

•

  BKT-MVS-OPDB-01
  BKT-MVS-OPDB-01-20
  BKT-MVS-OPDB-02

  Mounting bracket for
  OPB-5015W2-B/ OPB-10015W2-B/ OPB-15015W2-B

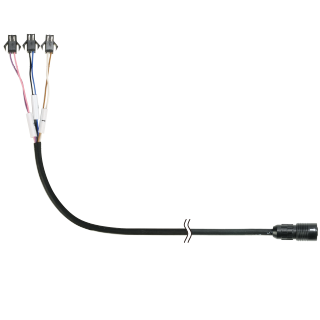

Cable for light

•

  MVS-LC05

  Controller to lighting connection cable,
  500mm length







  OP-CB1-2

  2m Extension cable for light

  OP-CB1-3

  3m Extension cable for light

  OP-CB1-5

  5m Extension cable for light

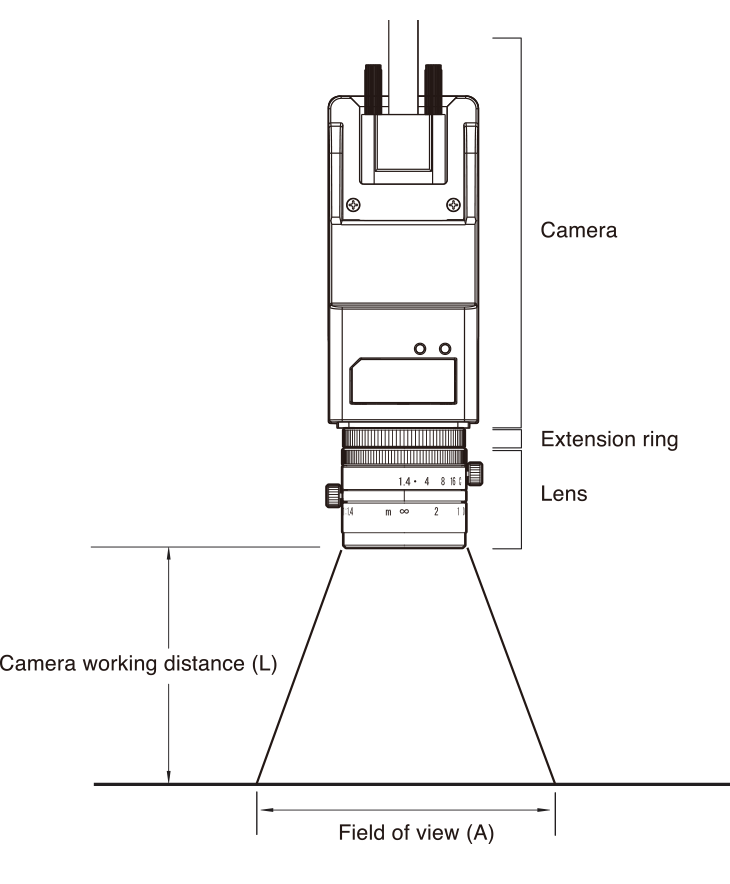

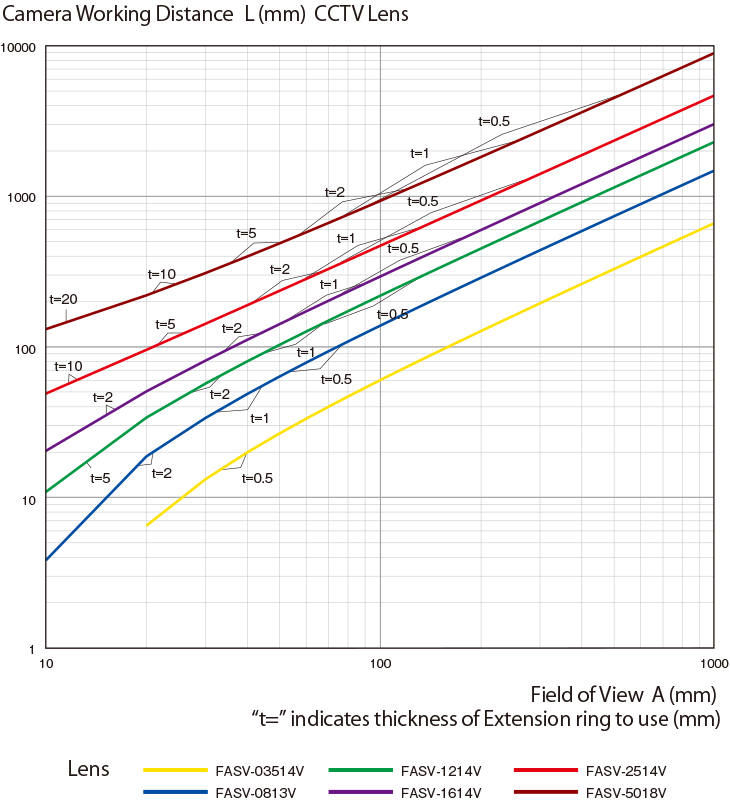

Working Distance
